Introduction

1 Introduction

1.1 Purpose of the Manual

® ®
The VLT CANopen Programming Guide provides
information about configuring the system, controlling the
frequency converter, accessing parameters, programming,
and troubleshooting.
The programming guide is intended for use by qualified
personnel who are familiar with the VLT
converter, with CANopen technology, and with the PC or
PLC that is used as a master in the system.
Read the instructions before programming and follow the
procedures in this manual.
®
CANopen is a registered trademark for CAN IN
AUTOMATION international users and manufacturers group
e. V.
®
VLT is a registered trademark.

1.2 Additional Resources

Additional documentation available for the product:
•
®
VLT Midi Drive FC 280 Operating Guide provides
the necessary information for getting the
frequency converter up and running.
•
®
VLT Midi Drive FC 280 Design Guide provides
detailed information about capabilities and
functionality to design motor control systems.
•
®
VLT Midi Drive FC 280 Programming Guide
provides greater detail on working with
parameters and many application examples.
•
®
VLT CANopen Programming Guide provides
information about configuring the system,
controlling the frequency converter, accessing
parameters, programming, troubleshooting, and
some typical application examples.
•
®
VLT Midi Drive FC 280 Control Cassettes Instal-
lation Instruction describes how to install a control
cassette.
Supplementary publications and manuals are available
from Danfoss. See vlt-drives.danfoss.com/Support/Technical-
Documentation/.

1.3 Document and Software Version

This manual is regularly reviewed and updated. All
suggestions for improvement are welcome. Table 1.1 shows
the document version and the corresponding software
version.
MG07E102
Programming Guide
MG07E1xx
Table 1.1 Document and Software Version

1.4 Product Overview

This programming guide relates to the CANopen interface.
®
frequency
CANopen is a low-level network that standardizes
communications between industrial devices (sensors, limit
switches, motor controls) and high-level devices
(controllers). CANopen follows the open systems intercon-
nection (OSI) model and is based on CAN technology for
media access control and physical signaling.
Configure CANopen systems to operate in a master/slave
or a distributed control architecture using peer-to-peer
communication. Up to 127 nodes in a multi-drop network
topology are supported. Nodes can be removed or
inserted without powering down the network.
Each node on the network has its own unique node ID to
distinguish it on the network. The access control is based
on the carrier sense multiple access/collision avoidance
(CSMA/CA) principle, meaning that all nodes may have
access to the network at the same time. When 2 nodes
attempt to get control of the network bus simultaneously,
the CAN protocol resolves the issue by arbitration. This
allows to avoid collisions on the network.
CANopen defines device profiles for devices belonging to
specific classes. For other devices, define a custom class to
make it CANopen compatible. All of the above enhances
the interchangeability and interoperability of the network.
R
T
Drop lines 1
RT=Termination resistors

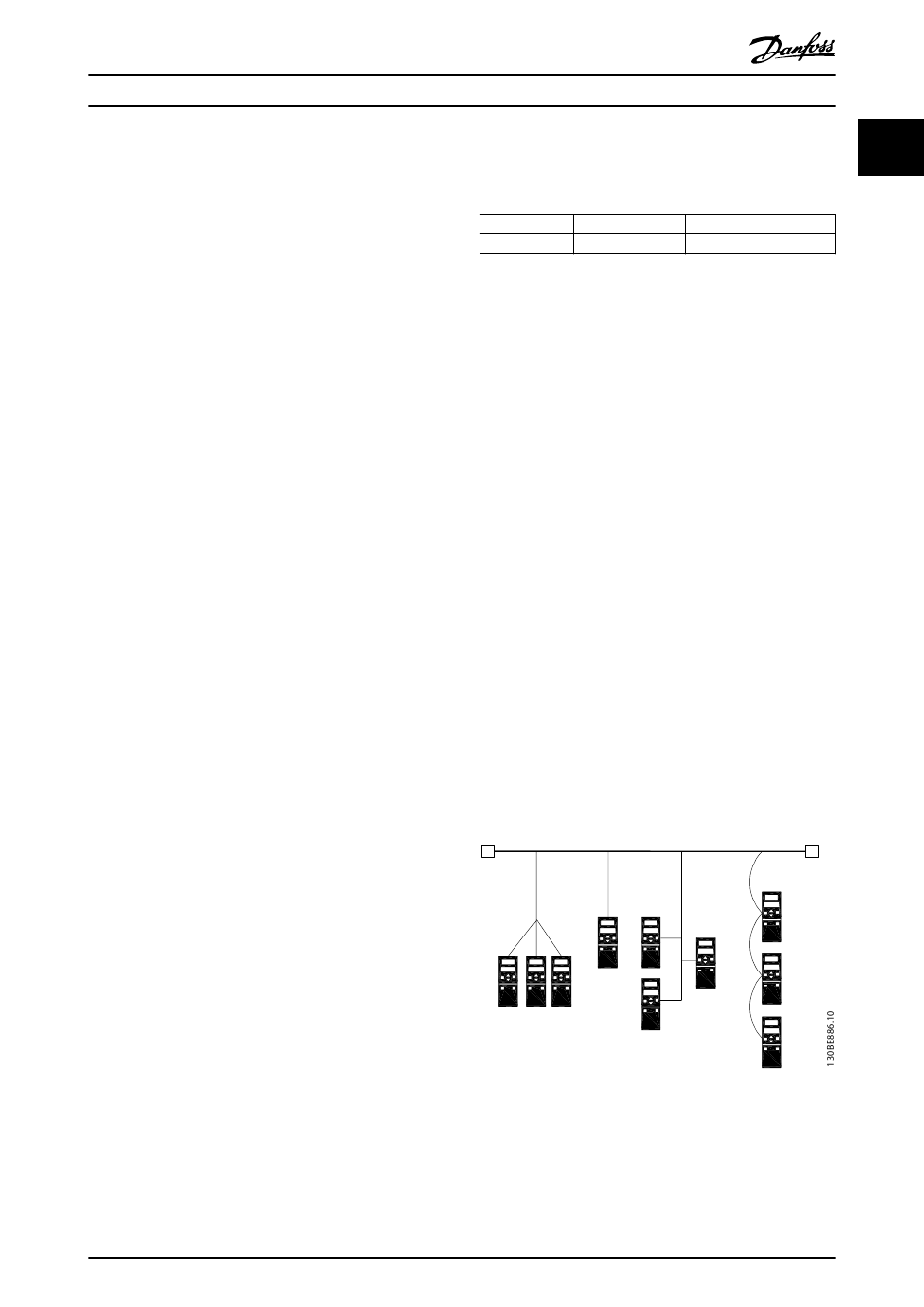

Illustration 1.1 Topology
Danfoss A/S © 02/2016 All rights reserved.
Edition Remarks
New manual
Trunk line
1 1
Software version
1.1 or later
R
T
1
1
3
1 1
