Specifications
7.12.3 VLT
The MCB 113 extends the I/O of the frequency converter
with:
•
7 digital inputs.
•
2 analog outputs.
•
4 SPDT relays.
The extended I/O increases flexibility and enables
compliance with the German NAMUR NE37 recommen-
dations.
The MCB 113 is a standard C1 option and is automatically
detected after mounting.
7 7
1 2 3 4 1 2
X45/ X48/

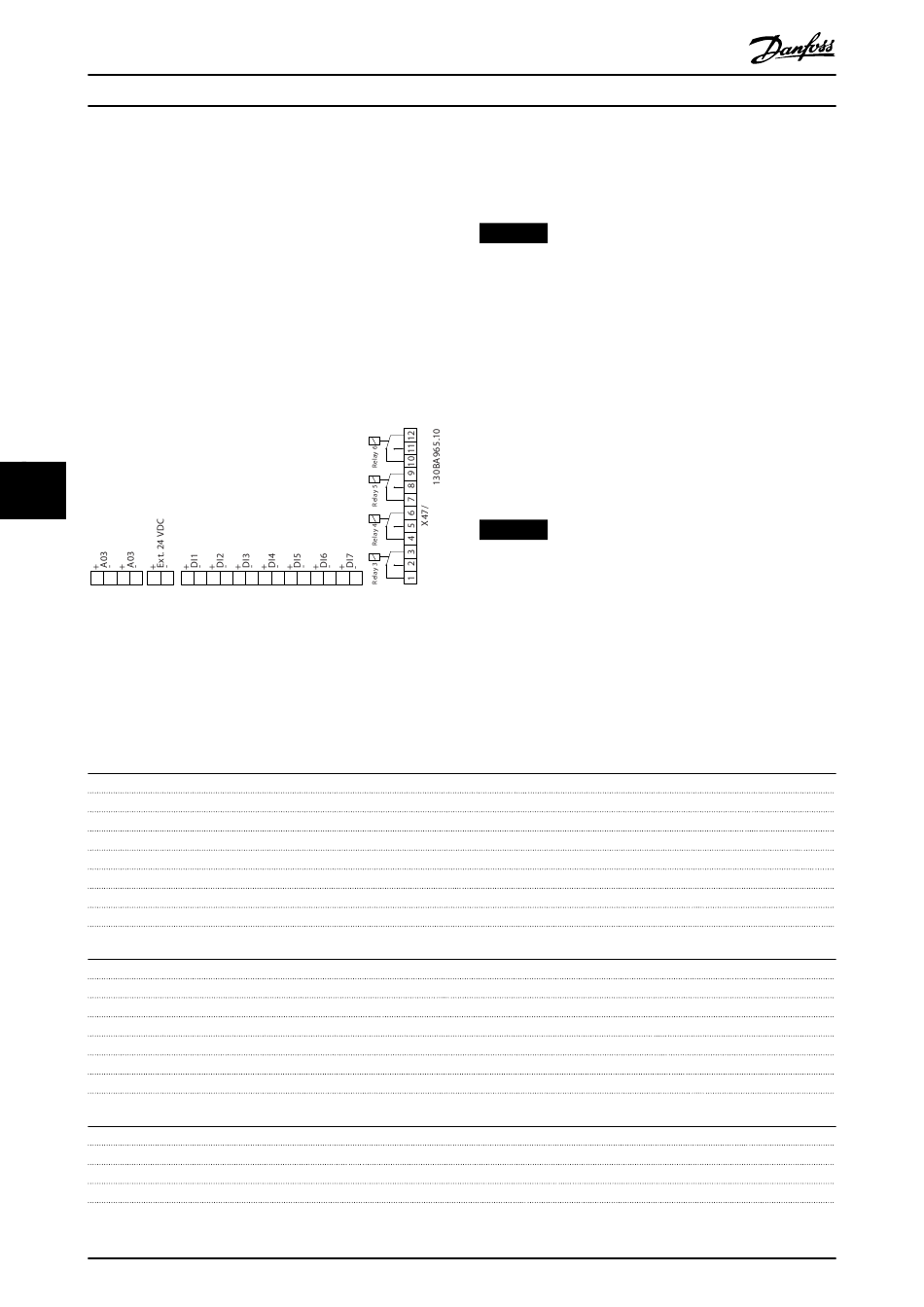

Illustration 7.11 Electrical Connections of MCB 113
To ensure galvanic isolation between the frequency
converter and the option card, connect the MCB 113 to an
Electrical Data
Relays
Numbers
Load at 250 V AC/30 V DC
Load at 250 V AC/30 V DC with COSφ = 0.4
Overvoltage category (contact-earth)
Overvoltage category (contact-contact)
Combination of 250 V and 24 V signals
Maximum throughput delay
Isolated from ground/chassis for use on IT mains systems
Digital Inputs
Numbers
Range
Mode
Input impedance
Low trigger level
High trigger level
Maximum throughput delay
Analog outputs
Numbers
Range
Resolution
Linearity
138
®
Extended Relay Card MCB 113
1 2 3 4 5 6 7 8 9 10 11 12 13 14
X46/
Danfoss A/S © 08/2015 All rights reserved.
®
VLT Refrigeration Drive FC 103
external 24 V on X48. When galvanic isolation is not
required, the option card can be supplied through internal
24 V from the frequency converter.
NOTICE
To connect both 24 V signals and high-voltage signals in
the relays, ensure that there is one unused relay
between the 24 V signal and the high-voltage signal.
To set up the MCB 113, use parameter groups:
•
•
•
•
•
•
NOTICE
In parameter group 5-4* Relay,
•
•
•
•
5-1* Digital Input.
6-7* Analog Output 3.
6-8* Analog Output 4.
14-8* Options.
5-4* Relays.
16-6* Inputs and outputs.
Array [2] is relay 3.
Array [3] is relay 4.
Array [4] is relay 5.
Array [5] is relay 6.
Possible with one unused relay between
4 SPDT
8 A
3.5 A
III
II
10 ms
7
0–24 V
PNP/NPN
4 kW
6.4 V
17 V
10 ms
2
0/4 -20 mA
11 bit
<0.2%
