3.2

Assembly instructions

Before starting assembly, look carefully through the individual assembly steps shown and assemble
the equipment in the order indicated.

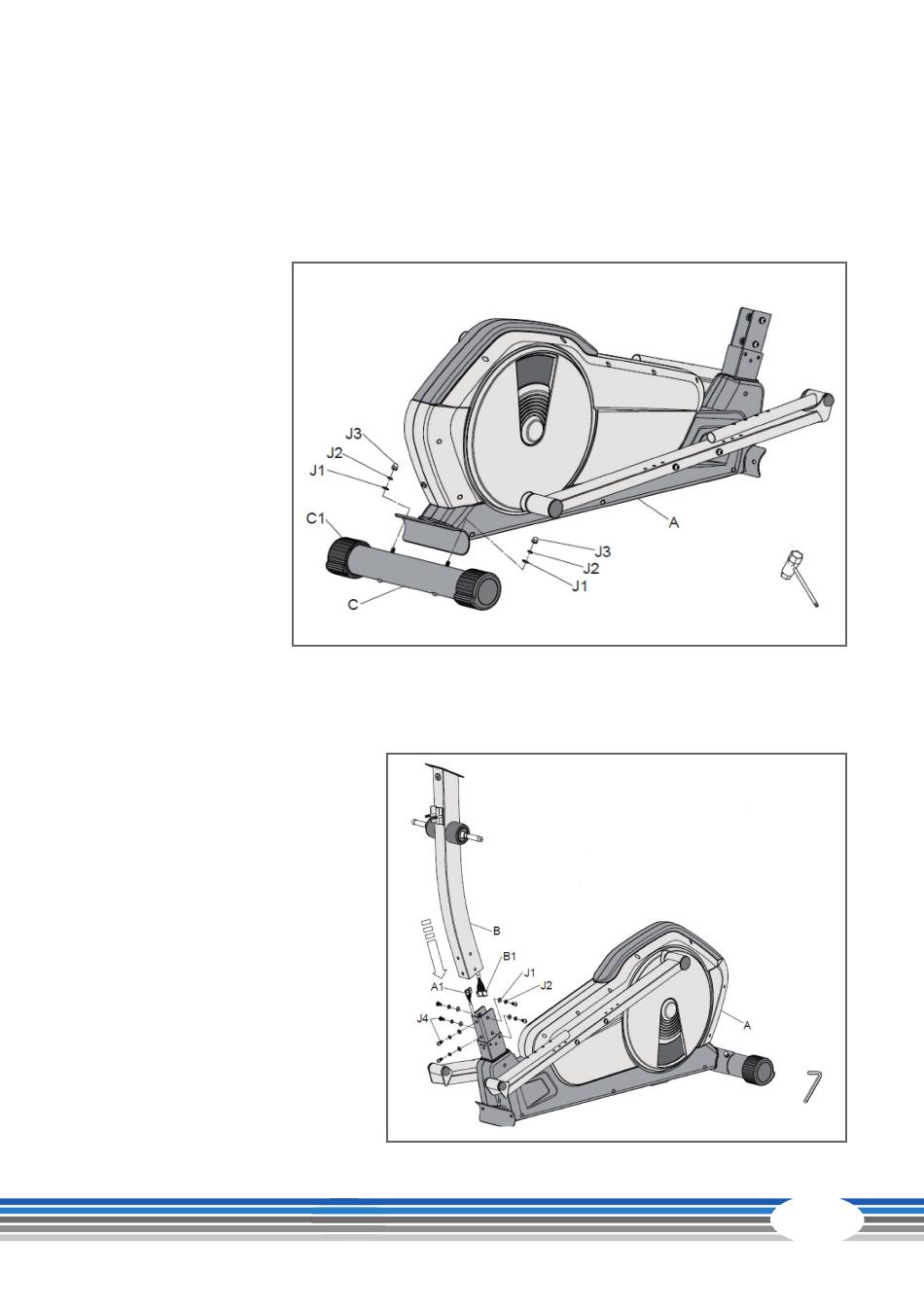

Step 1: Assembly of rear base foot
First remove the washers
(J1), spring washers (J2),
and nuts (J3) from the
rear base (C). Mount
the rear base (C) on the
bracket of the frame (A)
with the pre-mounted
screws and the previously
loosened washers (J1),
spring washers (J2) and
nuts (J3).
Step 2: Assembly - console mast
First remove the screws (J4), spring
washers (J2), and washers (J1) from
the frame (A). Then connect the
sensor cable (A1) with the sensor
cable (B1). Mount the console mast
(B) on the frame (A) with screws (J4),
spring washers (J2), and washers (J1).
Note: When pushing together the
parts, make sure that the cables are
not stuck.
11
