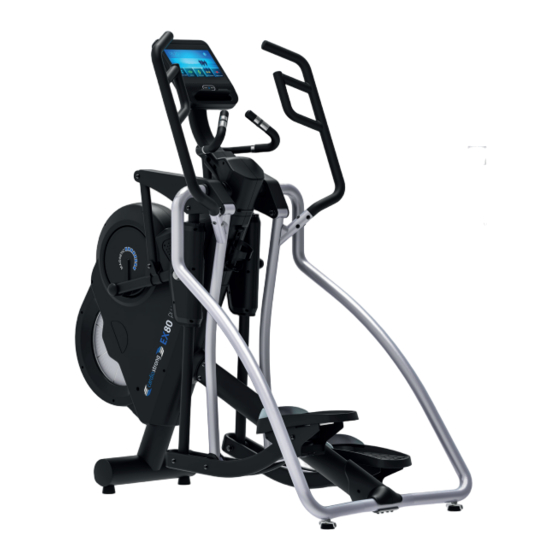

CARDIOSTRONG EX80 TOUCH Assembly And Operating Instructions Manual
For more information, please visit cardiostrong.com, sport-tiedje.com
Hide thumbs
Also See for EX80 TOUCH:
- Assembly and operating instructions manual (56 pages) ,
- Assembly and operating instructions manual (52 pages)
Subscribe to Our Youtube Channel
Related Manuals for CARDIOSTRONG EX80 TOUCH
Summary of Contents for CARDIOSTRONG EX80 TOUCH
- Page 1 Assembly and Operating Instructions max. 150 kg ~ 90 Min. 110 kg L 159 | W 85 | H 163 CSTEX80T.03.02 Art. No. CST-EX80-T-3 Crosstrainer EX80 TOUCH...
- Page 2 EX80 TOUCH...
- Page 3 Train at home no matter what the weather or time of the day. cardiostrong fitness equipment offers training programmes and a variety of equipment for all training levels and all training goals. Further information can be found at www.sport-tiedje.com or www.cardiostrong.de.
- Page 4 This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. EX80 TOUCH...
-
Page 5: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console Display Button Functions Switching On and Initial Settings Programmes 3.4.1 Quick-Start Programme 3.4.2 Manual Programme 3.4.3 Pre-Set Programmes 3.4.4 Watt Programme 3.4.5 Heart Rate Controlled Programmes Recovery Function Training Record... - Page 6 RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT EX80 TOUCH...
-
Page 7: General Information
GENERAL INFORMATION Check your TFT console regularly for possible software updates. If available, make sure to carry out the updates. Technical Data TFT display of speed in km/h training time in min training distance in km cadence (rotations per minute) calories burnt in kcal heart rate (when using the hand sensors or a chest strap) Watt... -
Page 8: Personal Safety
Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons. ࣑ ATTENTION Do not insert any objects of any kind into the openings of the device. EX80 TOUCH... -
Page 9: Electrical Safety
Electrical Safety DANGER ⚠ In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠... -
Page 10: Set-Up Place
(over 70%) like swimming pools. A floor protective mat/equipment underlay can help to protect high-quality floor coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness. EX80 TOUCH... -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 12: Scope Of Delivery
In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠ If parts of the scope of delivery are missing or damaged, the assembly must not be carried out. EX80 TOUCH... -
Page 13: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g. - Page 14 Remove the two pre-assembled screws (F5) from the main frame (A). Remove the two pre-assembled screws (F5) from the central supporting tube (F1). Mount the central supporting tube (F1) to the main frame (A) using the previously removed screws (F5) Loosely tighten the screws. EX80 TOUCH...
- Page 15 Step 3: Assembly of the Right Side Connecting Tube Mount the right side connecting tube (C2) to the main frame (A) using a screw (P4), see view A. Mount the right side connecting tube (C2) along with the iron bracket (F2) to the bottom of the main frame (A) using two screws (J2), see view B.
- Page 16 Tighten all screws from the steps before. Remove the two pre-assembled screws (F6) from the central supporting tube (F1). Mount the joint covers (F3 & F4) to the central supporting tube (F1) using the previously removed screws (F6). EX80 TOUCH...
- Page 17 Step 5: Assembly of the Pedal Supporting Tubes Mount the right pedal supporting tube (B2) to the top of the main frame (A) using one screw (J3), one washer (J9) and one nut (J4), see view C. Mount the right pedal supporting tube (B2) to the bottom of the main frame (A) using one screw (J5), one washer (J9) and one nut (J4), see view D.
- Page 18 Remove the three pre-assembled screws (J10 & J11) from the left handle bar (E1) , see view F. Mount the left handle bar (E1) to the main frame (A) using the previously removed screws (J10 & J11). Repeat the steps for the other side. View F EX80 TOUCH...
- Page 19 Step 7: Assembly of the Console Supporting Tube and the Bottle Holder ࣑ ATTENTION Pay attention to not pinch the cables during the next step. Connect the cable of the console supporting tube (D1) to the cable of the main frame (A1) until you hear a click sound.
- Page 20 Lift the equipment on the desired side and rotate the setting screws under the main frame. Rotate the screws clockwise in order to remove them and to raise the equipment. Rotate them counterclockwise in order to lower the equipment. EX80 TOUCH...
- Page 21 Step 10: Connecting the Equipment to the Mains Supply ࣑ ATTENTION The equipment must not be connected to a multiple socket, otherwise it cannot be guaranteed that the equipment will be supplied with sufficient power. Technical errors can result. Plug the cable (I) into the socket on the main frame (A). Plug the power plug into a wall outlet that complies with the instructions in the chapter on electrical safety.
- Page 22 Always adjust the stride length at the same length on both sides. Loosen and pull the pin and adjust the desired stride length. Release the pin at the desired height and retighten the pin. Repeat the steps for the other side. 66cm 26” 46cm 18” 46cm 66cm EX80 TOUCH...
-
Page 23: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. Console Display USB Port 3.5 mm audio jack Display range: 0:00–99:59 TIME Setting range: 0–99 (Minuten) SPEED... -
Page 24: Button Functions
10. To update the software, tap on “Update“ for TFT. NOTICE The device must not be used or switched off during the update. Check at regular intervals whether another update is available and perform it as described above. EX80 TOUCH... - Page 25 Open the factory settings. Here you can set the following functions: WIFI Screen brightness Volume Language Unit (metric or imperial) Update software and app updates ࣑ ATTENTION The console of this fitness device uses software that is perfectly adapted to the equipment. Please do not make any unauthorised modifications, such as the installation of external apps.
-
Page 26: Programmes
The programme starts. To increase or decrease resistance, tap the arrows. To pause the programme, tap pause. To resume the programme, tap continue. To end the programme and return to the main menu, tap home. EX80 TOUCH... -
Page 27: Manual Programme
3.4.2 Manual Programme There are several setting options for the manual programme. You can decide whether you want to train with one or more values. To select the manual programme, tap “Manual“ in the main menu. Select one of the user profiles (U0–U4). Set the desired values for time, distance and/or calories. -
Page 28: Watt Programme
3.1. If you have selected TAG, now set your individual target value. Set the desired training time. To start the programme, tap start. The programme starts. To increase or decrease resistance, tap the arrows. To pause the programme, tap pause. To resume the programme, tap continue. EX80 TOUCH... -
Page 29: Recovery Function
To end the programme before the set training time has elapsed and return to the main menu, tap home. Recovery Function After a completed workout, you can use the recovery function to test your recovery heart rate and thus your fitness level. To test your recovery heart rate, tap recovery after training. -
Page 30: Training Record
Where the calendar is coloured orange, a training session has been saved on that day. Tap on the corresponding day to view the more detailed training details. You can also delete the saved training data by tapping on the bin icon. EX80 TOUCH... -
Page 31: Multimedia And Software Updates
Multimedia and Software Updates ࣑ ATTENTION Check your TFT-console regularly for possible software updates. If available, make sure to carry out the updates soon. If the updates are not carried out over a longer period of time, this can lead to technical problems with the console. To make sure the pre-installed apps are working correctly, they must be updated regularly as well. -
Page 32: Retrieving Apps From The Main Menu
It may take a moment for the app to open. To continue your workout, tap the arrow on the left side of the screen and press the Quick Start button. The selected app now runs simultaneously with the running programme. EX80 TOUCH... -
Page 33: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 34: Troubleshooting, Care And Maintenance
Batteries empty work Contact your contract partner Check whether there is an update for the software (TFT) and carry it out. Software version not up to Software problems date If the problems persist, contact your contract partner. EX80 TOUCH... - Page 35 Eliminate sources of interference (e.g. Sources of interference in mobile phone, WLAN, lawn mower the room and vacuum cleaner robot, etc..) unsuitable chest strap Use a suitable chest strap (see RECOMMENDED ACCESSORIES). Wrong position of chest No pulse display Reposition chest strap...
-
Page 36: Maintenance And Inspection Calendar
The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment. EX80 TOUCH... -
Page 37: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For elliptical cross trainers this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat or silicone spray to keep moving parts in good shape. -
Page 38: Ordering Spare Parts
It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: cardiostrong / crosstrainer Model Name: EX80 Touch Article Number: CST-EX80-T-3 EX80 TOUCH... -
Page 39: Parts List
Parts List Name Qty. Specification Qty. Main Frame Flat Key Sensor Wire 1000mm Screw Connection Slice Turing Plate Motor Pressing Pipe A3-1 Screw Bearing 6003Zz Dc Wire 900mm C Clip Nut M12 Sensor Wire 100mm Washer M12 Sensor Wire Housing Axle Screw Bearing 6001Mrb... - Page 40 Small Chain Cover ( L ) Bush Small Chain Cover ( R ) Bearing 6201 zz Screw 5/32” * 3/4” C Clip Screw 5/35” * 1/2” Screw M8 X 40 A100 C Clip R40 Screw M12 X 133 EX80 TOUCH...
- Page 41 Bush Screw M8 X 16 Bearing 6003Zz Screw M8 X 60 Bush Bolt M12 X 73 Screw Nut M12 Pedal Reinforcement Strip Bolt M12 X 109 Screw Screw M5 Side Connecting Tube ( L ) Screw M8 X 20 Side Connecting Tube ( R ) Washer M12 Adjusted Nut Screw...
-
Page 42: Exploded Drawing
Exploded Drawing EX80 TOUCH... -
Page 44: Warranty
Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty. EX80 TOUCH... - Page 45 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 46: Contact
�� Öffnungszeiten �� Öffnungszeiten entnehmen entnehmen Sie unserer Sie unserer Homepage. Homepage. Please find a detailed overview including address and opening hours for all stores of the Sport-Tiedje Group in Germany and abroad on the following website: www.sport-tiedje.com/en/stores EX80 TOUCH... - Page 47 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store www.sport-tiedje.co.uk for home fitness equipment with currently over www.sport-tiedje.de/blog 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on...
- Page 48 Notes EX80 TOUCH...
- Page 49 Notes...
- Page 50 Notes EX80 TOUCH...
- Page 52 Crosstrainer EX80 TOUCH...
