Chapter 2: Jumpers and Connectors

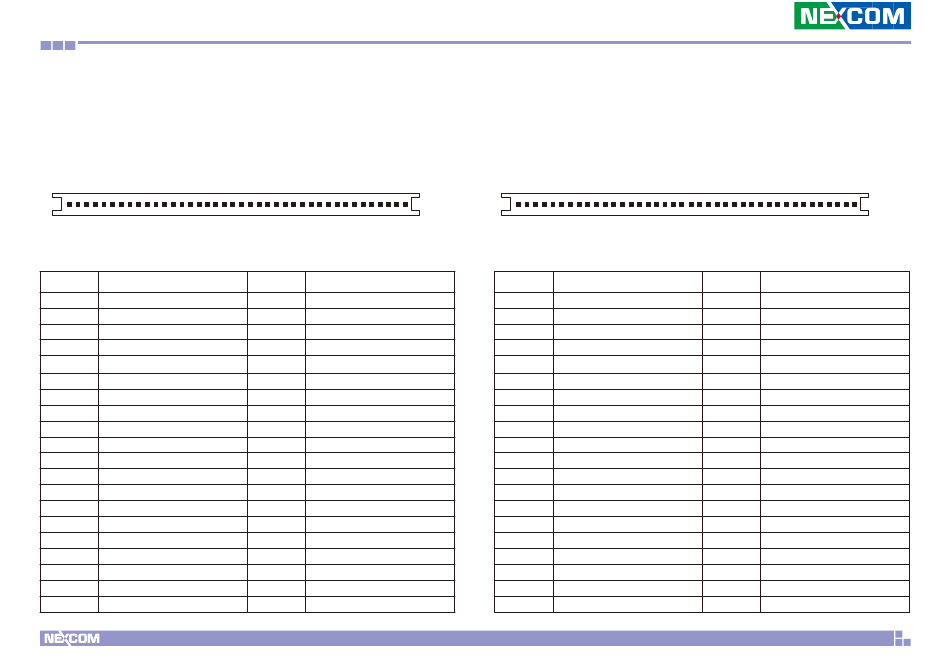

LVDS Connector

Connector type: 1x40 40-pin header
Connector location: LVDS
40
Pin Definition
1 LVDS0_D3+
3 LVDS0_D2+
5 LVDS0_D1+
7 LVDS0_D0+
9 LVDS1_D3+
11 LVDS1_D2+
13 LVDS1_D1+
15 LVDS1_D0+
17 GND
19 +V_PANEL
21 NC
23 GND
25 GND
27 LVDS0_CLK-
29 GND
31 SPC1
33 VCON
35 LVDS1_CLK-
37 +BLVCC
39 NC
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
1
Pin Definition
2 LVDS0_D3-
4 LVDS0_D2-
6 LVDS0_D1-
8 LVDS0_D0-
10 LVDS1_D3-
12 LVDS1_D2-
14 LVDS1_D1-
16 LVDS1_D0-
18 +V_PANEL
20 +V_PANEL
22 +3V
24 GND
26 LVDS0_CLK+
28 GND
30 GND
32 INV_ENABKL
34 LVDS1_CLK+
36 +BLVCC
38 +BLVCC
40 SPD1

Embedded DisplayPort

Connector type: 1x40 40-pin header
Connector location: EDP
1
Pin Definition
1 NC
3 eDP_TXN3_C
5 GND
7 eDP_TXP2_C
9 eDP_TXN1_C
11 GND
13 eDP_TXP0_C
15 eDP_AUXP_C
17 GND
19 +V_PANEL
21 +V_PANEL
23 GND
25 GND
27 eDP_HPD_RRR
29 GND
31 GND
33 BKLTCTL_R
35 NC
37 +BLVCC
39 +BLVCC
19
40
Pin Definition
2 GND
4 eDP_TXP3_C
6 eDP_TXN2_C
8 GND
10 eDP_TXP1_C
12 eDP_TXN0_C
14 GND
16 eDP_AUXN_C
18 +V_PANEL
20 +V_PANEL
22 NC
24 GND
26 GND
28 GND
30 GND
32 BKLTEN_R
34 NC
36 +BLVCC
38 +BLVCC
40 NC
