Chapter 2: Jumpers and Connectors

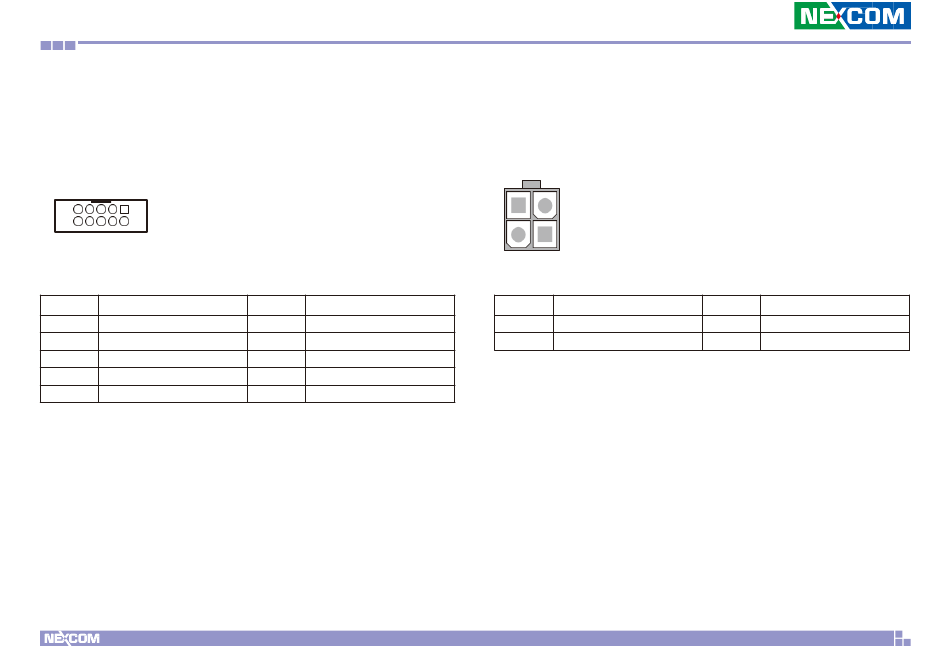

Serial Port Connector (COM2)

Connector type: 2x5 10-pin header
Connector location: COM2
9 1
10 2
Pin Definition
1 DCD
3 TXD
5 GND
7 RTS
9 RI1_F_VCC
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 RXD
4 DTR
6 DSR
8 CTS
10 NC

4-pin DC-In Power Connector

Connector type: 2x2 4-pin header
Connector location: EATX_PWR2
4 3
2 1
Pin Definition
1 GND
3 DC_IN
25
Pin Definition
2 GND
4 DC_IN
