Chapter 2: Jumpers and Connectors

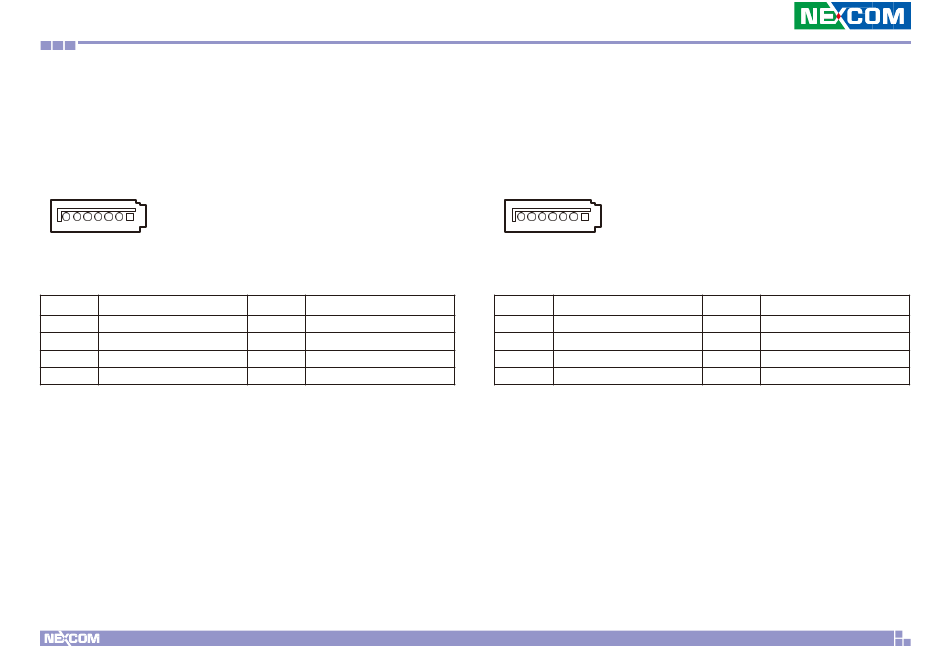

Serial ATA 6.0Gb/s Connector 1
Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180)
Connector location: SATA6G_1
7
1
Pin
Definition
1
GND
3
RSATA_TXN1
5
RSATA_RXN1
7
GND
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
RSATA_TXP1
4
GND
6
RSATA_RXP1
Serial ATA 6.0Gb/s Connector 2
Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180)
Connector location: SATA6G_2
7
1
Pin
Definition
1
GND
3
RSATA_TXN2
5
RSATA_RXN2
7
GND
21
Pin
Definition
2
RSATA_TXP2
4
GND
6
RSATA_RXP2
KPPC 1514B/1814B/2114B User Manual
