Chapter 2: Jumpers and Connectors

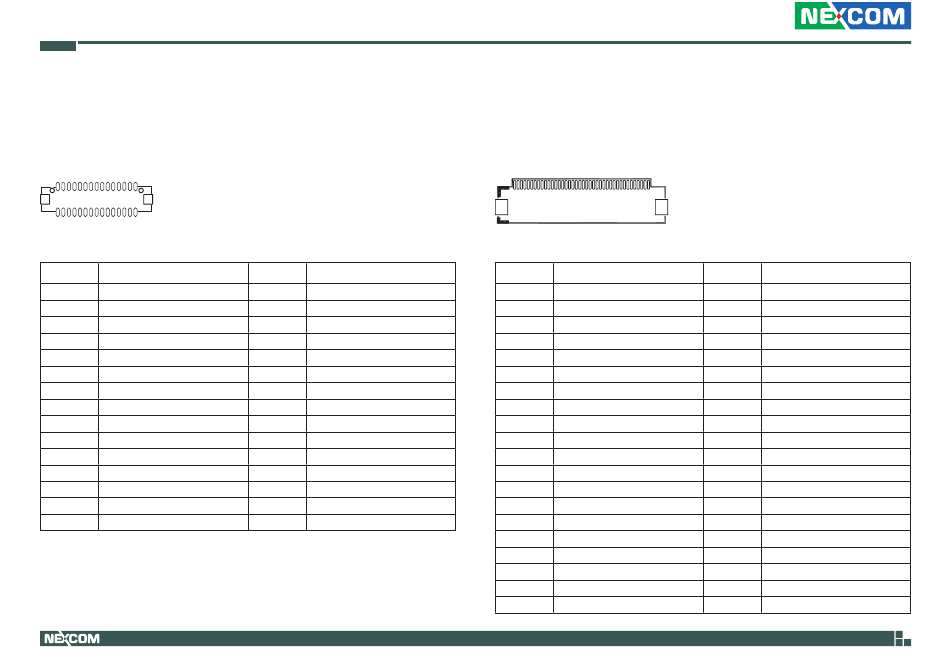

LVDS Panel Connector

Connector type: 2x10 20-pin header, 1.25mm pitch
Connector location: CN1
1 29
2 30
Pin Definition
1 LVDS_DAT4#
3 LVDS_DAT4
5 GND
7 LVDS_DAT5#
9 LVDS_DAT5
11 GND
13 LVDS_DAT6#
15 LVDS_DAT6
17 VCC_LCD
19 LVDS_DAT7#
21 LVDS_DAT7
23 VCC_LCD
25 GND
27 LVDS_CLK2#
29 LVDS_CLK2
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 LVDS_DAT0#
4 LVDS_DAT0
6 GND
8 LVDS_DAT1#
10 LVDS_DAT1
12 GND
14 LVDS_DAT2#
16 LVDS_DAT2
18 VCC_LCD
20 LVDS_CLK1#
22 LVDS_CLK1
24 VCC_LCD
26 GND
28 LVDS_DAT3#
30 LVDS_DAT3

LVDS Panel FPC Connector

Connector type: 1x40 40-pin header
Connector location: CN4
1 40
Pin Definition
1 VCOM
3 +3V3_VDD
5 RESET
7 GND
9 AX0+_P
11 AX1-_N
13 GND
15 AX2+_P
17 CLK_X-_N
19 GND
21 AX3+_P
23 NC
25 GND
27 NC
29 AVDD
31 LED-
33 L/R
35 VGL
37 NC
39 LED+
17
Pin Definition
2 +3V3_VDD
4 NC
6 STBYB
8 AX0-_N
10 GND
12 AX1+_P
14 AX2-_N
16 GND
18 CLK_X+_P
20 AX3-_N
22 GND
24 NC
26 NC
28 Bit select
30 GND
32 LED-
34 U/D
36 NC
38 VGH
40 LED+
