Chapter 2: Jumpers and Connectors

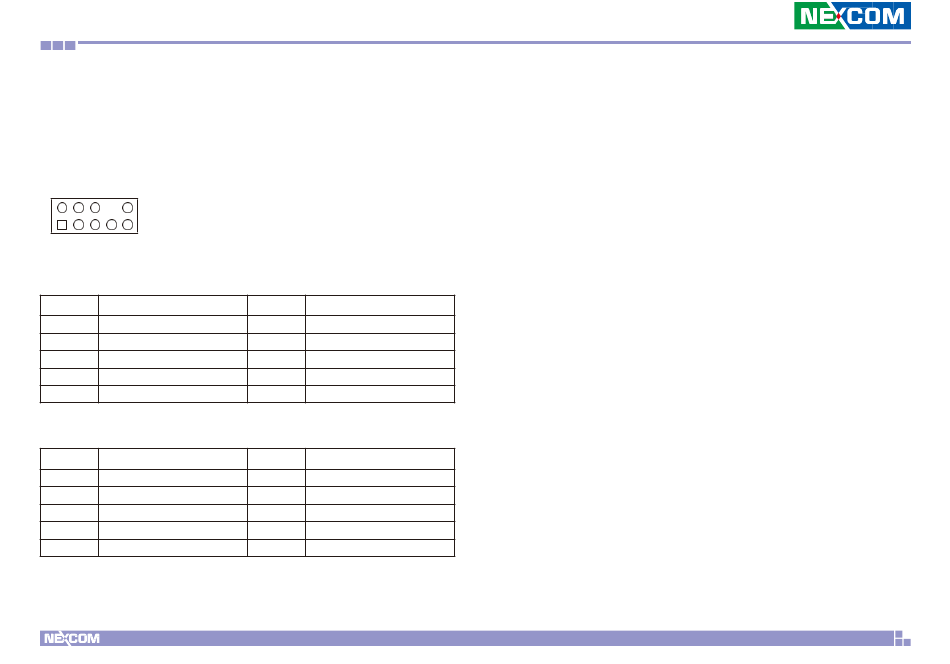

Front Panel Audio Connector

Connector type: 2x5 10-pin header
Connector location: AAFP
2
10
1
9
HD Audio Compliant Pin Definition
Pin Definition
1 PORT1 L
3 PORT1 R
5 PORT2 R
7 SENSE_SEND
9 PORT2 L
Legacy AC'97 Compliant Pin Definition
Pin Definition
1 MIC2
3 MICPWR
5 Line out_R
7 NC
9 Line out_L
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 AGND
4 NC
6 SENSE1_RETUR
8
10 SENSE2_RETUR
Pin Definition
2 AGND
4 NC
6 NC
8
10 NC
26
