Chapter 2: Jumpers and Connectors

Jumpers

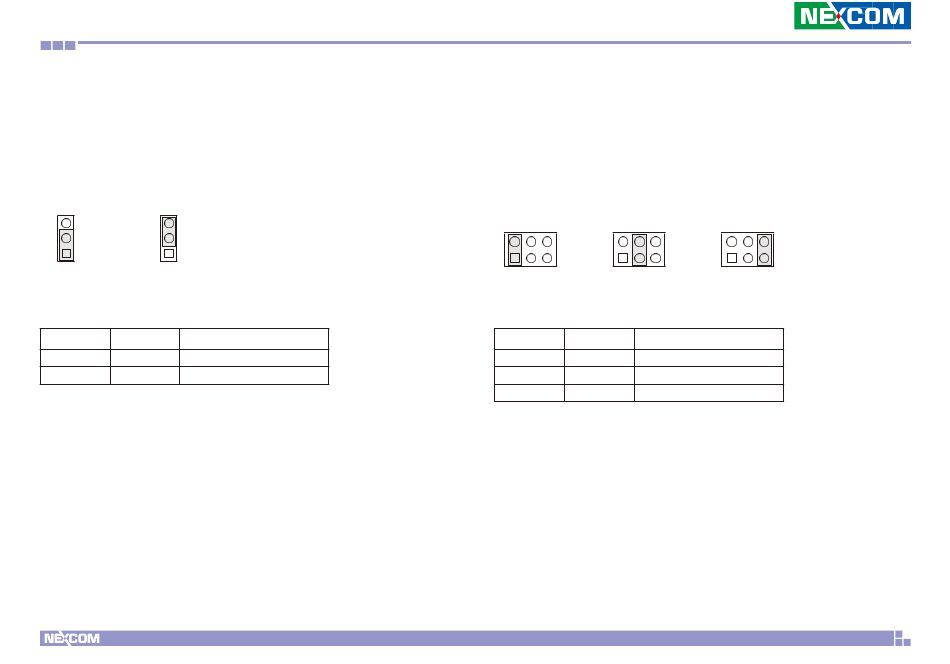

Clear RTC RAM

Connector type: 1x3 3-pin header
Connector location: CLRTC
3 3
1 1
1-2 Short 2-3 Short
(Default)
Pin Status
1-2 Short
2-3 Short
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Settings
Normal
Clear CMOS

COM1 Ring/+5V/+12V Selection

Connector type: 2x3 6-pin header
Connector location: COM1_VSET
2 6 2
1 5 1
1-2 Short 3-4 Short
Pin Status
1-2 Short
3-4 Short
5-6 Short
14
6 2 6
5 1 5
5-6 Short
(Default)
Settings
+12V
+5V
Ring
