Chapter 2: Jumpers and Connectors

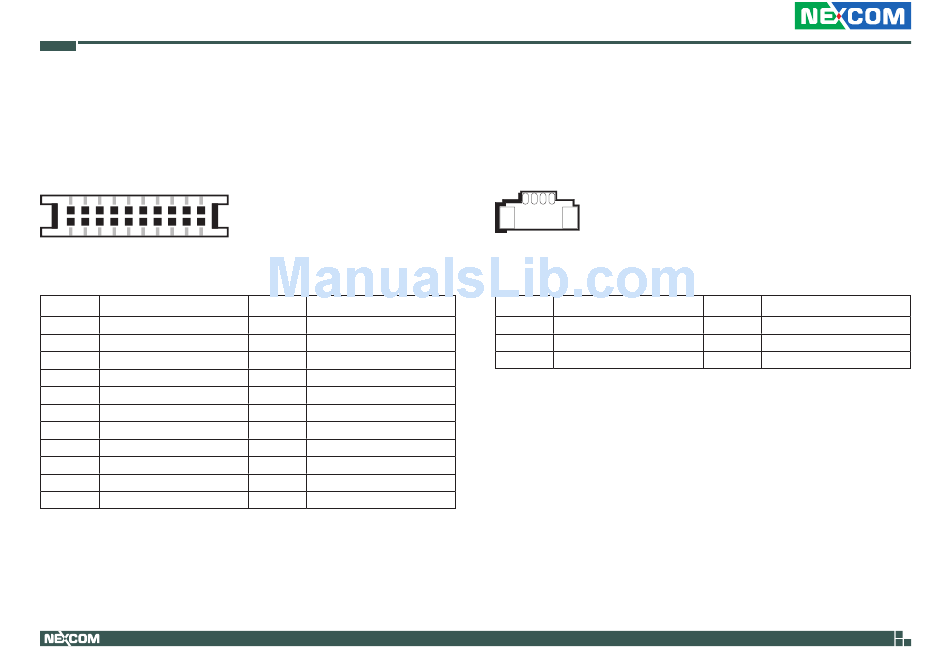

LVDS Connector

Connector type: 2x10 20-pin header, 1.25mm pitch
Connector location: CN4
1
2
Pin Definition
1 VCC5_VDD
3 VCC3_VDD
5 LVDS_DAT0N
7 LVDS_DAT0P
9 GND
11 LVDS_DAT2N
13 LVDS_DAT2P
15 GND
17 LVDS_DAT3N
19 LVDS_DAT3P
MH1 GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
19
20
Pin Definition
2 VCC5_VDD
4 LVDS_DAT1N
6 LVDS_DAT1P
8 VCC3_VDD
10 LVDS_CLK1N
12 LVDS_CLK1P
14 GND
16 12V
18 12V
20 GND
MH2 GND

PWR/HDD LED Connector

Connector type: 1x4 4-pin header, 1.25mm pitch
Connector location: J7
1 4
Pin Definition
1 PWRLED#
3 HDD_LED#
MH1 GND
20
Pin Definition
2 PWRLED
4 HDD_LED
MH2 GND
