Chapter 1: Product Introduction

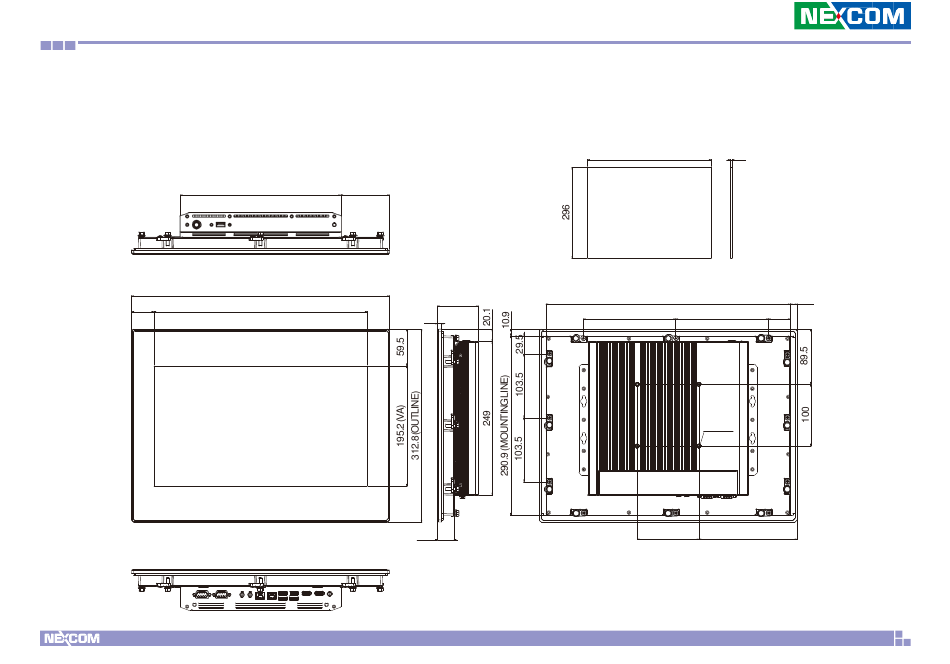

Mechanical Dimensions
KPPC 1514B
36
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
260
78.9
417.8 (OUTLINE)
345.9 (VA)
CUT OUT SIZE T=3.0mm (MAX)
66.3
6.2
26.8
7
401
3
395.9 (MOUNTING LINE)
150
150
35.5
M4*0.7
100
158.9
KPPC 1514B/1814B/2114B User Manual
10.9
