Chapter 2: Jumpers and Connectors

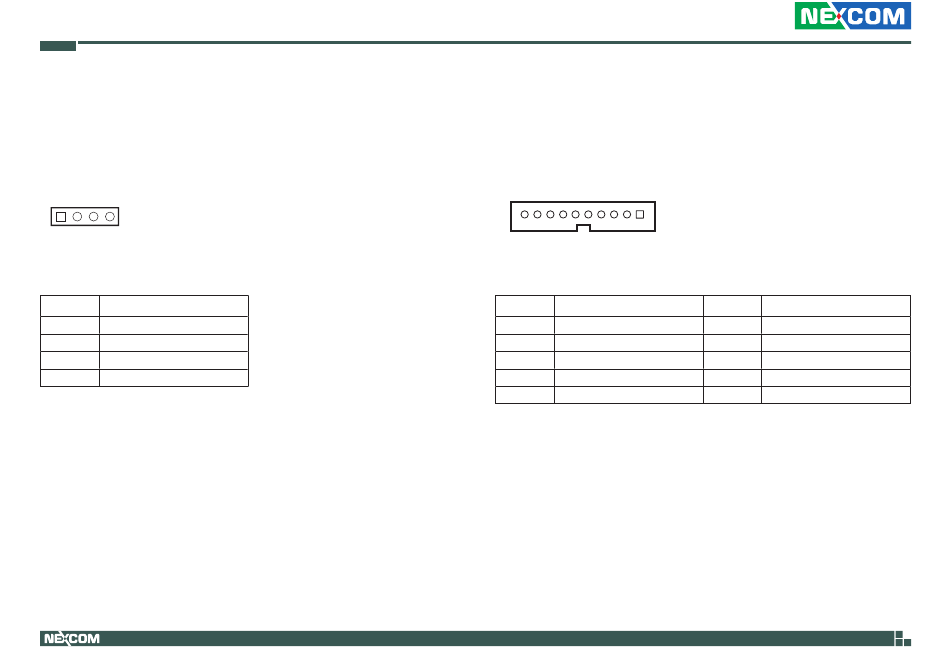

LVDS MCU FW Debug Connector

Connector type: 1x4 4-pin header, 2.54mm pitch
Connector location: JP5
1 4
Pin Definition
1 VCC3
2 MCU_TCK
3 MCU_TDIO
4 GND
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.

Post Code Debug Connector

Connector type: 1x10 10-pin header, 1.0mm pitch
Connector location: J9
10
Pin Definition
1 GND
3 LPC_CLK
5 LPC_AD3
7 LPC_AD1
9 VCC3
28
1
Pin Definition
2 PLTRST#
4 LPC_FRAME#
6 LPC_AD2
8 LPC_AD0
10 VCC3
