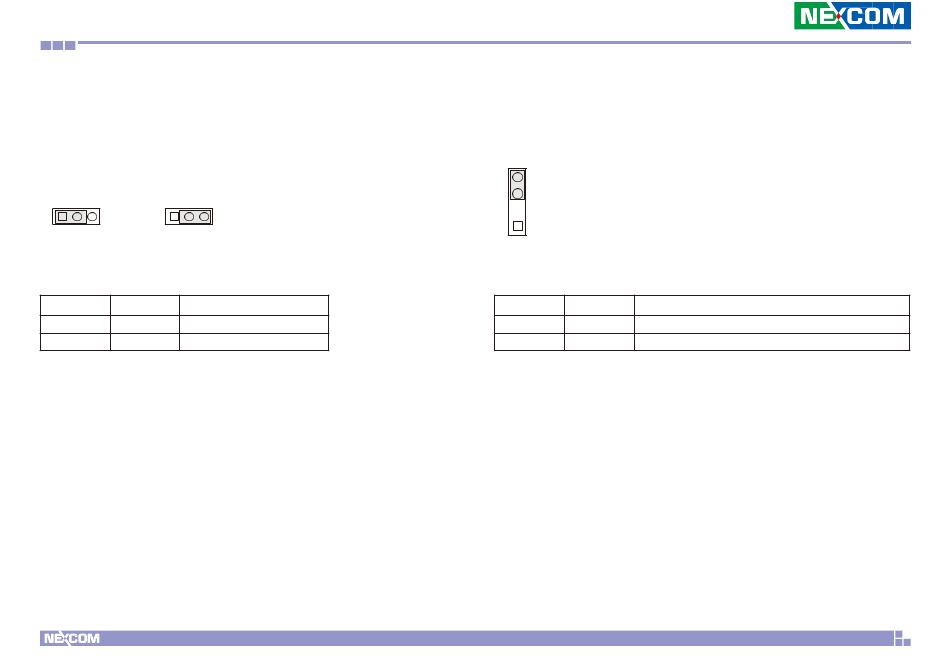

Chapter 2: Jumpers and Connectors
Inverter Backlight Control Mode Select
Connector type: 1x3 3-pin header
Connector location: LJ3
1
3
1
3
1-2 Short
2-3 Short
(Default)
Pin
Status
1-2
Short
2-3
Short
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Settings
+12V
+5V
Chassis Intrusion Jumper
Connector type: 1x4 4-pin header
Connector location: CHASSIS
4
1
3-4 Short
(Default)
Pin
Status
1-2
Open
Enables the chassis intrusion detection feature
3-4
Short
Disables the chassis intrusion detection feature
