Chapter 2: Jumpers and Connectors

Connector Pin Definitions

Internal Connectors

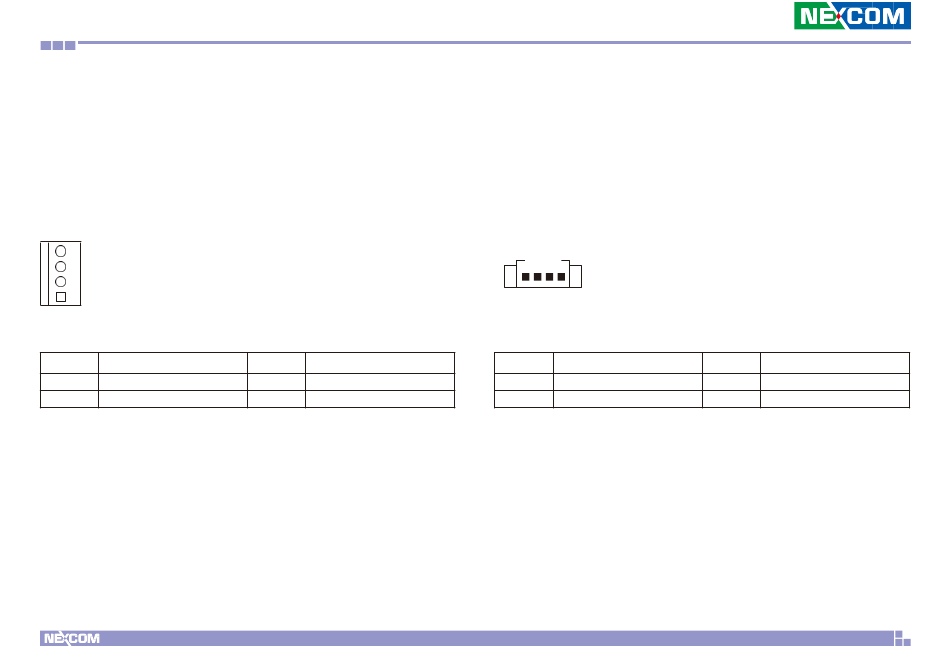

SATA Power Connector

Connector type: 1x4 4-pin header
Connector location: SATA_PWR
4
1
Pin Definition
1 +5V
3 GND
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 +12V

Audio Amplifier Connector

Connector type: 1x4 4-pin header
Connector location: AMP_CON
1 4
Pin Definition
1 ROUTP
3 LOUTN
17
Pin Definition
2 ROUTN
4 LOUTP
