Application Examples
Example 1: conveyor application
The conveyor belt can accept to lose the communication
for up to 1 s. When communication is lost, the conveyor
has to stop.
ID
801 Control site
802 Control source
803 Control timeout time
804 Control timeout function
Table 7.7 Configuration of Example 1
7 7

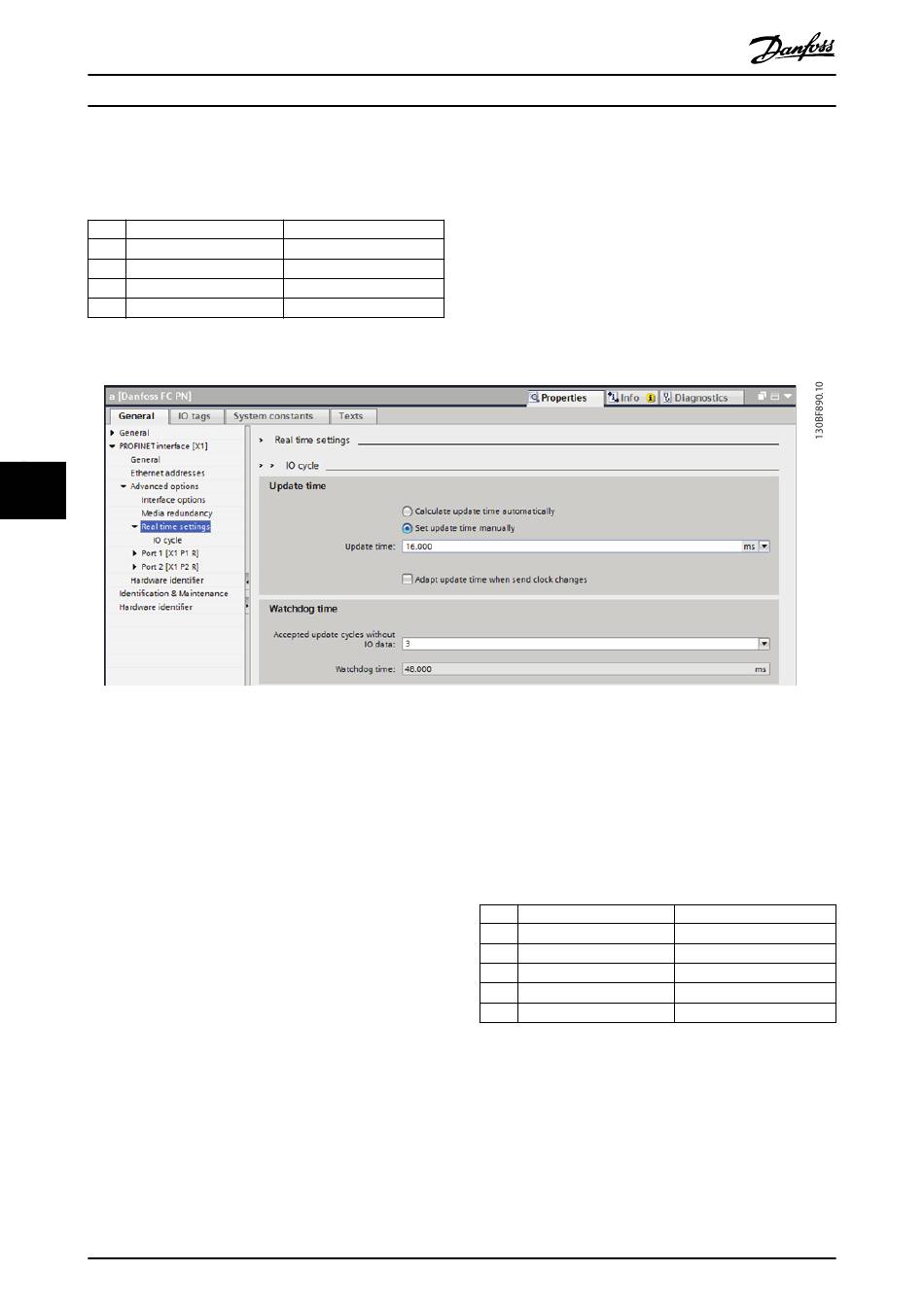

Illustration 7.9 Example of Setting the Update Time and Number of Accepted Lost I/O Cycles
The PROFINET interface will issue the warning 34, 48
milliseconds after the communication is lost. The frequency
converter issues warning 17, if the communication is still
missing after 1.0 s. At this time the frequency converter
commands the motor to stop via the setting in
parameter 8-04 Control Timeout Function, the frequency
converter ramps the motor down to stop. When the
communication is re-established the frequency converter
removes the warning 17, and execute the last valid control
word it has received before timeout occurred. It is the PLC
programs responsibility to regain control of the motor by
sending an active control word with the desired command
to control the motor.
46
PROFINET
Name Set-up 1
Digital and control word
FC port
1.0
Stop
