Application Examples

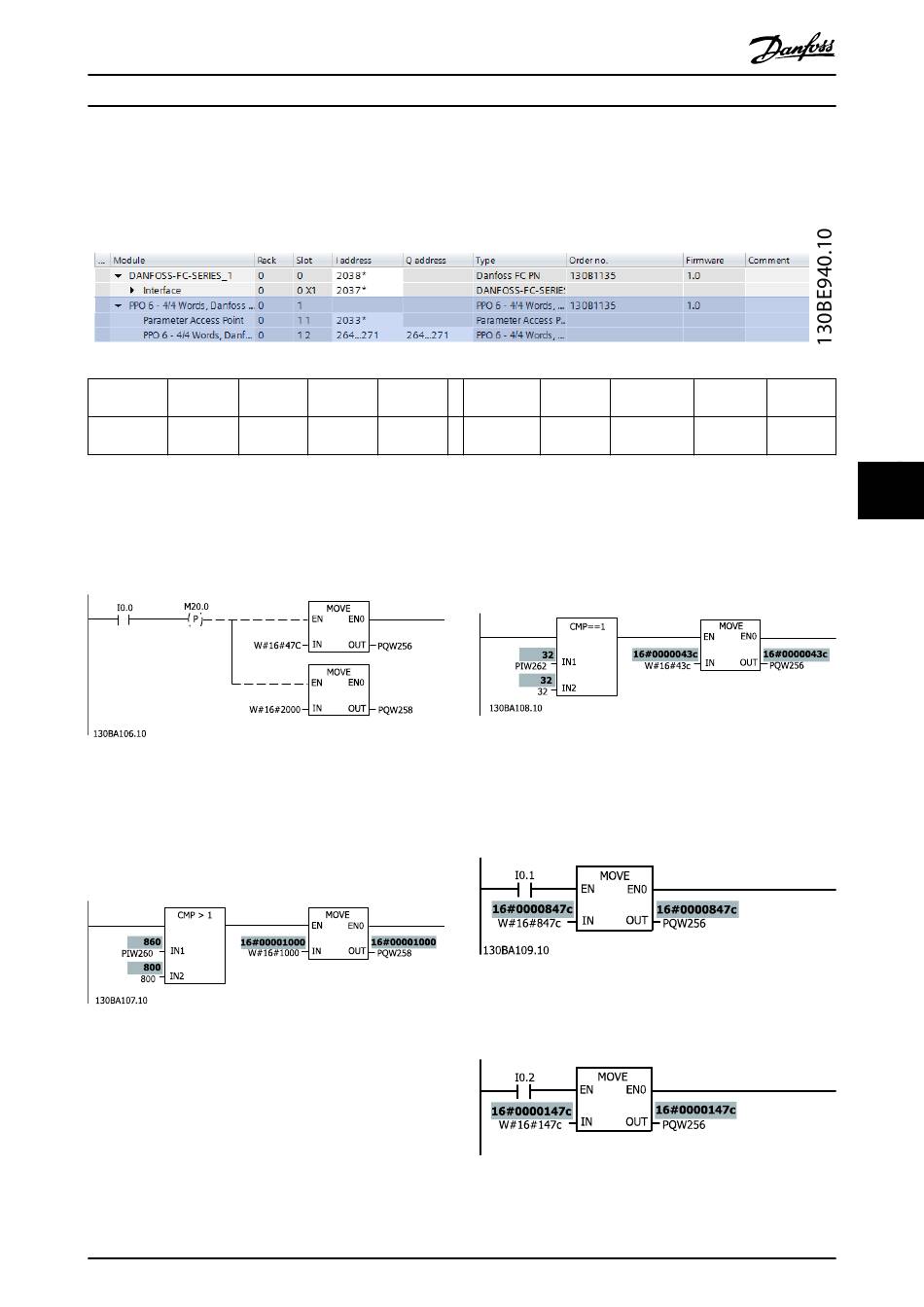

7.4 Example: PLC Programming

In this example, PPO type 6 is placed in the following input/output address:
Input
256–257 258–259
address
Set-up Status word MAV
Illustration 7.2 PPO Type 6 Placed in the Input/Output Address
This network sends a start command (047C hex) and a
reference (2000 hex) of 50% to the frequency converter.
Illustration 7.3 Network Sends Start Command and Reference
This network reads the motor torque from the frequency
converter. A new reference is sent to the frequency
converter because the motor torque (86.0%) is higher than
the compared value.
Illustration 7.4 Network Reads the Motor Torque
MG06G102
Programming Guide
Output
260–261 262–263
address
Motor Digital
Set-up
torque input
This network reads the status on the digital inputs from
the frequency converter. If digital input 18 is ON, it stops
the frequency converter.
Illustration 7.5 Network Reads the Status on the Digital Inputs
This network reverses the motor when digital input 19 is
ON, because parameter 8-54 Reversing Select is
programmed to Logic AND.
Illustration 7.6 Network Reverses the Motor
This network activates relay 02.
130BA110.10
Illustration 7.7 Network Activates Relay 02
Danfoss A/S © 04/2017 All rights reserved.
256–257 258–259 260–261
Control
Reference Not used
word
262–263
Not used
7 7
