Configuration
3 3

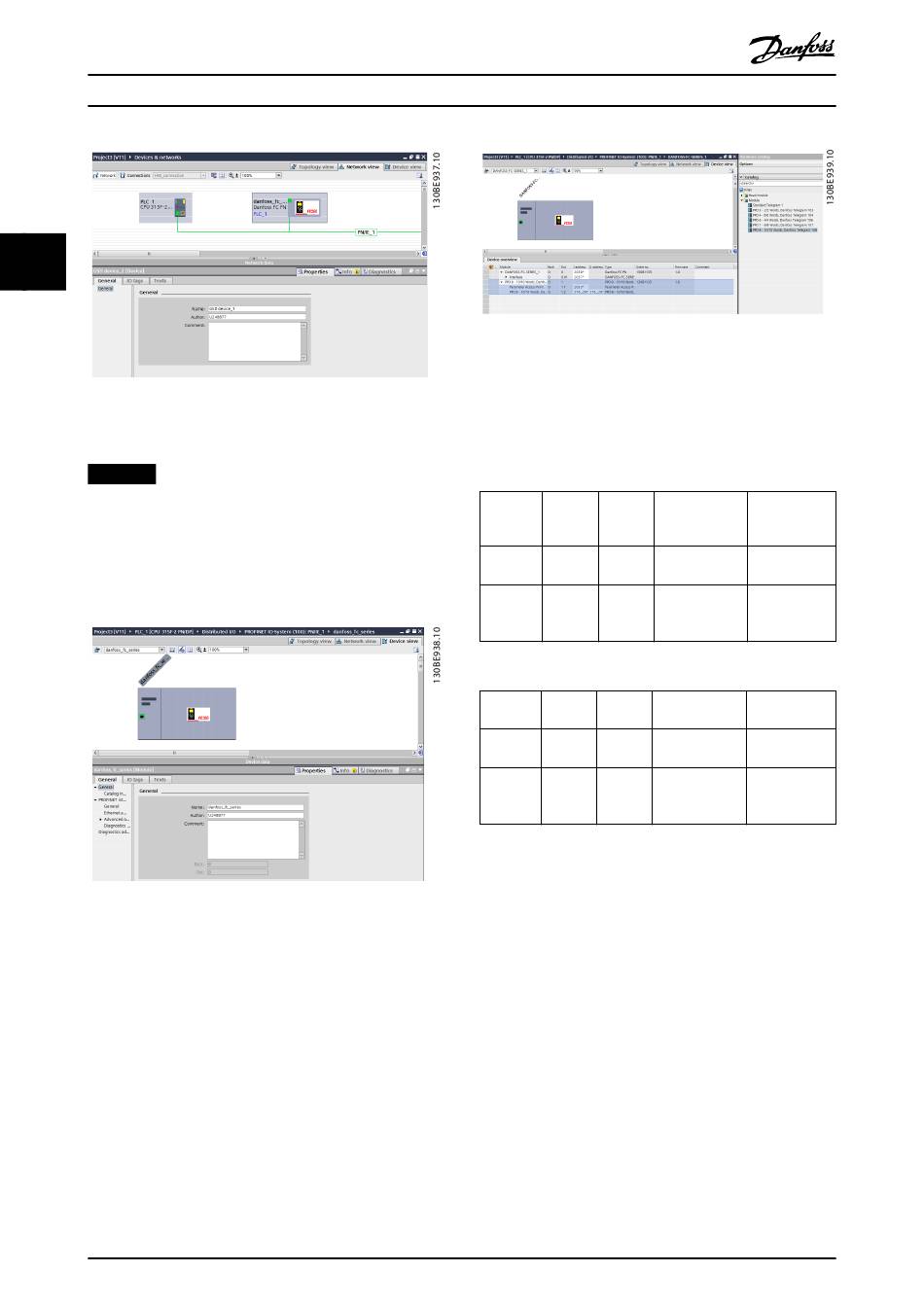

Illustration 3.4 Open the Properties for the Inserted
Frequency Converter to Enter the Device Name
NOTICE
The name must match the name in parameter 12-08 Host
Name. If the check mark Assign IP address via the IO
controller is set, the controller downloads the IP address
to the IO device with the corresponding device name.
The IP address is stored in the non-volatile memory of
the frequency converter.
Illustration 3.5 Set Up the Hardware and Add a PROFINET
Master System
The next step is to set up the peripheral input and output
data. Data set-up in the peripheral area is transmitted
cyclically via telegrams/PPO types. In the example below, a
PPO type 6 is dragged and dropped to slot 1.
8
PROFINET
Illustration 3.6 Set up the Peripheral Input and Output Data
The configuration tool automatically assigns addresses in
the peripheral address area. In this example, the input and
output area have the following configuration:
PPO type 6
PCD word
number
Input
address
Set-up
Table 3.2 PCD Read (Frequency Converter to PLC)
PCD word
number
Output
address
Set-up
Table 3.3 PCD Write (PLC to Frequency Converter)
Assign the PCDs via parameter 9-16 PCD Read Configuration
for inputs and parameter 9-15 PCD Write Configuration for
outputs.
Download the configuration file to the PLC. The PROFINET
system starts the data exchange when the PLC is set to
Run mode.
Danfoss A/S © 04/2017 All rights reserved.
0 1 2
256–257 258–259 260–261
Parameter 9-16
STW MAV PCD Read
Configuration
0 1 2
256–257 258–259 260–261
Parameter 9-15
CTW MRV PCD Write
Configuration
3
262–263
Parameter 9-16
PCD Read
Configuration
3
262–263
Parameter 9-15
PCD Write
Configuration
