5. Software Control – Using Lightware Device Controller

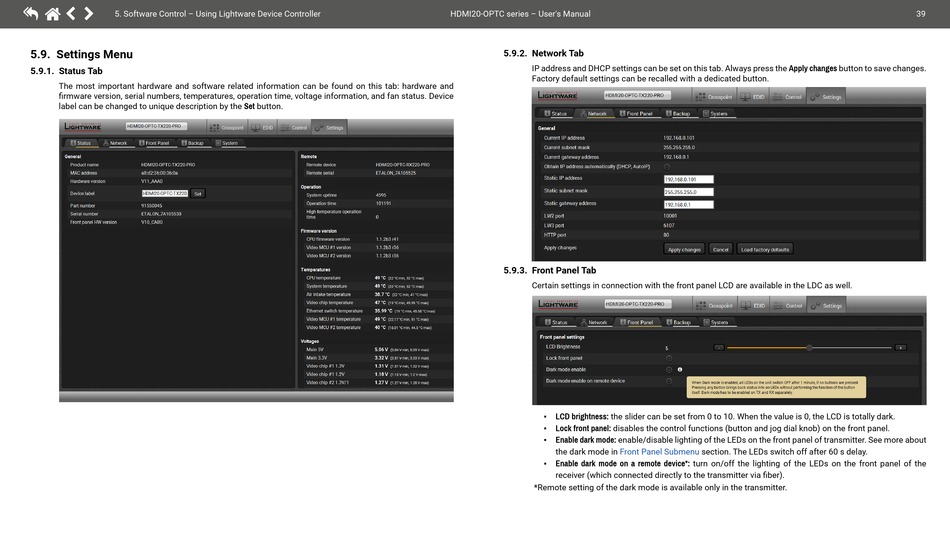

5.9. Settings Menu
5.9.1. Status Tab
The most important hardware and software related information can be found on this tab: hardware and
firmware version, serial numbers, temperatures, operation time, voltage information, and fan status. Device
label can be changed to unique description by the Set button.
HDMI20-OPTC series – User's Manual
5.9.2. Network Tab
IP address and DHCP settings can be set on this tab. Always press the Apply changes button to save changes.
Factory default settings can be recalled with a dedicated button.
5.9.3. Front Panel Tab
Certain settings in connection with the front panel LCD are available in the LDC as well.
LCD brightness: the slider can be set from 0 to 10. When the value is 0, the LCD is totally dark.
Lock front panel: disables the control functions (button and jog dial knob) on the front panel.
Enable dark mode: enable/disable lighting of the LEDs on the front panel of transmitter. See more about
the dark mode in
Front Panel Submenu
Enable dark mode on a remote device*: turn on/off the lighting of the LEDs on the front panel of the
receiver (which connected directly to the transmitter via fiber).
*Remote setting of the dark mode is available only in the transmitter.
section. The LEDs switch off after 60 s delay.
