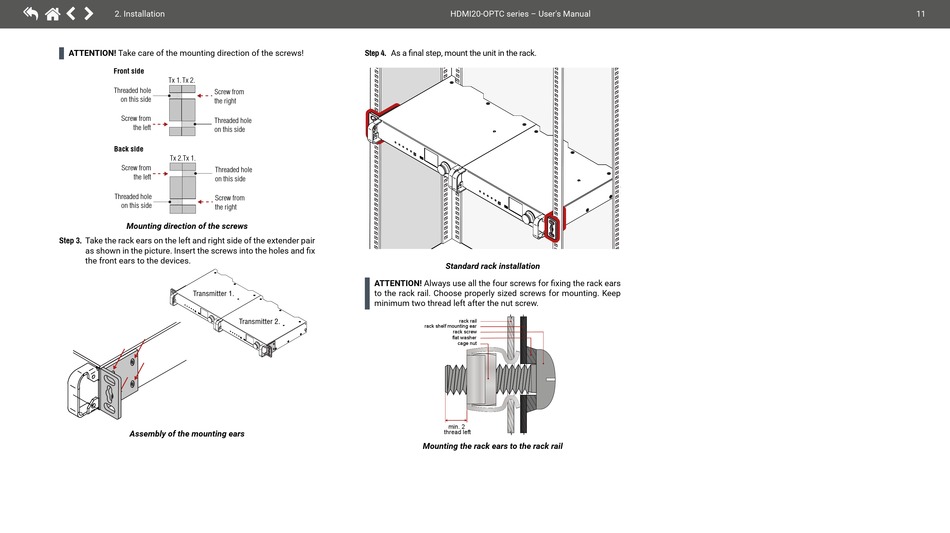

2. Installation
ATTENTION! Take care of the mounting direction of the screws!
Front side
Tx 1.
Threaded hole
on this side
Screw from
the left
Back side
Tx 2.
Screw from
the left
Threaded hole
on this side
Mounting direction of the screws
Step 3. Take the rack ears on the left and right side of the extender pair
as shown in the picture. Insert the screws into the holes and fix
the front ears to the devices.
Assembly of the mounting ears
Tx 2.
Screw from
the right
Threaded hole
on this side
Tx 1.
Threaded hole
on this side
Screw from
the right
Transmitter 1.
Transmitter 2.
HDMI20-OPTC series – User's Manual
Step 4. As a final step, mount the unit in the rack.
Standard rack installation
ATTENTION! Always use all the four screws for fixing the rack ears
to the rack rail. Choose properly sized screws for mounting. Keep
minimum two thread left after the nut screw.
rack rail
rack shelf mounting ear
rack screw
flat washer
cage nut
min. 2
thread left
Mounting the rack ears to the rack rail
