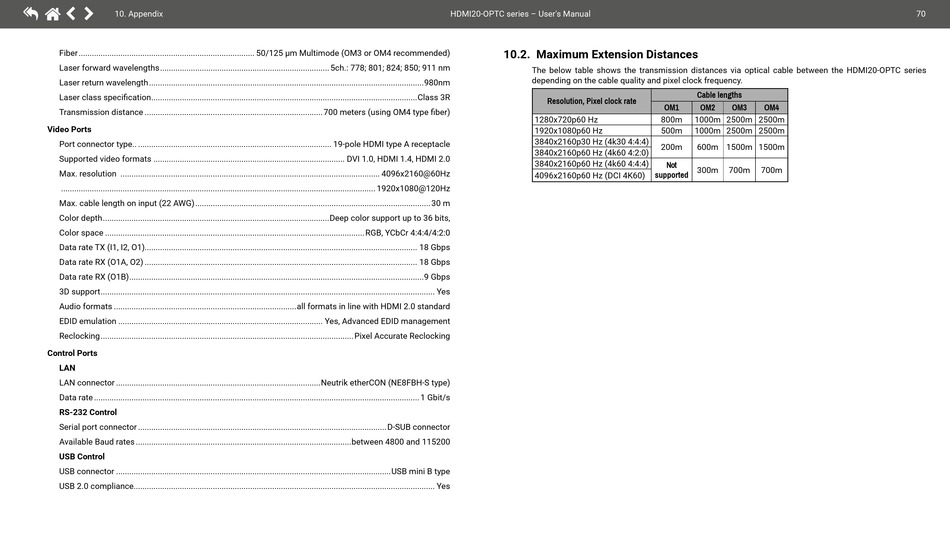

Lightware HDMI20-OPTC series User Manual page 70


  
10. Appendix
Fiber ................................................................................ 50/125 µm Multimode (OM3 or OM4 recommended)
Laser forward wavelengths ............................................................................. 5ch.: 778; 801; 824; 850; 911 nm
Laser return wavelength .............................................................................................................................980nm
Laser class specification .........................................................................................................................Class 3R
Transmission distance .................................................................................700 meters (using OM4 type fiber)
Video Ports
Port connector type.. ........................................................................................ 19-pole HDMI type A receptacle
Supported video formats ....................................................................................... DVI 1.0, HDMI 1.4, HDMI 2.0
Max. resolution ...................................................................................................................... 4096x2160@60Hz
............................................................................................................................................... 1920x1080@120Hz
Max. cable length on input (22 AWG) ........................................................................................................... 30 m
Color depth .......................................................................................................Deep color support up to 36 bits,
Color space ...................................................................................................................... RGB, YCbCr 4:4:4/4:2:0
Data rate TX (I1, I2, O1)............................................................................................................................ 18 Gbps
Data rate RX (O1A, O2) ............................................................................................................................ 18 Gbps
Data rate RX (O1B) ......................................................................................................................................9 Gbps
3D support ........................................................................................................................................................ Yes
Audio formats ...................................................................................all formats in line with HDMI 2.0 standard
EDID emulation ............................................................................................. Yes, Advanced EDID management
Reclocking ................................................................................................................... Pixel Accurate Reclocking
Control Ports
LAN
LAN connector .............................................................................................Neutrik etherCON (NE8FBH-S type)
Data rate .................................................................................................................................................... 1 Gbit/s
RS-232 Control
Serial port connector .................................................................................................................D-SUB connector
Available Baud rates ..................................................................................................between 4800 and 115200
USB Control
USB connector .............................................................................................................................USB mini B type
USB 2.0 compliance......................................................................................................................................... Yes
HDMI20-OPTC series – User's Manual
10.2. Maximum Extension Distances
The below table shows the transmission distances via optical cable between the HDMI20-OPTC series
depending on the cable quality and pixel clock frequency.
Resolution, Pixel clock rate
1280x720p60 Hz
1920x1080p60 Hz
3840x2160p30 Hz (4k30 4:4:4)
3840x2160p60 Hz (4k60 4:2:0)
3840x2160p60 Hz (4k60 4:4:4)
4096x2160p60 Hz (DCI 4K60)
Cable lengths
OM1 OM2 OM3 OM4
800m 1000m 2500m 2500m
500m 1000m 2500m 2500m
200m 600m 1500m 1500m
Not
300m 700m 700m
supported
