5. Software Control - Lightware Device Controller

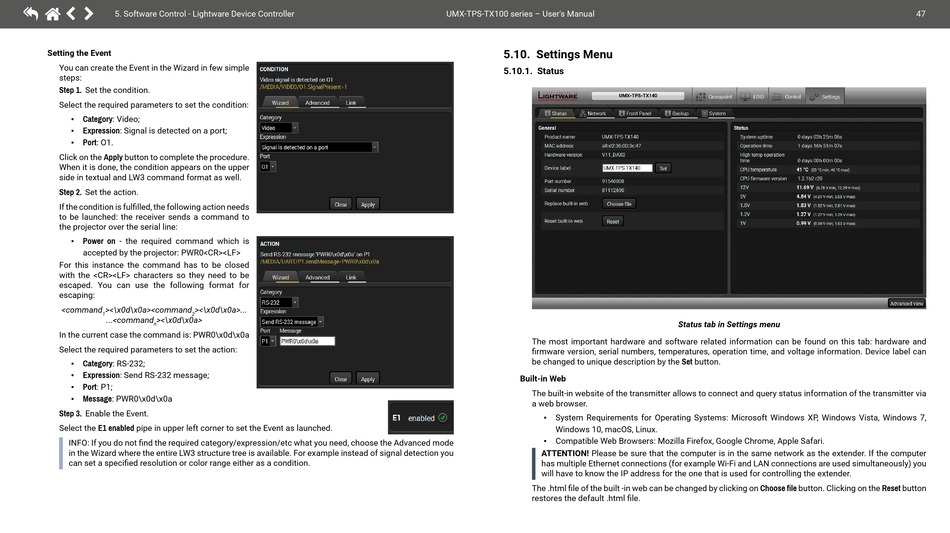

Setting the Event
You can create the Event in the Wizard in few simple
steps:
Step 1. Set the condition.
Select the required parameters to set the condition:
▪ Category: Video;
Expression: Signal is detected on a port;
▪
Port: O1.
▪
Click on the Apply button to complete the procedure.
When it is done, the condition appears on the upper
side in textual and LW3 command format as well.
Step 2. Set the action.
If the condition is fulfilled, the following action needs
to be launched: the receiver sends a command to
the projector over the serial line:
▪ Power on - the required command which is
accepted by the projector: PWR0<CR><LF>
For this instance the command has to be closed
with the <CR><LF> characters so they need to be
escaped. You can use the following format for
escaping:
<command ><\x0d\x0a><command ><\x0d\x0a>...
1 2
...<command ><\x0d\x0a>
n
In the current case the command is: PWR0\x0d\x0a
Select the required parameters to set the action:
Category: RS-232;
▪
▪ Expression: Send RS-232 message;
▪ Port: P1;
Message: PWR0\x0d\x0a
▪
Step 3. Enable the Event.
Select the E1 enabled pipe in upper left corner to set the Event as launched.
INFO: If you do not find the required category/expression/etc what you need, choose the Advanced mode
in the Wizard where the entire LW3 structure tree is available. For example instead of signal detection you
can set a specified resolution or color range either as a condition.
UMX-TPS-TX100 series – User's Manual
5.10. Settings Menu
5.10.1. Status
The most important hardware and software related information can be found on this tab: hardware and
firmware version, serial numbers, temperatures, operation time, and voltage information. Device label can
be changed to unique description by the Set button.
Built-in Web
The built-in website of the transmitter allows to connect and query status information of the transmitter via
a web browser.
System Requirements for Operating Systems: Microsoft Windows XP, Windows Vista, Windows 7,
▪
Windows 10, macOS, Linux.
▪ Compatible Web Browsers: Mozilla Firefox, Google Chrome, Apple Safari.
ATTENTION! Please be sure that the computer is in the same network as the extender. If the computer
has multiple Ethernet connections (for example Wi-Fi and LAN connections are used simultaneously) you
will have to know the IP address for the one that is used for controlling the extender.
The .html file of the built -in web can be changed by clicking on Choose file button. Clicking on the Reset button
restores the default .html file.
Status tab in Settings menu
47
