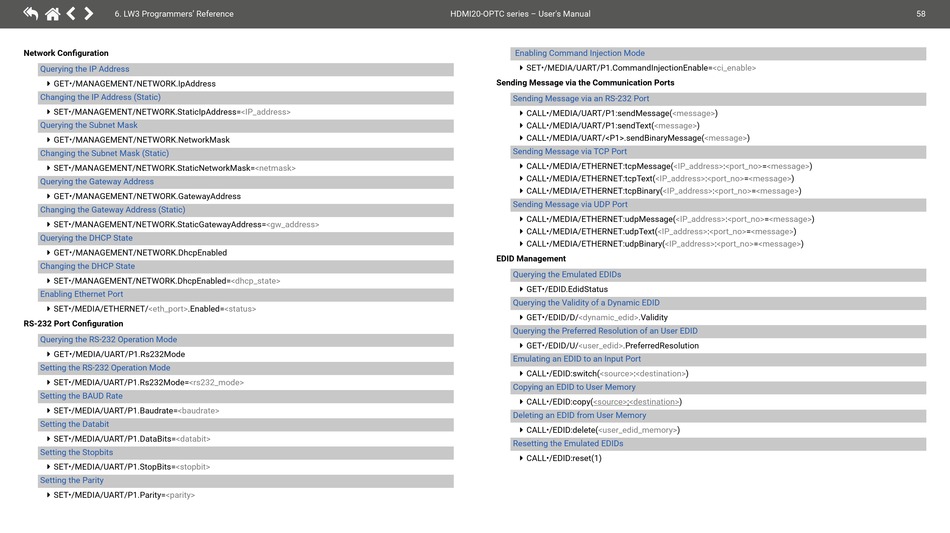

Lightware HDMI20-OPTC series User Manual page 58


  
6. LW3 Programmers' Reference
Network Configuration
Querying the IP Address
Ý GET•/MANAGEMENT/NETWORK.IpAddress
Changing the IP Address (Static)
SET•/MANAGEMENT/NETWORK.StaticIpAddress=<IP_address>
Ý
Querying the Subnet Mask
Ý GET•/MANAGEMENT/NETWORK.NetworkMask
Changing the Subnet Mask (Static)
SET•/MANAGEMENT/NETWORK.StaticNetworkMask=<netmask>
Ý
Querying the Gateway Address
Ý GET•/MANAGEMENT/NETWORK.GatewayAddress
Changing the Gateway Address (Static)
SET•/MANAGEMENT/NETWORK.StaticGatewayAddress=<gw_address>
Ý
Querying the DHCP State
Ý GET•/MANAGEMENT/NETWORK.DhcpEnabled
Changing the DHCP State
SET•/MANAGEMENT/NETWORK.DhcpEnabled=<dhcp_state>
Ý
Enabling Ethernet Port
SET•/MEDIA/ETHERNET/<eth_port>.Enabled=<status>
Ý
RS-232 Port Configuration
Querying the RS-232 Operation Mode
Ý GET•/MEDIA/UART/P1.Rs232Mode
Setting the RS-232 Operation Mode
SET•/MEDIA/UART/P1.Rs232Mode=<rs232_mode>
Ý
Setting the BAUD Rate
SET•/MEDIA/UART/P1.Baudrate=<baudrate>
Ý
Setting the Databit
SET•/MEDIA/UART/P1.DataBits=<databit>
Ý
Setting the Stopbits
SET•/MEDIA/UART/P1.StopBits=<stopbit>
Ý
Setting the Parity
SET•/MEDIA/UART/P1.Parity=<parity>
Ý
HDMI20-OPTC series – User's Manual
Enabling Command Injection Mode
SET•/MEDIA/UART/P1.CommandInjectionEnable=<ci_enable>
Ý
Sending Message via the Communication Ports
Sending Message via an RS-232 Port
Ý CALL•/MEDIA/UART/P1:sendMessage(<message>)
Ý CALL•/MEDIA/UART/P1:sendText(<message>)
Ý CALL•/MEDIA/UART/<P1>.sendBinaryMessage(<message>)
Sending Message via TCP Port
Ý CALL•/MEDIA/ETHERNET:tcpMessage(<IP_address>:<port_no>=<message>)
Ý CALL•/MEDIA/ETHERNET:tcpText(<IP_address>:<port_no>=<message>)
Ý CALL•/MEDIA/ETHERNET:tcpBinary(<IP_address>:<port_no>=<message>)
Sending Message via UDP Port
Ý CALL•/MEDIA/ETHERNET:udpMessage(<IP_address>:<port_no>=<message>)
Ý CALL•/MEDIA/ETHERNET:udpText(<IP_address>:<port_no>=<message>)
Ý CALL•/MEDIA/ETHERNET:udpBinary(<IP_address>:<port_no>=<message>)
EDID Management
Querying the Emulated EDIDs
Ý GET•/EDID.EdidStatus
Querying the Validity of a Dynamic EDID
Ý GET•/EDID/D/<dynamic_edid>.Validity
Querying the Preferred Resolution of an User EDID
Ý GET•/EDID/U/<user_edid>.PreferredResolution
Emulating an EDID to an Input Port
Ý CALL•/EDID:switch(<source>:<destination>)
Copying an EDID to User Memory
Ý CALL•/EDID:copy(<source>:<destination>)
Deleting an EDID from User Memory
Ý CALL•/EDID:delete(<user_edid_memory>)
Resetting the Emulated EDIDs
Ý CALL•/EDID:reset(1)
