4. Operation

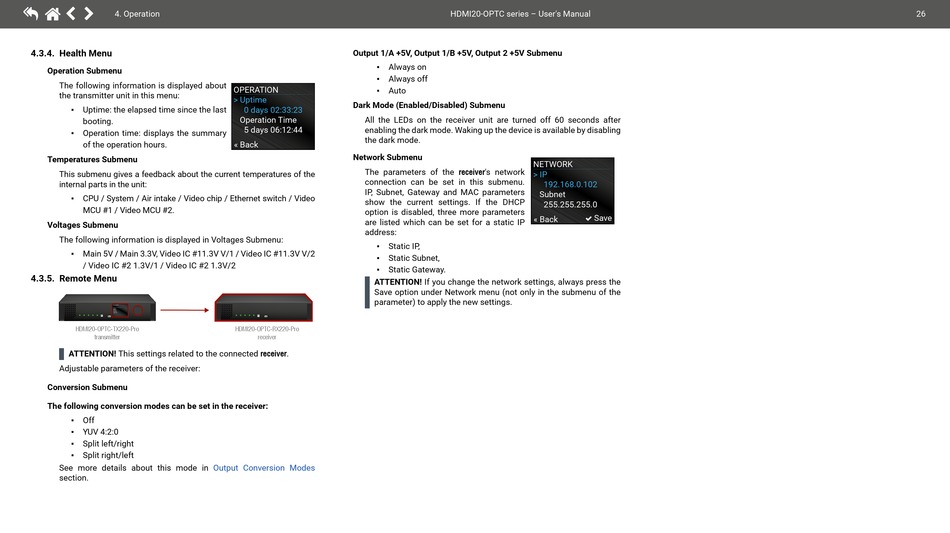

4.3.4. Health Menu
Operation Submenu
The following information is displayed about
the transmitter unit in this menu:
Uptime: the elapsed time since the last
▪
booting.
▪ Operation time: displays the summary
of the operation hours.
Temperatures Submenu
This submenu gives a feedback about the current temperatures of the
internal parts in the unit:
▪ CPU / System / Air intake / Video chip / Ethernet switch / Video
MCU #1 / Video MCU #2.
Voltages Submenu
The following information is displayed in Voltages Submenu:
Main 5V / Main 3.3V, Video IC #11.3V V/1 / Video IC #11.3V V/2
▪
/ Video IC #2 1.3V/1 / Video IC #2 1.3V/2
4.3.5. Remote Menu
MAIN MENU
> System Settings
Ports
EDID
Health
Remote
HDMI20-OPTC-TX220-Pro
transmitter
ATTENTION! This settings related to the connected receiver.
Adjustable parameters of the receiver:
Conversion Submenu
The following conversion modes can be set in the receiver:
▪ Off
▪ YUV 4:2:0
Split left/right
▪
▪ Split right/left
See more details about this mode in
section.
Output 1/A +5V, Output 1/B +5V, Output 2 +5V Submenu
▪ Always on
Always off
▪
OPERATION
Auto
▪
> Uptime
Dark Mode (Enabled/Disabled) Submenu
0 days 02:33:23
Operation Time All the LEDs on the receiver unit are turned off 60 seconds after
5 days 06:12:44 enabling the dark mode. Waking up the device is available by disabling
the dark mode.
« Back
Network Submenu
The parameters of the receiver's network
connection can be set in this submenu.
IP, Subnet, Gateway and MAC parameters
show the current settings. If the DHCP
option is disabled, three more parameters
are listed which can be set for a static IP
address:
▪ Static IP,
▪ Static Subnet,
Static Gateway.
▪
ATTENTION! If you change the network settings, always press the
Save option under Network menu (not only in the submenu of the
parameter) to apply the new settings.
HDMI20-OPTC-RX220-Pro
receiver
Output Conversion Modes
HDMI20-OPTC series – User's Manual
NETWORK
> IP
192.168.0.102
Subnet
255.255.255.0
Save
« Back

