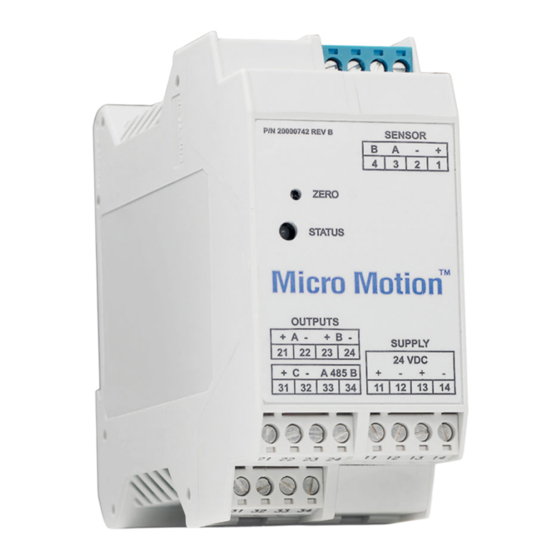

Emerson Micro Motion 1500 Configuration And Use Manual
  1. Manuals
  2. Brands
  3. Emerson Manuals
  4. Transmitter
  5. MICRO MOTION 1500
  6. Configuration and use manual

Emerson Micro Motion 1500 Configuration And Use Manual

Transmitters with analog outputs
Hide thumbs Also See for Micro Motion 1500:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual
Configuration and Use Manual
MMI-20019023, Rev AB
March 2018
®
Micro Motion
Model 1500 Transmitters with
Analog Outputs
Configuration and Use Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Micro Motion 1500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emerson Micro Motion 1500

Summary of Contents for Emerson Micro Motion 1500

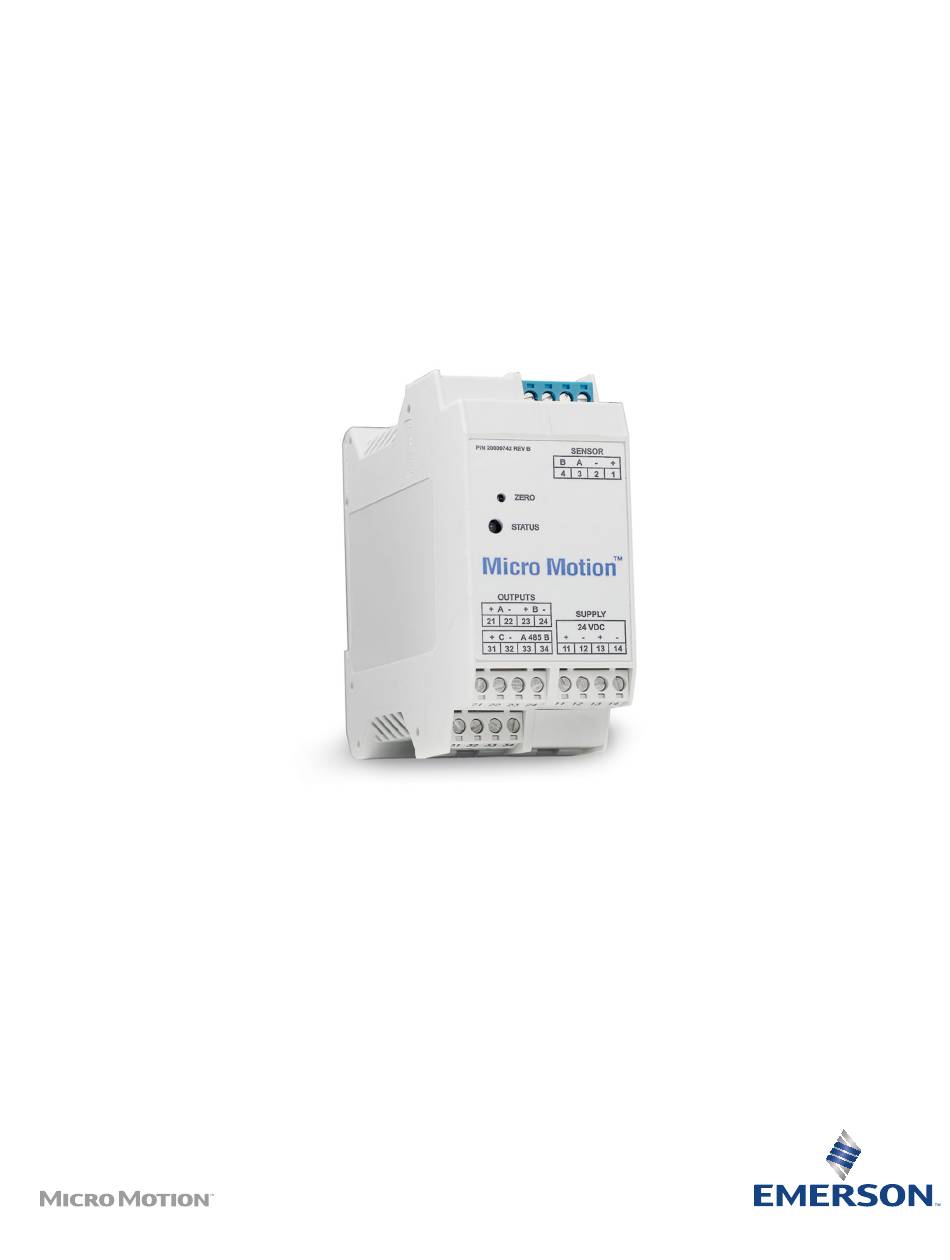

  • Page 1 Configuration and Use Manual MMI-20019023, Rev AB March 2018 ® Micro Motion Model 1500 Transmitters with Analog Outputs Configuration and Use Manual...
  • Page 2 Micro Motion employees. Micro Motion will not accept your returned equipment if you fail to follow Micro Motion procedures. Return procedures and forms are available on our web support site at www.emerson.com, or by phoning the Micro Motion Customer Service department.

  • Page 3: Table Of Contents

    Contents Contents Part I Getting started Chapter 1 Before you begin ......................3 About this manual ........................3 Transmitter model code ......................3 Communications tools and protocols ..................3 Additional documentation and resources ..................4 Chapter 2 Quick start ........................5 Power up the transmitter ......................5 Check meter status ........................6 2.2.1...
  • Page 4 Contents 4.5.3 Configure Density Damping ..................41 4.5.4 Configure Density Cutoff ....................42 Configure temperature measurement ..................43 4.6.1 Configure Temperature Measurement Unit ..............43 4.6.2 Configure Temperature Damping ................43 4.6.3 Effect of Temperature Damping on process measurement ......... 44 Configure pressure compensation .....................44 4.7.1 Configure pressure compensation using ProLink III ............
  • Page 5 Contents Test or tune the system using sensor simulation ................89 7.1.1 Sensor simulation ....................... 90 Back up transmitter configuration ..................... 91 Enable write-protection on the transmitter configuration ............91 Part III Operations, maintenance, and troubleshooting Chapter 8 Transmitter operation ....................95 Record the process variables .....................
  • Page 6 Contents 10.8 Using sensor simulation for troubleshooting ................136 10.9 Check power supply wiring ......................137 10.10 Check sensor-to-transmitter wiring ..................138 10.11 Check grounding ........................138 10.12 Perform loop tests ........................139 10.12.1 Perform loop tests using ProLink III ................139 10.12.2 Perform loop tests using the Field Communicator ............140 10.13 Check the HART communication loop ..................

  • Page 7: Getting Started

    Getting started Part I Getting started Chapters covered in this part: • Before you begin • Quick start Configuration and Use Manual...
  • Page 8 Getting started Micro Motion Model 1500 Transmitters with Analog Outputs...

  • Page 9: Before You Begin

    Before you begin Before you begin Topics covered in this chapter: • About this manual • Transmitter model code • Communications tools and protocols • Additional documentation and resources About this manual This manual helps you configure, commission, use, maintain, and troubleshoot the Model 1500 transmitter.

  • Page 10: Additional Documentation And Resources

    Adapter. Use of AMS or the Smart Wireless THUM Adapter is not discussed in this manual. For more information on the Smart Wireless THUM Adapter, refer to the documentation available at www.emerson.com. Additional documentation and resources The following additional documentation supports the installation and operation of the transmitter.

  • Page 11: Chapter 2 Quick Start

    Quick start Quick start Topics covered in this chapter: • Power up the transmitter • Check meter status • Make a startup connection to the transmitter • (Optional) Adjust digital communications settings • Verify mass flow measurement • Verify the zero Power up the transmitter The transmitter must be powered up for all configuration and commissioning tasks, or for process measurement.

  • Page 12: Check Meter Status

    Quick start temperature, allow the electronics to warm up for approximately 10 minutes before relying on process measurements. During this warm-up period, you may observe minor measurement instability or inaccuracy. Check meter status Check the meter for any error conditions that require user action or that affect measurement accuracy.

  • Page 13: Optional) Adjust Digital Communications Settings

    Quick start Communications tool Connection type to use Instructions ProLink III Modbus/RS-485 Appendix A Field Communicator HART Appendix B (Optional) Adjust digital communications settings Change the communications parameters to site-specific values. Important If you are changing communications parameters for the connection type that you are using, you will lose the connection when you write the parameters to the transmitter.
  • Page 14 Quick start The zero verification procedure analyzes the Live Zero value under conditions of zero flow, and compares it to the Zero Stability range for the sensor. If the average Live Zero value is within a reasonable range, the zero value stored in the transmitter is valid. Performing a field calibration will not improve measurement accuracy.

  • Page 15: Terminology Used With Zero Verification And Zero Calibration

    Quick start 2.6.1 Terminology used with zero verification and zero calibration Term Definition Zero In general, the offset required to synchronize the left pickoff and the right pickoff under conditions of zero flow. Unit = microseconds. Factory Zero The zero value obtained at the factory, under laboratory conditions. Field Zero The zero value obtained by performing a zero calibration outside the fac- tory.
  • Page 16 Quick start Micro Motion Model 1500 Transmitters with Analog Outputs...

  • Page 17: Part Ii Configuration And Commissioning

    Configuration and commissioning Part II Configuration and commissioning Chapters covered in this part: • Introduction to configuration and commissioning • Configure process measurement • Configure device options and preferences • Integrate the meter with the control system Complete the configuration •...
  • Page 18 Configuration and commissioning Micro Motion Model 1500 Transmitters with Analog Outputs...

  • Page 19: Introduction To Configuration And Commissioning

    Introduction to configuration and commissioning Introduction to configuration and commissioning Topics covered in this chapter: • Configuration flowchart • Default values and ranges • Disable write‐protection on the transmitter configuration • Restore the factory configuration Configuration flowchart Use the following flowchart as a general guide to the configuration and commissioning process.
  • Page 20 Introduction to configuration and commissioning Figure 3-1: Configuration flowchart Test and move to production Configure process measurement Configure device options and preferences Configure mass flow Configure fault handling Test or tune transmitter measurement using sensor simulation parameters Configure volume flow Configure sensor meaurement Back up transmitter...

  • Page 21: Default Values And Ranges

    Introduction to configuration and commissioning Default values and ranges Appendix C to view the default values and ranges for the most commonly used parameters. Disable write-protection on the transmitter configuration ProLink III Device Tools > Configuration > Write-Protection Field Communicator Configure > Manual Setup > Info Parameters > Transmitter Info > Write Protect Overview If the transmitter is write-protected, the configuration is locked and you must unlock it before you can change any configuration parameters.
  • Page 22 Introduction to configuration and commissioning Micro Motion Model 1500 Transmitters with Analog Outputs...

  • Page 23: Configure Process Measurement

    Configure process measurement Configure process measurement Topics covered in this chapter: • Configure mass flow measurement • Configure volume flow measurement for liquid applications • Configure GSV flow measurement • Configure Flow Direction • Configure density measurement • Configure temperature measurement •...
  • Page 24 Configure process measurement Label Unit description ProLink III Field Communicator g/sec Grams per second g/min g/min Grams per minute g/hr Grams per hour kg/sec kg/s Kilograms per second Kilograms per minute kg/min kg/min Kilograms per hour kg/hr kg/h Kilograms per day kg/day kg/d Metric tons per minute...

  • Page 25: Configure Flow Damping

    Configure process measurement Specify Base Time Unit. Base Time Unit is the existing time unit that the special unit will be based on. Calculate Mass Flow Conversion Factor as follows: a. x base units = y special units b. Mass Flow Conversion Factor = x ÷ y The original mass flow rate value is divided by this value.

  • Page 26: Configure Mass Flow Cutoff

    Configure process measurement The default value is 0.8 seconds. The range depends on the core processor type and the setting of Update Rate, as shown in the following table. Update Rate setting Damping range Normal 0 to 51.2 seconds Special 0 to 40.96 seconds The value you enter is automatically rounded off to the nearest valid value.
  • Page 27 Configure process measurement Overview Mass Flow Cutoff specifies the lowest mass flow rate that will be reported as measured. All mass flow rates below this cutoff will be reported as 0. Procedure Set Mass Flow Cutoff to the value you want to use. The default value for Mass Flow Cutoff is 0.0 g/sec or a sensor-specific value set at the factory.

  • Page 28: Configure Volume Flow Measurement For Liquid Applications

    Configure process measurement • Mass Flow Cutoff: 10 g/sec Result: • If the mass flow rate drops below 15 g/sec but not below 10 g/sec: The mA Output will report zero flow. The Frequency Output will report the actual flow rate, and the actual flow rate will be used in all internal processing.

  • Page 29: Configure Volume Flow Measurement Unit For Liquid Applications

    Configure process measurement 4.2.2 Configure Volume Flow Measurement Unit for liquid applications ProLink III Device Tools > Configuration > Process Measurement > Flow Field Communicator Configure > Manual Setup > Measurements > Flow > Volume Flow Unit Overview Volume Flow Measurement Unit specifies the unit of measurement that will be displayed for the volume flow rate.
  • Page 30 Configure process measurement Label Unit description ProLink III Field Communicator US gal/min gal/min U.S. gallons per minute US gal/hr gal/h U.S. gallons per hour US gal/day gal/d U.S. gallons per day mil US gal/day MMgal/d Million U.S. gallons per day Liters per second l/sec Liters per minute...

  • Page 31: Configure Volume Flow Cutoff

    Configure process measurement Procedure Specify Base Volume Unit. Base Volume Unit is the existing volume unit that the special unit will be based on. Specify Base Time Unit. Base Time Unit is the existing time unit that the special unit will be based on. Calculate Volume Flow Conversion Factor as follows: a.
  • Page 32 Configure process measurement Procedure Set Volume Flow Cutoff to the value you want to use. The default value for Volume Flow Cutoff is 0.0 l/sec (liters per second). The lower limit is Interaction between Volume Flow Cutoff and mAO Cutoff Volume Flow Cutoff defines the lowest liquid volume flow value that the transmitter will report as measured.

  • Page 33: Configure Gsv Flow Measurement

    Configure process measurement Configure GSV flow measurement The gas standard volume (GSV) flow measurement parameters control how volume flow is measured and reported in a gas application. Restriction You cannot implement both liquid volume flow and gas standard volume flow at the same time. Choose one or the other.
  • Page 34 Configure process measurement Procedure From the Source field, choose the method to supply gas base density data and perform the required setup. Option Description Fixed Value or Digital A host writes gas base density data to the meter at appropriate intervals. Communications Continue to Configure fixed value or digital...

  • Page 35: Configure Gas Standard Volume Flow Unit

    Configure process measurement Option Description Poll as Secondary Other HART masters will be on the network. Set External Device Tag n to the HART tag of the device being polled. The n is the value you selected in the Polling Slot field. •...
  • Page 36 Configure process measurement The default setting for Gas Standard Volume Flow Unit is SCFM (Standard Cubic Feet per Minute). If the measurement unit you want to use is not available, you can define a special measurement unit. Options for Gas Standard Volume Flow Unit The transmitter provides a standard set of measurement units for Gas Standard Volume Flow Unit, plus one user-defined special measurement unit.
  • Page 37 Configure process measurement Define a special measurement unit for gas standard volume flow ProLink III Device Tools > Configuration > Process Measurement > Flow > Special Units Field Communicator Configure > Manual Setup > Measurements > Special Units > Special GSV Units Overview A special measurement unit is a user-defined unit of measure that allows you to report process data, totalizer data, and inventory data in a unit that is not available in the...

  • Page 38: Configure Gas Standard Volume Flow Cutoff

    Configure process measurement Set Gas Standard Volume Flow Conversion Factor to 0.001. Set Gas Standard Volume Flow Label to MSCFM. Set Gas Standard Volume Total Label to MSCF. 4.3.4 Configure Gas Standard Volume Flow Cutoff ProLink III Device Tools > Configuration > Process Measurement > Flow Field Communicator Configure >...

  • Page 39: Configure Flow Direction

    Configure process measurement Result: If the gas standard volume flow rate drops below 15 SLPM, the volume flow will be reported as 0, and 0 will be used in all internal processing. Example: Cutoff interaction with mA Output Cutoff higher than Gas Standard Volume Flow Cutoff Configuration: •...

  • Page 40: Options For Flow Direction

    Configure process measurement The default setting is Forward. 4.4.1 Options for Flow Direction Flow Direction setting Relationship to Flow Direction arrow ProLink III Field Communicator on sensor Forward Forward Appropriate when the Flow Direction ar- row is in the same direction as the major- ity of flow.
  • Page 41 Configure process measurement Figure 4-1: Effect of Flow Direction on the mA Output: Lower Range Value = 0 Flow Direction = Forward Flow Direction = Reverse, Negate Forward Flow Direction = Absolute Value, Bidirectional, Negate Bidirectional Reverse flow Forward flow Reverse flow Forward flow Reverse flow...
  • Page 42 Configure process measurement Result: • Under conditions of zero flow, the mA Output is 4 mA. • Under conditions of forward flow, up to a flow rate of 100 g/sec, the mA Output varies between 4 mA and 20 mA in proportion to the flow rate. •...
  • Page 43 Configure process measurement Effect of flow direction on Frequency Outputs Flow direction affects how the transmitter reports flow values via the Frequency Outputs. The Frequency Outputs are affected by flow direction only if Frequency Output Process Variable is set to a flow variable. Table 4-1: Effect of the flow direction parameter and actual flow direction on Frequency Outputs...

  • Page 44: Configure Density Measurement

    Configure process measurement Table 4-3: Effect of the flow direction on flow values Actual flow direction Flow Direction setting Forward Zero flow Reverse Forward Positive Negative Reverse Positive Negative Bidirectional Positive Negative Absolute Value Positive Positive Negate Forward Negative Positive Negate Bidirectional Negative Positive...

  • Page 45: Configure Two-Phase Flow Parameters

    Configure process measurement Procedure Set Density Measurement Unit to the option you want to use. The default setting for Density Measurement Unit is g/cm3 (grams per cubic centimeter). Options for Density Measurement Unit The transmitter provides a standard set of measurement units for Density Measurement Unit.
  • Page 46 Configure process measurement Procedure Set Two-Phase Flow Low Limit to the lowest density value that is considered normal in your process. Values below this will cause the transmitter to post Alert A105 (Two-Phase Flow). Gas entrainment can cause your process density to drop temporarily. To reduce the occurrence of two-phase flow alerts that are not significant to your process, set Two-Phase Flow Low Limit slightly below your expected lowest process density.

  • Page 47: Configure Density Damping

    Configure process measurement • The two-phase flow alert is deactivated, but remains in the active alert log until it is acknowledged. If the two-phase flow condition does not clear before Two-Phase Flow Timeout expires, the outputs that represent flow rate report a flow rate of 0. If Two-Phase Flow Timeout is set to 0.0 seconds, the outputs that represent flow rate will report a flow rate of 0 as soon as two-phase flow is detected.

  • Page 48: Configure Density Cutoff

    Configure process measurement • In general, lower damping values are preferable because there is less chance of data loss, and less lag time between the actual measurement and the reported value. The value you enter is automatically rounded off to the nearest valid value. The valid values for Density Damping depend on the setting of Update Rate.

  • Page 49: Configure Temperature Measurement

    Configure process measurement Configure temperature measurement The temperature measurement parameters control how temperature data from the sensor is reported. 4.6.1 Configure Temperature Measurement Unit ProLink III Device Tools > Configuration > Process Measurement > Temperature Field Communicator Configure > Manual Setup > Measurements > Temperature > Temperature Unit Overview Temperature Measurement Unit specifies the unit that will be used for temperature measurement.

  • Page 50: Effect Of Temperature Damping On Process Measurement

    Configure process measurement Damping is used to smooth out small, rapid fluctuations in process measurement. Damping Value specifies the time period (in seconds) over which the transmitter will spread changes in the process variable. At the end of the interval, the internal value will reflect 63% of the change in the actual measured value.

  • Page 51: Configure Pressure Compensation Using Prolink Iii

    Configure process measurement Not all sensors or applications require pressure compensation. The pressure effect for a specific sensor model can be found in the product data sheet located at www.emerson.com. If you are uncertain about implementing pressure compensation, contact customer service.

  • Page 52: Configure Pressure Compensation Using The Field Communicator

    Configure process measurement Option Description Fixed Value or Digital Communi- The transmitter will use the pressure value that it reads from cations memory. • Fixed Value: The configured value is used. • Digital Communications: A host writes transmitter data to transmitter memory. If you chose to poll for pressure data: a.
  • Page 53 Configure process measurement The flow factor is the percent change in the flow rate per PSI. When entering the value, reverse the sign. Example: If the flow factor is 0.000004 % per PSI, enter −0.000004 % per PSI. Enter Dens Press Factor for your sensor. The density factor is the change in fluid density, in g/cm /PSI.

  • Page 54: Options For Pressure Measurement Unit

    Configure process measurement 4.7.3 Options for Pressure Measurement Unit The transmitter provides a standard set of measurement units for Pressure Measurement Unit. Different communications tools may use different labels for the units. In most applications, Pressure Measurement Unit should be set to match the pressure measurement unit used by the remote device.

  • Page 55: Configure Device Options And Preferences

    Configure device options and preferences Configure device options and preferences Topics covered in this chapter: • Configure response time parameters • Configure alert handling • Configure informational parameters Configure response time parameters You can configure the rate at which process data is polled and process variables are calculated.
  • Page 56 Configure device options and preferences Option Description Normal All process data is polled at the rate of 20 times per second (20 Hz). All process variables are calculated at 20 Hz. This option is appropriate for most applications. Special A single, user-specified process variable is polled at the rate of 100 times per sec- ond (100 Hz).

  • Page 57: Configure Response Time

    Configure device options and preferences Table 5-1: Special mode and process variable updates Updated only when the petroleum measurement application is disa- Always polled and updated bled Never updated • Mass flow • RPO amplitude All other process variables and calibra- •...

  • Page 58: Configure Alert Handling

    Configure device options and preferences Option Description Low Filtering - Fastest Re- Transmitter calculates process variables at the fastest speed. sponse High Filtering - Smoothest Transmitter calculates process variables at the smoothest (least noisy) Output response to changes in the process. Service For factory use only.

  • Page 59: Configure Status Alert Severity

    Configure device options and preferences 5.2.2 Configure Status Alert Severity ProLink III Device Tools > Configuration > Alert Severity Field Communicator Configure > Alert Setup > Alert Severity > Set Alert Severity Overview Use Status Alert Severity to control the fault actions that the transmitter performs when it detects an alert condition.
  • Page 60 Configure device options and preferences Status alerts and options for Status Alert Severity Table 5-2: Status alerts and Status Alert Severity Alert code Status message Default severity Notes Configurable? Fault A001 EEPROM Error Fault A002 RAM Error Fault A003 No Sensor Response Fault A004 Temperature Overrange...
  • Page 61 Configure device options and preferences Table 5-2: Status alerts and Status Alert Severity (continued) Alert code Status message Default severity Notes Configurable? Fault A031 Low Power Applies only to flowmeters with the enhanced core processor. A032 Meter Verification in Pro- Varies Applies only to transmitters with gress: Outputs to Fault...

  • Page 62: Configure Informational Parameters

    Configure device options and preferences Table 5-2: Status alerts and Status Alert Severity (continued) Alert code Status message Default severity Notes Configurable? Informational A118 Discrete Output 1 Fixed Can be set to either Informational or Ignore, but cannot be set to Fault. Informational A119 Discrete Output 2 Fixed...

  • Page 63: Configure Sensor Material

    Configure device options and preferences 5.3.2 Configure Sensor Material ProLink III Device Tools > Configuration > Informational Parameters > Sensor Field Communicator Configure > Manual Setup > Info Parameters > Sensor Information > Tube Wetted Mate- rial Overview Sensor Material lets you store the type of material used for your sensor’s wetted parts in transmitter memory.

  • Page 64: Configure Descriptor

    Configure device options and preferences Overview Sensor Flange Type lets you store your sensor’s flange type in transmitter memory. This parameter is not used in processing and is not required. Procedure Obtain your sensor’s flange type from the documents shipped with your sensor, or from a code in the sensor model number.

  • Page 65: Configure Date

    Configure device options and preferences 5.3.7 Configure Date ProLink III Device Tools > Configuration > Informational Parameters > Transmitter Field Communicator Configure > Manual Setup > Info Parameters > Transmitter Info > Date Overview Date lets you store a static date (not updated by the transmitter) in transmitter memory. This parameter is not used in processing and is not required.
  • Page 66 Configure device options and preferences Micro Motion Model 1500 Transmitters with Analog Outputs...

  • Page 67: Integrate The Meter With The Control System

    Integrate the meter with the control system Integrate the meter with the control system Topics covered in this chapter: • Configure the transmitter channels • Configure the mA Output • Configure the Frequency Output • Configure the Discrete Output • Configure events •...

  • Page 68: Configure The Ma Output

    Integrate the meter with the control system Postrequisites For each channel that you configured, perform or verify the corresponding input or output configuration. When the configuration of a channel is changed, the channel’s behavior will be controlled by the configuration that is stored for the selected input or output type, and the stored configuration may not be appropriate for your process.
  • Page 69 Integrate the meter with the control system The default setting is Mass Flow Rate. Postrequisites If you changed the setting of mA Output Process Variable, verify the settings of Lower Range Value (LRV) and Upper Range Value (URV). Options for mA Output Process Variable The transmitter provides a basic set of options for mA Output Process Variable, plus several application-specific options.

  • Page 70: Configure Lower Range Value (Lrv) And Upper Range Value (Urv)

    Integrate the meter with the control system 6.2.2 Configure Lower Range Value (LRV) and Upper Range Value (URV) ProLink III Device Tools > Configuration > I/O > Outputs > mA Output Field Communicator • Configure > Manual Setup > Inputs/Outputs > mA Output > mA Output Settings > •...

  • Page 71: Configure Ao Cutoff

    Integrate the meter with the control system The mA Output uses a range of 4–20 mA to represent mA Output Process Variable. Between LRV and URV, the mA Output is linear with the process variable. If the process variable drops below LRV or rises above URV, the transmitter posts an output saturation alert.

  • Page 72: Configure Added Damping

    Integrate the meter with the control system Interaction between AO Cutoff and process variable cutoffs When mA Output Process Variable is set to a flow variable (for example, mass flow rate or volume flow rate), AO Cutoff interacts with Mass Flow Cutoff or Volume Flow Cutoff. The transmitter puts the cutoff into effect at the highest flow rate at which a cutoff is applicable.
  • Page 73 Integrate the meter with the control system Damping is used to smooth out small, rapid fluctuations in process measurement. Damping Value specifies the time period (in seconds) over which the transmitter will spread changes in the process variable. At the end of the interval, the internal value will reflect 63% of the change in the actual measured value.

  • Page 74: Configure Ma Output Fault Action And Ma Output Fault Level

    Integrate the meter with the control system Example: Damping interaction Configuration: • Flow Damping = 1 second • mA Output Source = Mass Flow Rate • mA Output Damping = 2 seconds Result: A change in the mass flow rate will be reflected in the mA Output over a time period that is greater than 3 seconds.

  • Page 75: Configure The Frequency Output

    Integrate the meter with the control system Postrequisites CAUTION! If you set mA Output Fault Action or Frequency Output Fault Action to None, be sure to set Digital Communications Fault Action to None. If you do not, the output will not report actual process data, and this may result in measurement errors or unintended consequences for your process.

  • Page 76: Configure Frequency Output Polarity

    Integrate the meter with the control system 6.3.1 Configure Frequency Output Polarity ProLink III Device Tools > Configuration > I/O > Outputs > Frequency Output Field Communicator Configure > Manual Setup > Inputs/Outputs > Frequency Output > FO Settings > FO Po- larity Overview Frequency Output Polarity controls how the output indicates the ON (active) state.
  • Page 77 Integrate the meter with the control system Option Description Frequency=Flow (default) Frequency calculated from flow rate Pulses/Unit A user-specified number of pulses represents one flow unit Units/Pulse A pulse represents a user-specified number of flow units Set additional required parameters. •...

  • Page 78: Configure Frequency Output Fault Action And Frequency Output Fault Level

    Integrate the meter with the control system 6.3.3 Configure Frequency Output Fault Action and Frequency Output Fault Level ProLink III Device Tools > Configuration > Fault Processing Field Communicator • Configure > Manual Setup > Inputs/Outputs > Frequency Output > FO Fault Parame- ters >...

  • Page 79: Configure The Discrete Output

    Integrate the meter with the control system CAUTION! If you set mA Output Fault Action or Frequency Output Fault Action to None, be sure to set Digital Communications Fault Action to None. If you do not, the output will not report actual process data, and this may result in measurement errors or unintended consequences for your process.
  • Page 80 Integrate the meter with the control system Options for Discrete Output Source Label Discrete Output volt- Option ProLink III Field Communicator State Enhanced Event 1 Discrete Event x Site-specific Discrete Event 1–5 Enhanced Event 2 Enhanced Event 3 Enhanced Event 4 Enhanced Event 5 Event 1 Event 1–2...

  • Page 81: Configure Discrete Output Polarity

    Integrate the meter with the control system Overview Flow Switch is used to indicate that the flow rate (measured by the configured flow variable) has moved past the configured setpoint, in either direction. The flow switch is implemented with a user-configurable hysteresis. Procedure Set Discrete Output Source to Flow Switch, if you have not already done so.

  • Page 82: Configure Discrete Output Fault Action

    Integrate the meter with the control system Options for Discrete Output Polarity Polarity option Description Active High • When asserted (condition tied to DO is true), the circuit provides a pull-up to 24 V. • When not asserted (condition tied to DO is false), the circuit provides 0 V.

  • Page 83: Configure Events

    Integrate the meter with the control system Options for Discrete Output Fault Action Label Discrete Output behavior Upscale • Fault: Discrete Output is ON (site-specific voltage) • No fault: Discrete Output is controlled by its assign- ment Downscale • Fault: Discrete Output is OFF (0 V) •...

  • Page 84: Configure An Enhanced Event

    Integrate the meter with the control system Specify Event Type. Option Description x > A The event occurs when the value of the assigned process variable (x) is greater than the setpoint (Setpoint A), endpoint not included. x < A The event occurs when the value of the assigned process variable (x) is less than the setpoint (Setpoint A), endpoint not included.
  • Page 85 Integrate the meter with the control system Option Description x ≤ A or x ≥ B The event occurs when the value of the assigned process variable (x) is out of range, that is, less than Setpoint A or greater than Setpoint B, end- points included.

  • Page 86: Configure Digital Communications

    Integrate the meter with the control system Configure digital communications The digital communications parameters control how the transmitter will communicate using digital communications. Your transmitter supports the following types of digital communications: • HART/Bell 202 over the primary mA terminals •...
  • Page 87 Integrate the meter with the control system Procedure Set HART Address to a value that is unique on your network. • Default: 0 • Range: 0 to 15 Tips • The default address is typically used unless you are in a multidrop environment. •...
  • Page 88 Integrate the meter with the control system Set Burst Mode Output as desired. Label ProLink III Field Communicator Description Source (Primary Variable) The transmitter sends the primary variable (PV) in the con- figured measurement units in each burst (e.g., 14.0 g/sec, 13.5 g/sec, 12.0 g/sec.
  • Page 89 Integrate the meter with the control system Options for HART variables Table 6-6: Standard HART process variables Process variable Primary Varia- Secondary Third Variable Fourth Varia- ble (PV) Variable (SV) (TV) ble (QV ) ✓ ✓ ✓ ✓ Gas Standard Volume Flow Rate ✓...
  • Page 90 Integrate the meter with the control system Table 6-7: PVR-only HART process variables (continued) Process variable Primary Varia- Secondary Third Variable Fourth Varia- ble (PV) Variable (SV) (TV) ble (QV ) ✓ Water Total @ Line Table 6-8: TMR-only HART process variables Process variable Primary Varia- Secondary...

  • Page 91: Configure Modbus/Rs-485 Communications

    Integrate the meter with the control system 6.6.2 Configure Modbus/RS-485 communications ProLink III Device Tools > Configuration > Communications > RS-485 Terminals Field Communicator Configure > Manual Setup > Inputs/Outputs > Communications > Set Up RS-485 Port Overview Modbus/RS-485 communications parameters control Modbus communication with the transmitter's RS-485 terminals.

  • Page 92: Configure Digital Communications Fault Action

    Integrate the meter with the control system Table 6-12: Bit structure of floating-point bytes Byte Bits Definition SEEEEEEE S=Sign E=Exponent EMMMMMMM E=Exponent M=Mantissa MMMMMMMM M=Mantissa MMMMMMMM M=Mantissa (Optional) Set Additional Communications Response Delay in delay units. A delay unit is 2/3 of the time required to transmit one character, as calculated for the port currently in use and the character transmission parameters.
  • Page 93 Integrate the meter with the control system • If you set Digital Communications Fault Action to NAN, you cannot set mA Output Fault Action or Frequency Output Fault Action to None. If you try to do this, the transmitter will not accept the configuration.
  • Page 94 Integrate the meter with the control system Restriction If Digital Communications Fault Action is set to NAN (not a number), you cannot set mA Output Fault Action or Frequency Output Fault Action to None. If you try to do this, the transmitter will not accept the configuration.

  • Page 95: Complete The Configuration

    Complete the configuration Complete the configuration Topics covered in this chapter: • Test or tune the system using sensor simulation • Back up transmitter configuration • Enable write‐protection on the transmitter configuration Test or tune the system using sensor simulation Use sensor simulation to test the system's response to a variety of process conditions, including boundary conditions, problem conditions, or alert conditions, or to tune the loop.

  • Page 96: Sensor Simulation

    Complete the configuration For density, set Wave Form as desired and enter the required values. Option Required values Fixed Fixed Value Sawtooth Period Minimum Maximum Sine Period Minimum Maximum For temperature, set Wave Form as desired and enter the required values. Option Required values Fixed...

  • Page 97: Back Up Transmitter Configuration

    Complete the configuration • All mass, temperature, density, or volume values logged to Data Logger Sensor simulation does not affect any diagnostic values. Unlike actual mass flow rate and density values, the simulated values are not temperature- compensated (adjusted for the effect of temperature on the sensor’s flow tubes). Back up transmitter configuration ProLink III provides a configuration upload/download function which allows you to save configuration sets to your PC.
  • Page 98 Complete the configuration Micro Motion Model 1500 Transmitters with Analog Outputs...

  • Page 99: Part Iii Operations, Maintenance, And Troubleshooting

    Operations, maintenance, and troubleshooting Part III Operations, maintenance, and troubleshooting Chapters covered in this part: • Transmitter operation • Measurement support • Troubleshooting Configuration and Use Manual...
  • Page 100 Operations, maintenance, and troubleshooting Micro Motion Model 1500 Transmitters with Analog Outputs...

  • Page 101: Chapter 8 Transmitter Operation

    Transmitter operation Transmitter operation Topics covered in this chapter: • Record the process variables • View process variables • View transmitter status using the status LED • View and acknowledge status alerts • Read totalizer and inventory values • Start and stop totalizers and inventories •...

  • Page 102: View Process Variables

    Transmitter operation View process variables ProLink III View the desired variable on the main screen under Process Variables. See Section 8.2.1 for more information. Field Communicator Overview > Shortcuts > Variables > Process Variables Overview Process variables provide information about the state of the process fluid, such as flow rate, density, and temperature, as well as running totals.

  • Page 103: View And Acknowledge Status Alerts

    Transmitter operation Table 8-1: Status LED states (continued) LED state Alarm condition Description Flashing yellow No alarm • Zero calibration procedure is in progress • Loop test is in progress Solid yellow Low-severity alarm Alarm condition that will not cause measure- ment error (outputs continue to report proc- ess data) Solid red...

  • Page 104: View Alerts Using The Field Communicator

    Transmitter operation Postrequisites • To clear the following alerts, you must correct the problem, acknowledge the alert, then power-cycle the transmitter: A001, A002, A010, A011, A012, A013, A018, A019, A022, A023, A024, A025, A028, A029, A031. • For all other alerts: If the alert is inactive when it is acknowledged, it will be removed from the list.

  • Page 105: Read Totalizer And Inventory Values

    Transmitter operation Transmitter action if condition occurs Alert data structure Contents Clearing Alert Statistics One record for each alert (by alert number) Not cleared; maintained across transmitter that has occurred since the last master reset. power cycles Each record contains: •...

  • Page 106: Reset Totalizers

    Transmitter operation Important Totalizers and inventories are started or stopped as a group. When you start any totalizer, all other totalizers and all inventories are started simultaneously. When you stop any totalizer, all other totalizers and all inventories are stopped simultaneously. You cannot start or stop inventories directly.
  • Page 107 Transmitter operation When you reset a single inventory, the values of other inventories are not reset. Totalizer values are not reset. Prerequisites To use ProLink III to reset the inventories, the feature must be enabled. • To enable inventory reset in ProLink III: 1.
  • Page 108 Transmitter operation Micro Motion Model 1500 Transmitters with Analog Outputs...

  • Page 109: Chapter 9 Measurement Support

    Measurement support Measurement support Topics covered in this chapter: • Options for measurement support • Use Smart Meter Verification (SMV) • Use PVR, TBR, and TMR • Piecewise linearization (PWL) for calibrating gas meters • Zero the meter • Validate the meter •...

  • Page 110: Use Smart Meter Verification (Smv)

    Measurement support Use Smart Meter Verification (SMV) You can run an SMV test, view and interpret the results, and set up automatic execution. 9.2.1 SMV requirements To use SMV, the transmitter must be paired with an enhanced core processor. Table 9‐1 for the minimum version of the transmitter, enhanced core processor, and communication tool needed to support SMV.

  • Page 111: Run Smv

    Measurement support SMV has an output mode called Continuous Measurement that allows the transmitter to keep measuring while the test is in progress. If you choose to run the test in Last Measured Value or Fault modes instead, the transmitter outputs will be held constant for the two minute duration of the test.

  • Page 112: View Test Data

    Measurement support Run an SMV test using the Field Communicator Navigate to the Smart Meter Verification menu: • Overview > Shortcuts > Meter Verification • Service Tools > Maintenance > Routine Maintenance > Meter Verification Choose Manual Verification. Choose Start. Set output behavior as desired, and press OK if prompted.
  • Page 113 Measurement support • Current process values for mass flow rate, volume flow rate, density, temperature, and external pressure • Customer and test descriptions (if entered by the user) You can use ProLink III to run a test that displays a test result chart and a test report at the completion of the test.
  • Page 114 Measurement support Understanding SMV results When the SMV test is completed, the result is reported as Pass, Fail, or Abort. (Some tools report the Fail result as Advisory instead.) Pass Smart Meter Verification does a statistical check between the factory baseline value and the current Smart Meter Verification result.

  • Page 115: Schedule Automatic Execution Of The Smv Test

    Measurement support 9.2.5 Schedule automatic execution of the SMV test You can set up and run a single test at a user-defined future time. You can also set up and run tests on a regular schedule. Manage scheduled test execution using ProLink III Choose Device Tools >...

  • Page 116: Pvr, Tbr, And Tmr Applications

    Measurement support • An 800 Enhanced Core Processor version 4.4 and later • HART with HART 7 enabled in order to view process variables over HART (default) Restriction PVR, TBR, and TMR process variables are available only over HART with HART 7 enabled (default).

  • Page 117: Piecewise Linearization (Pwl) For Calibrating Gas Meters

    PWL does not apply when measuring liquid flow. When better accuracy is required over the published gas measurement specifications, an Emerson-approved independent gas laboratory can calibrate gas up to 10 PWL adjustment points.

  • Page 118: Validate The Meter

    Measurement support • Set Zero Time to a lower value, then retry. • If the zero continues to fail, contact customer service. Validate the meter ProLink III Device Tools > Configuration > Process Measurement > Flow Device Tools > Configuration > Process Measurement > Density Field Communicator Configure >...

  • Page 119: Alternate Method For Calculating The Meter Factor For Volume Flow

    Measurement support Important For good results, the reference device must be highly accurate. Procedure Determine the meter factor as follows: a. Set the meter factor to 1 to take a sample measurement. b. Measure the same sample using the reference device. c.

  • Page 120: Perform A (Standard) D1 And D2 Density Calibration

    Measurement support Procedure Calculate the meter factor for density, using the standard method (see Section 9.6). Calculate the meter factor for volume flow from the meter factor for density: MeterFactor Volume MeterFactor Density Note The following equation is mathematically equivalent to the first equation. You may use whichever version you prefer.

  • Page 121: Perform A D1 And D2 Density Calibration Using Prolink Iii

    Measurement support • If LD Optimization is enabled on your meter, disable it. To do this, choose Configure > Manual Setup > Measurements > LD Optimization. LD Optimization is used only with large sensors in hydrocarbon applications. In some installations, only customer service has access to this parameter.

  • Page 122: Perform A D1 And D2 Density Calibration Using The Field Communicator

    Measurement support Postrequisites If you disabled LD Optimization before the calibration procedure, re-enable it. 9.7.2 Perform a D1 and D2 density calibration using the Field Communicator Read the Prerequistes on page 114 if you have not already done so. See the following figure. Postrequisites If you disabled LD Optimization before the calibration procedure, re-enable it.

  • Page 123: Perform A D3 And D4 Density Calibration (T-Series Sensors Only)

    Measurement support Perform a D3 and D4 density calibration (T- Series sensors only) For T-Series sensors, the optional D3 and D4 calibration could improve the accuracy of the density measurement if the density of your process fluid is less than 0.8 g/cm or greater than 1.2 g/cm If you perform the D3 and D4 calibration, note the following:...

  • Page 124: Perform A D3 Or D3 And D4 Density Calibration Using The Field Communicator

    Measurement support Figure 9-1: D3 or D3 and D4 density calibration using ProLink III Close shutoff valve downstream from sensor D3 Calibration D4 Calibration Fill sensor with D3 fluid Fill sensor with D4 fluid Device Tools > Device Tools > Calibration >...

  • Page 125: Perform Temperature Calibration

    Measurement support Figure 9-2: D3 or D3 and D4 density calibration using the Field Communicator D3 Calibration D4 Calibration Close shutoff valve Fill sensor with D3 fluid Fill sensor with D4 fluid downstream from sensor On-Line Menu > Service Tools > Service Tools >...
  • Page 126 Measurement support Prerequisites The temperature calibration is a two-part procedure: temperature offset calibration and temperature slope calibration. The two parts must be performed without interruption, in the order shown. Ensure that you are prepared to complete the process without interruption. You will need a low-temperature calibration fluid and a high-temperature calibration fluid.

  • Page 127: Chapter 10 Troubleshooting

    Troubleshooting Troubleshooting Topics covered in this chapter: • Status LED states • Status alerts, causes, and recommendations • Flow measurement problems • Density measurement problems • Temperature measurement problems • Milliamp output problems • Frequency Output problems • Using sensor simulation for troubleshooting •...

  • Page 128: Status Led States

    Troubleshooting 10.1 Status LED states The status LED on the transmitter indicates whether or not alerts are active. If alerts are active, view the alert list to identify the alerts, then take appropriate action to correct the alert condition. Table 10-1: Status LED states LED state Alarm condition...
  • Page 129 Troubleshooting Alert num- Alert title Possible cause Recommended actions A004 Temperature Over- The RTD resistance is out of range • Check your process conditions against range for the sensor. The tube RTD resist- the values reported by the device. ance is out of range for the sensor. •...
  • Page 130 Troubleshooting Alert num- Alert title Possible cause Recommended actions A009 Transmitter Initializ- Transmitter is in power-up mode. • Allow the meter to complete its power- ing/Warming Up up sequence. The alert should clear au- This alert often occurs in conjunc- tomatically.
  • Page 131 Troubleshooting Alert num- Alert title Possible cause Recommended actions A013 Zero Calibration There was too much process insta- • Remove or reduce sources of electro- Failed: Unstable bility during the calibration proce- mechanical noise (e.g., pumps, vibra- dure. tion, pipe stress), cycle power to the meter, then retry the procedure.
  • Page 132 Troubleshooting Alert num- Alert title Possible cause Recommended actions A021 Transmitter/Sensor/ The configured board type does not • Verify all of the characterization or cali- Software Mismatch match the physical board, or the bration parameters. See the sensor tag configured sensor type does not or the calibration sheet for your meter.
  • Page 133 Troubleshooting Alert num- Alert title Possible cause Recommended actions A032 Meter Verification in A meter verification test is in pro- • Allow the procedure to complete. Progress: Outputs to gress, with outputs set to Fault. Fault A033 Insufficient Pickoff The signal from the sensor pick- •...
  • Page 134 Troubleshooting Alert num- Alert title Possible cause Recommended actions A102 Drive Overrange The drive power (current/voltage) is • Check the drive gain and the pickoff at its maximum. voltage. • Check the wiring between the sensor and the transmitter. • Verify that internal wiring is secure and that there are no internal electrical problems.
  • Page 135 Troubleshooting Alert num- Alert title Possible cause Recommended actions A110 Frequency Output The calculated Frequency Output is • Check the Frequency Output scaling. Saturated outside the configured range. • Check process conditions. Actual condi- tions may be outside the normal condi- tions for which the output is config- ured.

  • Page 136: Flow Measurement Problems

    Troubleshooting Alert num- Alert title Possible cause Recommended actions A131 Meter Verification in A meter verification test is in pro- • Allow the procedure to complete. Progress: Outputs to gress, with outputs set to Last Meas- Last Measured Value ured Value. Density D1 Calibra- A D1 density calibration is in pro- •...
  • Page 137 Troubleshooting Problem Possible causes Recommended actions Erratic non-zero flow • Leaking valve or seal • Verify that the sensor orientation is appro- rate at no-flow condi- • Two-phase flow priate for your application (refer to the tions • Plugged or coated sensor tube sensor installation manual).

  • Page 138: Density Measurement Problems

    Troubleshooting Problem Possible causes Recommended actions Inaccurate flow rate • Wiring problem • Check the wiring between the sensor and or batch total • Inappropriate measurement unit the transmitter. • Incorrect flow calibration factor • Verify that the measurement units are con- •...

  • Page 139: Temperature Measurement Problems

    Troubleshooting Problem Possible causes Recommended actions Unusually high densi- • Plugged or coated sensor tube • Ensure that all of the calibration parame- ty reading • Incorrect density calibration factors ters have been entered correctly. See the • Incorrect temperature measurement sensor tag or the calibration sheet for your •...

  • Page 140: Milliamp Output Problems

    Troubleshooting Problem Possible causes Recommended actions Temperature reading • Sensor temperature not yet equalized • If the error is within the temperature speci- slightly different from • Sensor leaking heat fication for the sensor, there is no prob- process temperature lem.
  • Page 141 Troubleshooting Table 10-2: Milliamp output problems and recommended actions (continued) Problem Possible causes Recommended actions mA Output below • Open in wiring • Check your process conditions against the 4 mA • Bad output circuit values reported by the device. •...

  • Page 142: Frequency Output Problems

    Troubleshooting 10.7 Frequency Output problems Table 10-3: Frequency Output problems and recommended actions Problem Possible causes Recommended actions No Frequency Output • Stopped totalizer • Verify that the process conditions are be- • Process condition below cutoff low the low-flow cutoff. Reconfigure the •...

  • Page 143: Check Power Supply Wiring

    Troubleshooting Important When sensor simulation is active, the simulated value is used in all transmitter outputs and calculations, including totals and inventories, volume flow calculations, and concentration calculations. Disable all automatic functions related to the transmitter outputs and place the loop in manual operation.

  • Page 144: Check Sensor-To-Transmitter Wiring

    Troubleshooting If there is no power, contact customer service. 10.10 Check sensor-to-transmitter wiring A number of power-supply and output problems may occur if the wiring between the sensor and the transmitter is improperly connected, or if the wiring becomes damaged. Be sure to check all wiring segments: •...

  • Page 145: Perform Loop Tests

    Troubleshooting Procedure Refer to the sensor and transmitter installation manuals for grounding requirements and instructions. 10.12 Perform loop tests A loop test is a way to verify that the transmitter and the remote device are communicating properly. A loop test also helps you know whether you need to trim mA Outputs.

  • Page 146: Perform Loop Tests Using The Field Communicator

    Troubleshooting Test the Frequency Output(s). a. Choose Device Tools > Diagnostics > Testing > Frequency Output Test. b. Enter the Frequency Output value in Fix to. c. Click Fix FO. d. Read the frequency signal at the receiving device and compare it to the transmitter output.

  • Page 147: Check The Hart Communication Loop

    Troubleshooting d. Select 20 mA. e. Read the mA current at the receiving device and compare it to the transmitter output. The readings do not need to match exactly. If the values are slightly different, you can correct the discrepancy by trimming the output. f.

  • Page 148: Check Hart Address And Ma Output Action

    Troubleshooting Prerequisites You will need: • A copy of your transmitter installation manual • A 250–600 Ω resistor • A Field Communicator • Optional: the HART Application Guide, available at www.hartcomm.org Procedure Verify that the loop wires are connected as shown in the wiring diagrams in the transmitter installation manual.

  • Page 149: Check Hart Burst Mode

    Troubleshooting The default address is 0. This is the recommended value unless the transmitter is in a multidrop network. Set mA Output Action to Live. 10.15 Check HART burst mode HART burst mode is normally disabled, and should be enabled only if a HART Triloop is being used.

  • Page 150: Check For Radio Frequency Interference (Rfi)

    Troubleshooting Restriction For some status alerts, Alert Severity is not configurable. If there are no active fault conditions, continue troubleshooting. 10.19 Check for radio frequency interference (RFI) The transmitter's Frequency Output or Discrete Output can be affected by radio frequency interference (RFI).

  • Page 151: Check Flow Direction

    Troubleshooting Restriction For some status alerts, Alert Severity is not configurable. If there are no active fault conditions, continue troubleshooting. 10.22 Check Flow Direction If Flow Direction is set inappropriately for your process, the transmitter may report flow data that is not appropriate for your requirements. The Flow Direction parameter interacts with actual flow direction to affect flow values, flow totals and inventories, and output behavior.

  • Page 152: Check The Drive Gain

    Troubleshooting Check the process for cavitation, flashing, or leaks. Monitor the density of your process fluid output under normal process conditions. Check the settings of Two-Phase Flow Low Limit, Two-Phase Flow High Limit, and Two-Phase Flow Timeout. You can reduce the occurrence of two-phase flow alerts by setting Two-Phase Flow Low Limit to a lower value, Two-Phase Flow High Limit to a higher value, or Two-Phase Flow Timeout to a higher value.

  • Page 153: Collect Drive Gain Data

    Troubleshooting Table 10-4: Possible causes and recommended actions for excessive (saturated) drive gain (continued) Possible cause Recommended actions Plugged sensor tube Check the pickoff voltages (see Section 10.26). If either of them are close to zero (but neither is zero), plugged tubes may be the source of your prob- lem.

  • Page 154: Collect Pickoff Voltage Data

    Troubleshooting To know whether your pickoff voltage is unusually low, you must collect pickoff voltage data during the problem condition and compare it to pickoff voltage data from a period of normal operation. Drive gain and pickoff voltage are inversely proportional. As drive gain increases, pickoff voltages decrease and vice versa.

  • Page 155: Check For Internal Electrical Problems

    Troubleshooting 10.27 Check for internal electrical problems Shorts between sensor terminals or between the sensor terminals and the sensor case can cause the sensor to stop working. Possible cause Recommended action Moisture inside the sensor junction Ensure that the junction box is dry and no corrosion is present.
  • Page 156 Troubleshooting Table 10-7: Coils and test terminal pairs (continued) Coil Sensor model Terminal colors Resistance temperature detector Yellow to violet (RTD) Lead length compensator (LLC) All except T-Series and CMF400 Yellow to orange (see note) Composite RTD All CMFSs, T-Series, H300, and Yellow to orange F300 Fixed resistor (see note)

  • Page 157: Check The Core Processor Led

    Troubleshooting h. Test the yellow terminal against all other terminals except the orange and violet ones. i. Test the violet terminal against all other terminals except the yellow and orange ones. There should be infinite resistance for each pair. If there is any resistance at all, there is a short between terminals.
  • Page 158 Troubleshooting Table 10-8: Standard core processor LED states (continued) LED state Description Recommended actions 3 rapid flashes, followed by Sensor not recognized Check wiring between transmitter and sensor. pause Improper configuration Check sensor characterization parameters. Broken pin between sensor and The meter requires factory service.

  • Page 159: Perform A 700 Core Processor Resistance Test

    Troubleshooting Table 10-9: Enhanced core processor LED states (continued) LED state Description Recommended action Core processor receiving less • Verify power supply wiring to core processor. than 5 volts • If transmitter status LED is lit, transmitter is re- ceiving power. Check voltage across terminals 1 (VDC+) and 2 (VDC–) in core processor.
  • Page 160 Troubleshooting Replace the core processor lid. Restore power to the transmitter. Note When reassembling the meter components, be sure to grease all O-rings. Micro Motion Model 1500 Transmitters with Analog Outputs...

  • Page 161: Appendix A Using Prolink Iii With The Transmitter

    In most ProLink III installations, the manual is installed with the ProLink III program. Additionally, the ProLink III manual is available on the documentation CD or at www.emerson.com. ProLink III features and functions ProLink III offers complete transmitter configuration and operation functions. ProLink III also offers a number of additional features and functions, including: •...

  • Page 162: Connect With Prolink Iii

    Using ProLink III with the transmitter • The ability to connect to and view information for more than one device • A guided connection wizard These features are documented in the ProLink III manual. They are not documented in the current manual.

  • Page 163: Connect With Prolink Iii To The Service Port

    Using ProLink III with the transmitter • RS-485 connections can be made only when the transmitter's RS-485 terminals are in RS-485 mode. If they are not, you must switch them to RS-485 mode by power- cycling the transmitter and waiting 15 seconds before connecting. •...
  • Page 164 Using ProLink III with the transmitter Figure A-1: Connection to service port A. PC B. Signal converter C. Transmitter Note This figure shows a serial port connection. USB connections are also supported. Start ProLink III. Choose Connect to Physical Device. Set Protocol to Service Port.

  • Page 165: Make A Hart/Bell 202 Connection

    Using ProLink III with the transmitter A.2.3 Make a HART/Bell 202 connection You can connect directly to the mA terminals on the transmitter, to any point in a local HART loop, or to any point in a HART multidrop network. CAUTION! If you connect directly to the mA terminals, the transmitter's mA Output may be affected.
  • Page 166 Using ProLink III with the transmitter Figure A-2: Connection to transmitter terminals A. Computer B. Signal converter C. Transmitter Note This figure shows a serial port connection. USB connections are also supported. To connect to a point in the local HART loop: a.
  • Page 167 Using ProLink III with the transmitter Figure A-3: Connection over local loop A. Computer B. Signal converter C. Any combination of resistors R1, R2, and R3 as necessary to meet HART communication resistance requirements D. DCS or PLC E. Transmitter Note This figure shows a serial port connection.
  • Page 168 Using ProLink III with the transmitter Figure A-4: Connection over multidrop network A. Signal converter Ω resistance B. 250–600 C. Devices on the network D. Master device Start ProLink III. Choose Connect to Physical Device. Set Protocol to HART Bell 202. HART/Bell 202 connections use standard connection parameters.

  • Page 169: Connect With Prolink Iii To The Rs-485 Port

    Using ProLink III with the transmitter Option Description Primary Use this setting if no other primary host is on the network. The Field Communicator is a secondary host. Click Connect. Need help? If an error message appears: • Verify the HART address of the transmitter, or poll HART addresses 1–15. •...
  • Page 170 Using ProLink III with the transmitter Figure A-5: Connection to transmitter terminals A. Computer B. Signal converter C. Transmitter Note This figure shows a serial port connection. USB connections are also supported. To connect over the RS-485 network: a. Attach the leads from the signal converter to any point on the network. Figure A-6: Connection over network A.
  • Page 171 Using ProLink III with the transmitter Set the connection parameters to the values configured in the transmitter. If your transmitter has not been configured, use the default values shown here. Table A-1: Default Modbus/RS-485 connection parameters Parameter Default value Modbus RTU Protocol 9600 Baud...
  • Page 172 Using ProLink III with the transmitter Micro Motion Model 1500 Transmitters with Analog Outputs...

  • Page 173: Appendix B Using A Field Communicator With The Transmitter

    If you are unable to perform these tasks, consult the Field Communicator manual before attempting to use the Field Communicator. The Field Communicator manual is available on the documentation CD or at www.emerson.com. Device descriptions (DDs) In order for the Field Communicator to work with your device, the appropriate device...

  • Page 174: Connect With The Field Communicator

    Using a Field Communicator with the transmitter Field Communicator menus and messages Many of the menus in this manual start with the On-Line menu. Ensure that you are able to navigate to the On-Line menu. As you use the Field Communicator with a Micro Motion transmitter, you will see a number of messages and notes.
  • Page 175 Using a Field Communicator with the transmitter Figure B-1: Field Communicator connection to transmitter terminals A. Field Communicator Ω resistance B. 250–600 C. Transmitter terminals To connect to a point in the local HART loop, attach the leads from the Field Communicator to any point in the loop and add resistance as necessary.
  • Page 176 Using a Field Communicator with the transmitter Figure B-3: Field Communicator connection to multidrop network A. Field Communicator Ω resistance B. 250–600 C. Devices on the network D. Master device Turn on the Field Communicator and wait until the main menu is displayed. If you are connecting across a multidrop network: •...

  • Page 177: Appendix C Default Values And Ranges

    Default values and ranges Appendix C Default values and ranges The default values and ranges represent the typical factory transmitter configuration. Depending on how the transmitter was ordered, certain values may have been configured at the factory and are not represented in the default values and ranges. Table C-1: Transmitter default values and ranges Type...
  • Page 178 Default values and ranges Table C-1: Transmitter default values and ranges (continued) Type Parameter Default Range Comments Density Density damping 1.6 sec 0.0 – 51.2 sec User-entered value is corrected to nearest valid value in a list of preset values. Density units g/cm Density cutoff...
  • Page 179 Default values and ranges Table C-1: Transmitter default values and ranges (continued) Type Parameter Default Range Comments Base mass time Mass flow conversion factor Base volume unit Base volume time Volume flow conversion factor Variable map- Primary variable Mass flow ping Secondary variable Volume flow...
  • Page 180 Default values and ranges Table C-1: Transmitter default values and ranges (continued) Type Parameter Default Range Comments 0.00 g/cm Read-only. LSL is calculated based on the sensor size and characterization parameters. 10.00 g/cm Read only. USL is calculated based on the sensor size and characterization parameters.
  • Page 181 Default values and ranges Table C-1: Transmitter default values and ranges (continued) Type Parameter Default Range Comments Frequency Output polarity Active high Last measured value timeout 0.0 seconds 0.0 – 60.0 sec Discrete Out- Source Flow direction Fault Indicator None Power Internal Polarity...
  • Page 182 Default values and ranges Micro Motion Model 1500 Transmitters with Analog Outputs...

  • Page 183: Appendix D Transmitter Components And Installation Wiring

    Transmitter components and installation wiring Appendix D Transmitter components and installation wiring Topics covered in this appendix: • Installation types • Power supply terminals • Input/output (I/O) wiring terminals Installation types The transmitter was ordered and shipped to be installed in one of two possible configurations.
  • Page 184 Transmitter components and installation wiring Figure D-2: Remote core processor with remote sensor installation The transmitter, core processor, and sensor are all mounted separately. The 4‐wire connection between the transmitter and core processor must be field wired. The 9‐wire connection between the core processor and the sensor must be field wired.

  • Page 185: Power Supply Terminals

    Transmitter components and installation wiring Power supply terminals Figure D-3: Power supply wiring terminals Primary power supply (DC) Power supply jumper to other Model 1500 or Model 2500 transmitters (optional) Configuration and Use Manual...

  • Page 186: Input/Output (I/O) Wiring Terminals

    Transmitter components and installation wiring Input/output (I/O) wiring terminals Figure D-4: I/O wiring terminals mA/HART Unused Frequency Output or Discrete Output Service port or Modbus/RS‐485 Micro Motion Model 1500 Transmitters with Analog Outputs...

  • Page 187: Appendix Ene 53 History

    NE 53 history Appendix E NE 53 history Important Not all features and capabilities described in this section may apply to your transmitter or configuration. August 2000, Version 1.x Modification type Change Expansion Added writing of the device tag using Modbus Adjustment Improved communication handling with the HART Tri-Loop prod- Feature...
  • Page 188 NE 53 history December 2001, version 3.x Modification type Change Expansion • Added support for the configurable I/O option board • Software version information available via the display or Modbus • Configurable density cutoff • Additional HART variables can be assigned to QV •...
  • Page 189 NE 53 history September 2006, version 5.x Modification type Change Expansion • Discrete Output assignable as a flow switch • Discrete Output fault indication configurability • Discrete Input support for multiple action assignments • Added support for querying the display LED status via Mod- •...
  • Page 190 NE 53 history Modification type Change Feature • Configurable hysteresis for flow switch • Field Verification Zero added to support Weights & Measures application • Transmitter firmware checksum and core processor firmware checksum assignable as display variables and viewable in Pro- Link February 2018, version 8.x Modification type...
  • Page 191 NE 53 history Modification type Change Adjustment • Sensors that are not straight tube sensors are now correctly identified • The mA Output fixed alert is now set • The Factory Configuration Invalid status bit is now set cor- rectly when connected to a 700 core processor — as the 700 core processor does not support saving and restoring the fac- tory configuration •...
  • Page 192 NE 53 history Modification type Change An AMS Field Device did not respond message no longer displays when the concentration offset is con- figured even though the value was changed When the volume flow type is changed, the new setting is updated from the transmitter without having to rescan the device Feature...
  • Page 193 NE 53 history Configuration and Use Manual...
