6.2
6 Allowable Load for Wrist Axis and Wrist Flange

6.2 Wrist Flange

Wrist Flange
The wrist flange dimensions are shown in fig. 6-2 "Wrist Flange" . In
order to see the alignment mark, it is recommended that the attachment
be mounted inside the fitting. Fitting depth of inside and outside must be 8
mm or less.

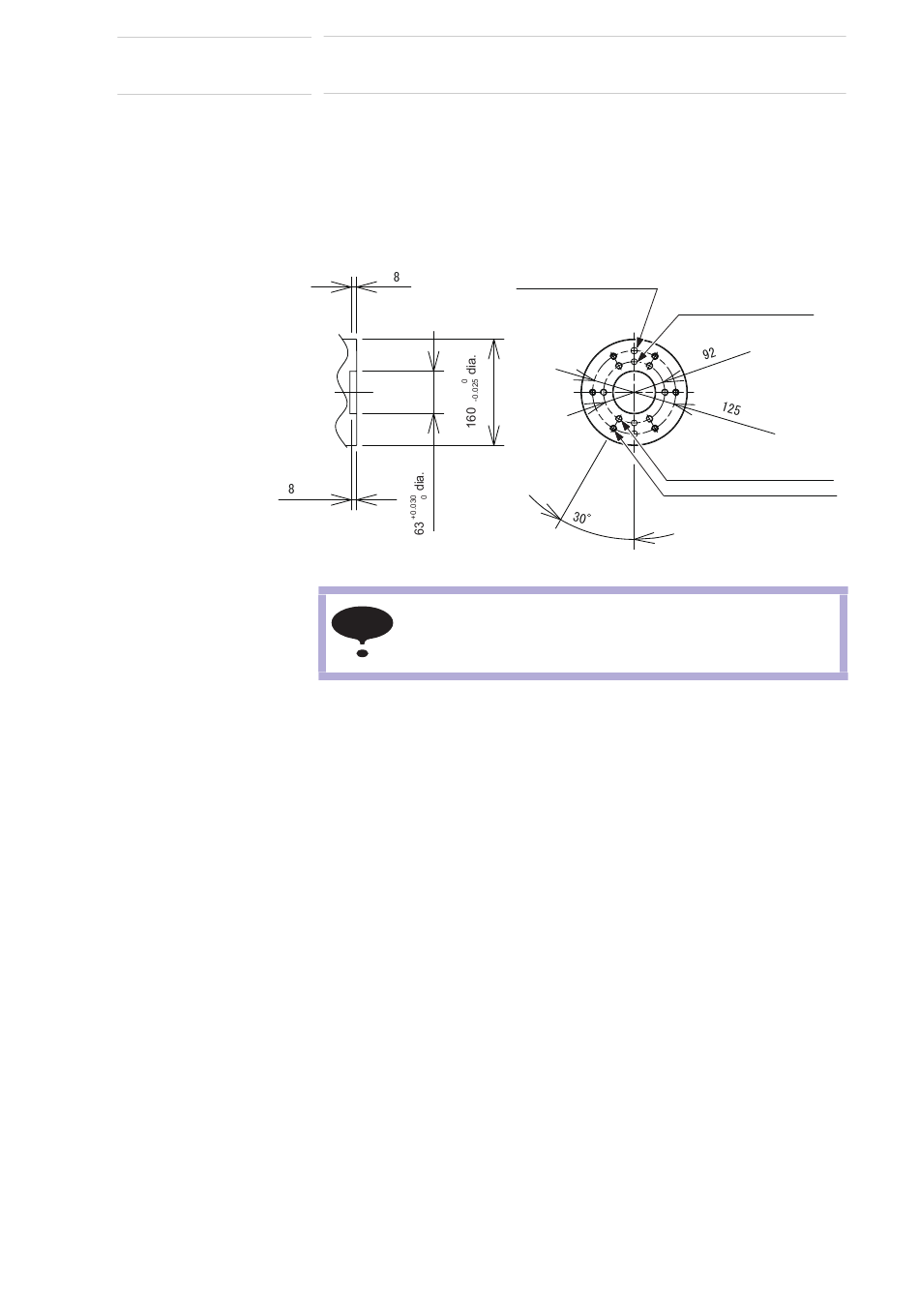

Fig. 6-2: Wrist Flange
Wash off anti-corrosive paint (yellow) on the wrist flange
NOTE
surface with thinner or light oil before mounting the tools.
6-3
+0.015
10 dia.
0
(2 holes) (depth: 8 mm)
9
(2 holes) (depth: 8 mm)
M10 (6 holes) (depth: 14mm)
M10 (6 holes) (depth: 14mm)
HW1482308
+0.015
dia.
0
