5.5.1.3 Position 33%

(a)S-Axis
(b)L-Axis
(c)U-Axis
5 Basic Specifications
5.5 Stopping Angles and Times for S-, L- and U-Axes

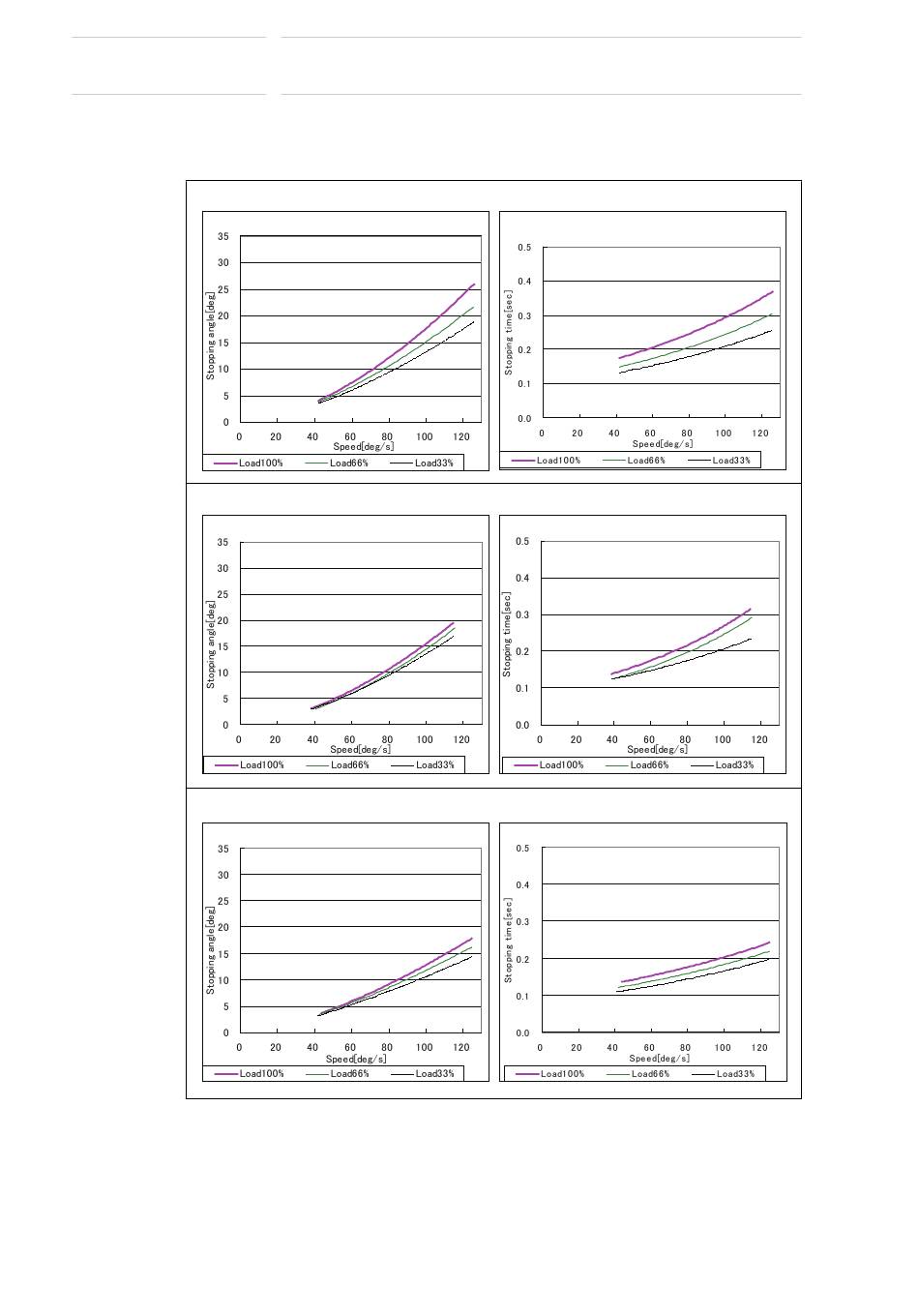

Fig. 5-6: Stop Category 0, Position 33% : Stopping Angle and Time for
Each Axis
Stop Category 0, Position 33%
Stop Category 0, Position 33%
Stop Category 0, Position 33%
