MS165
9 Maintenance and Inspection
9.4 Gas Maintenance Procedure in the Gas Balancer
14. Release the blowdown valve of the gas filling device and regulator,
and then discharge the gas in the hose.
15. Disconnect the gas filling device from the nitrogen gas cylinder.
16. Turn ON the power supply of the DX200.

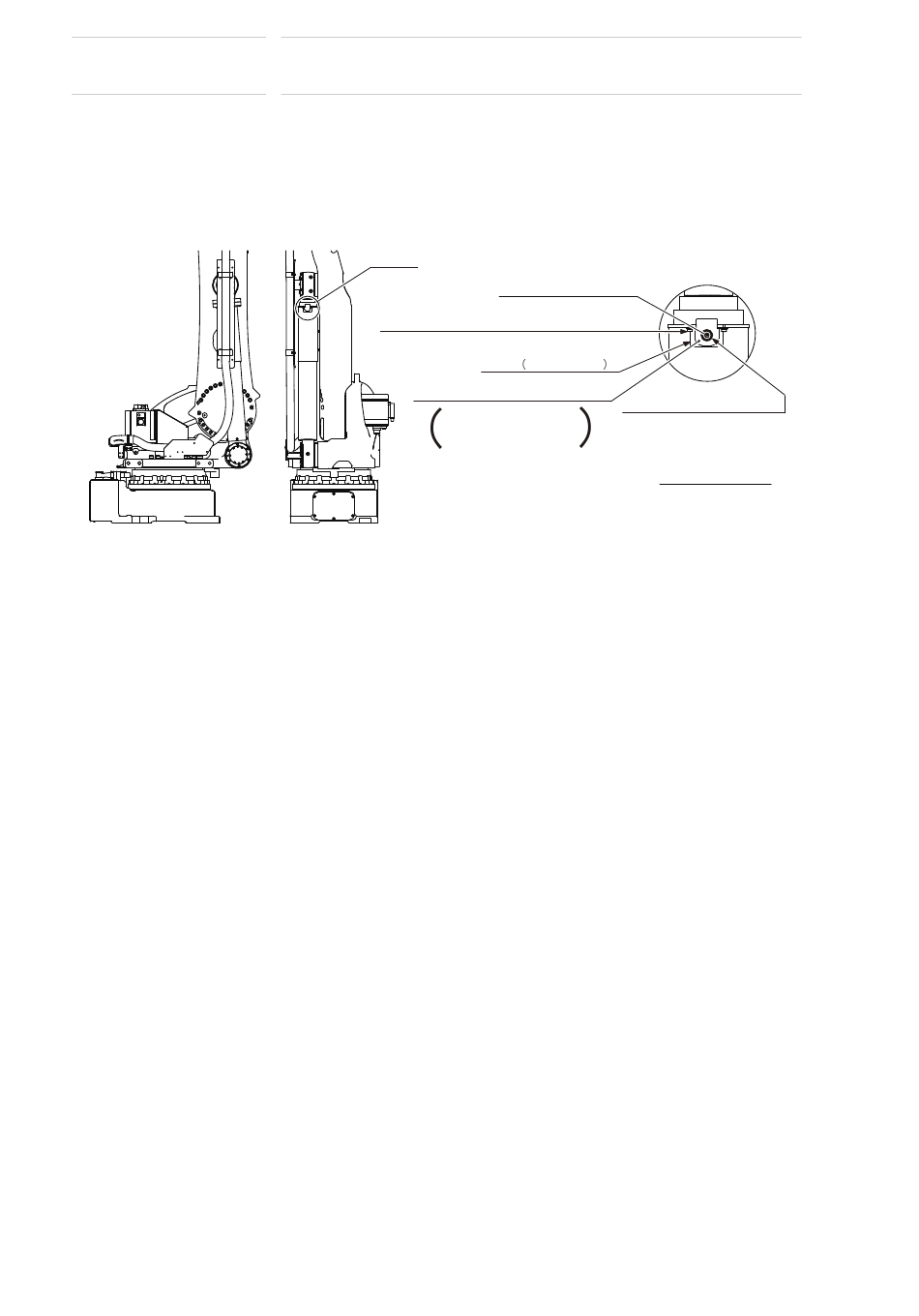

Fig. 9-13: Gas Injecting Operation
A part
Hexagon socket head cap screw M4 (length: 6 mm)(2 screws)
Conical spring washer 2L-4 (2 washers)
Surface temperature measuring point
Measure on the surface
of the gas balancer
after removing the cover.
9-22
Gas inlet/gas exhaust port
Cover HW1405134-1
Hexagon socket head screw plug M6
with flange
HW1482308
167109-1CD
A part
Enlarged figure
