1.9 Connecting components

1.9 Connecting components

1.9.1 Pin assignment for the laser diode output

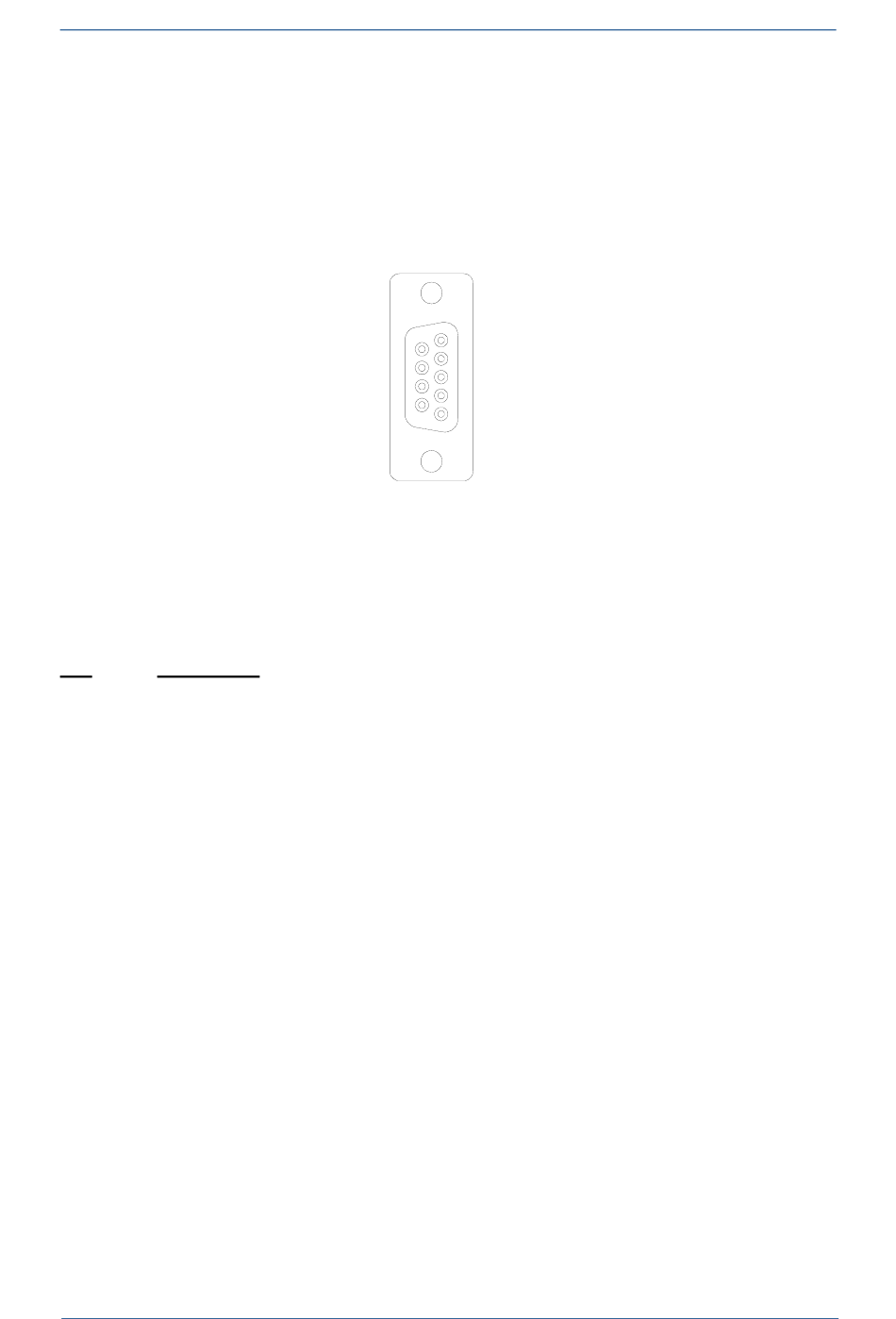

Figure 3
Pin
Connector
Interlock, status display
output for interlock and status LASER ON/OFF
1
digital ground for pin 1
5
Laser diode
laser diode cathode (with polarity AG)
7
laser diode anode (with polarity CG)
8
ground for laser diode
3
Monitor diode
ground potential for monitor diode
2
monitor diode input
4
Measurement input for laser diode voltage
laser diode anode
9
laser diode cathode
6
ITC500 / page 20
5
9
4
8
3
7
2
6
1
Pinning of the laser diode connector
