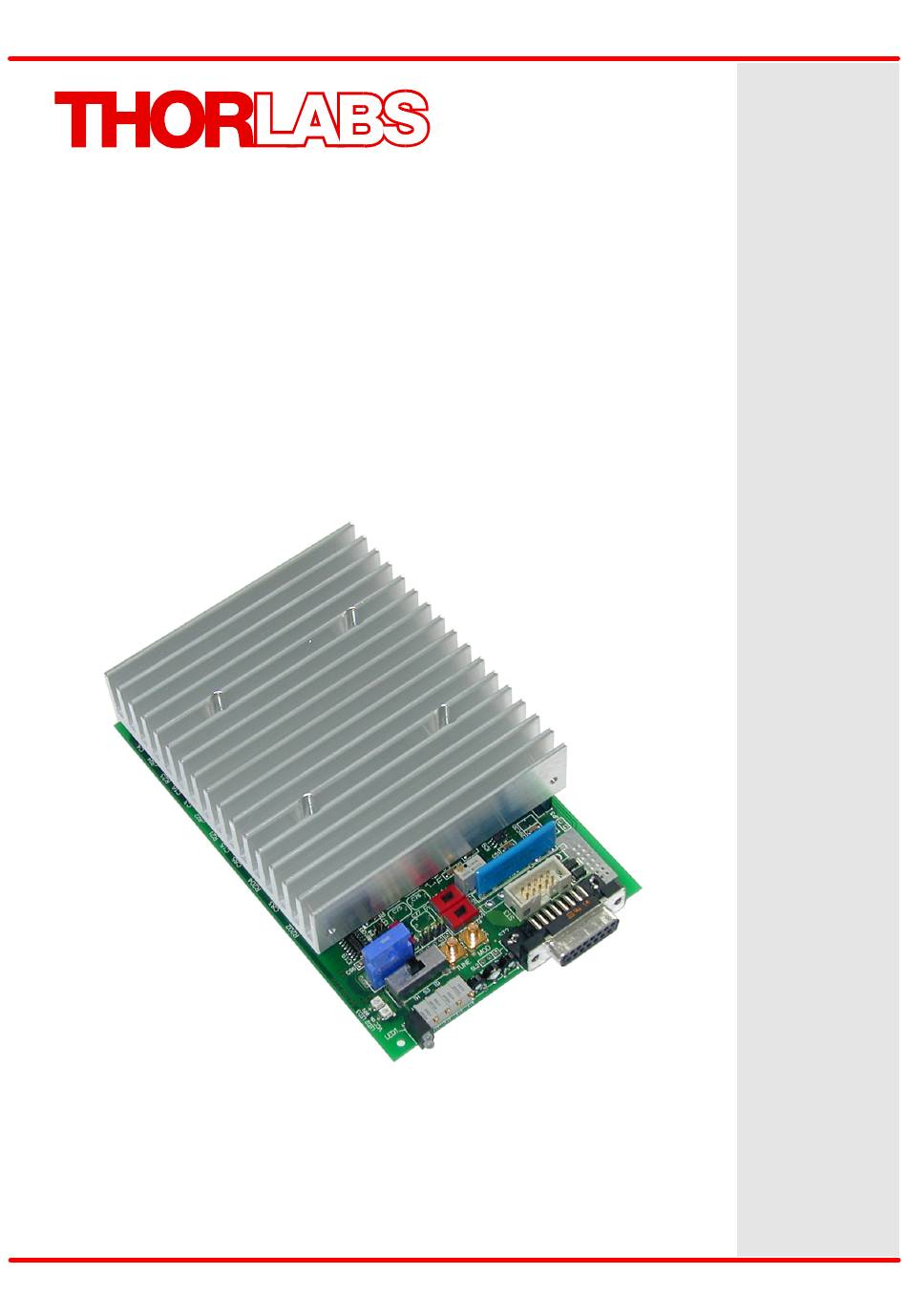

Page 1 OEM Laser Diode Controller ITC1xx Operation Manual 2018...
Page 3: Table Of Contents
Contents Foreword 1 General Information 1.1 Safety 1.2 Ordering Codes and Accessories 2 Getting Started 2.1 Parts List 2.2 Operating Principle 2.3 Operating Elements 3 Connecting Elements 3.1 ST1 I/O Connector 64 pin 3.2 ST2 I/O D-SUB Connector 15 pin 3.3 ST3 Display Module Connector 3.4 ST4 and ST5 SMB Coaxial Connectors 4 Operating Instruction...
Page 4 8.4 Dimensions ITC100F 8.5 Certifications and Compliances 8.6 Warranty 8.7 Copyright and Exclusion of Reliability 8.8 Thorlabs 'End of Life' Policy 8.9 List of Acronyms 8.10 Thorlabs Worldwide Contacts...
Page 5: Foreword
Paragraphs preceeded by this symbol explain hazards that could damage the instrument and the connected equipment or may cause loss of data. Note This manual also contains "NOTES" and "HINTS" written in this form. Please read these advices carefully! © 2018 Thorlabs GmbH...
Page 6: General Information

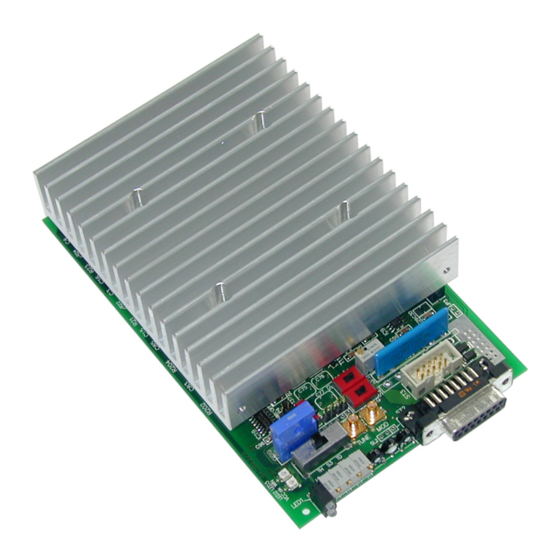

ITC1xx 1 General Information The Thorlabs ITC1xx OEM Laser Controller is a compact combined laser current and tempera- ture controller for OEM applications on a single Euro-board (100 x 160 mm). · Combined Current and TEC Controllers · Maximum laser currents of 200 mA, 1 A, or 3 A ·...
Page 7: Ordering Codes And Accessories
1 General Information equipment other than those specified by Thorlabs GmbH. The correction of interference caused by such unauthorized modification, substitution or attachment will be the re- sponsibility of the user. The use of shielded I/O cables is required when connecting this equipment to any and all optional peripheral or host devices.
Page 8: Getting Started
2 mA floating photo current input · Modulation input · Individual TEC controller PID adjustment possible · Thermistor or AD590/LM335 temperature sensor selectable · Temperature tune input · Analog control output for ILD, ILIM, IPD, TSET, TACT, ITLIM, ITEC © 2018 Thorlabs GmbH...
Page 10 Jumper closed: bias- connected to ST2 Pin 9 Jumper open: bias- disconnected from ST2 Pin 9 TEC window Jumper closed: TEC window OFF Jumper open: TEC window ON For compatibility with Thorlabs laser diode mounts LEDs LED1a Laser ON (Upper LED) LED1b...
Page 11: Connecting Elements
3 Connecting Elements 3 Connecting Elements 3.1 ST1 I/O Connector 64 pin Numbering of ST1 pins Short Description of ST1 Pin Assignment The following table lists the pin assignment of ST1 with respect to their functionality. © 2018 Thorlabs GmbH...
Page 12 4 V ) Without display module ITC100D ) If a long connection cable is attached to this output, a 1 k resistor should be inserted in series as close as pos- sible to the output pin. © 2018 Thorlabs GmbH...
Page 13 H = Laser on LD ON control output (open collector) L = Laser on LIMIT LD control output (open collector) L = Laser current limit reached Interlock = CLOSED when connected Interlock £ to C17 (R © 2018 Thorlabs GmbH...
Page 14: St2 I/O D-Sub Connector 15 Pin
Monitor (Photo) Diode Anode Output PD Bias - (set with JP2) -5 V const. Output PD Bias + (set with JP1) +5 V const. Interlock Interlock = CLOSED when connected £ to pin 5 (R Interlock GND © 2018 Thorlabs GmbH...
Page 15: St3 Display Module Connector
ITC110 ITC133 Laser Diode Modulation Input LD MOD 40 mA/V 200 mA/V 600 mA/V (-5 V to +5 V) 20 °C/V (transducer) Temperature Tune Input T TUNE (-5 V to +5 V) 16 k /V (thermistor) © 2018 Thorlabs GmbH...
Page 16: Operating Instruction
The maximum heat sink temperature is +85° C. When this limit is exceeded, the over-tempera- ture protection activates and switches off the TEC and LDC outputs. The controller can be switched on again only after the temperature has dropped by about 10° C. © 2018 Thorlabs GmbH...
Page 17: Connecting Laser Diode And Photo Diode
Disconnecting the laser diode during operation may destroy the laser diode! Below are shown possible configurations of the laser and monitor (photo) diode combination and the connection scheme to the output connectors ST2 or ST1. AG = Anode Grounded CG = Cathode Grounded © 2018 Thorlabs GmbH...
Page 18 Reverse connection of the photo diode can permanently damage the photo diode when using a bias voltage. Check the control voltage output I (A19) prior to enabling a bias voltage. The output voltage must be positive! © 2018 Thorlabs GmbH...
Page 19 Reverse connection of the photo diode can permanently damage the photo diode when using a bias voltage. Check the control voltage output I (A19) prior to enabling a bias voltage. The output voltage must be positive! © 2018 Thorlabs GmbH...
Page 20: Connecting Tec And Temperature Sensor
Make sure that the polarity of the TEC element (Peltier) is correct! Otherwise, the temperature will run into the wrong direction, this way leading to a thermal damage of the laser diode! Connecting a thermistor (NTC temperature sensor) Connecting an AD590 temperature sensor Connecting a LM335 temperature sensor © 2018 Thorlabs GmbH...
Page 21: Connecting The Interlock
When using the ITC1xx with Thorlabs laser diode mounts, the interlock function is provided by the mount. For details please see the Operation Manual of the used laser diode mount.
Page 22: Polarity Check Of The Tec
When the standard heat sink is used, the total output current should be limited to 3 A (I £ 3 A). Optimized cooling by fan or bigger heat sink allows 3 A LD and 3 A TEC at the same time under the condition that the power supply provides 6.1 A. © 2018 Thorlabs GmbH...
Page 23: Operation
· Now remove jumper JP4 and set potentiometer P8 fully clockwise (window = infinite). · Rotate P8 slowly counter clockwise until LED3 lights up. · The ITC1xx now is running in temperature protection mode. © 2018 Thorlabs GmbH...
Page 24: Pid Adjustment
In case of a high thermal load, the adjustment ranges of the I and D shares might be insuffi- cient. The adjustment range can be increased by using additional foil capacitors: C73 for the D share and C75,C76 and C77 for the I share, typically 0.47 µF to 3.3 µF. © 2018 Thorlabs GmbH...
Page 25: Connecting Scheme Examples
Alternatively, the laser, the monitor diode, the temperature sensor, the TEC and the interlock connection can be made through the 15 pin DSUB connector ST2. This way, a Thorlabs laser diode mount can be connected directly using the CAB430 cable (to be ordered separately).
Page 26: Laser Diode Controller
ITC1xx 5.1 Laser Diode Controller In the above schematic diagram a laser diode (AG - anode grounded) and a monitor (photo) di- ode (CG - cathode grounded) are connected to the 64 pin ST1. © 2018 Thorlabs GmbH...
Page 27 5 Connecting Scheme Examples In the above schematic diagram a laser diode (AG - anode grounded) and a monitor (photo) di- ode (CG - cathode grounded) are connected to the 15 pin DSUB connector ST2. © 2018 Thorlabs GmbH...
Page 28: Temperature Controller
ITC1xx 5.2 Temperature Controller In the above schematic diagram a TEC element (Peltier) and a thermistor temperature sensor are connected to the 64 pin ST1. © 2018 Thorlabs GmbH...
Page 29 5 Connecting Scheme Examples In the above schematic diagram the TEC element (Peltier) and the thermistor temperature sensor are connected to the 15 pin DSUB connector ST2. © 2018 Thorlabs GmbH...
Page 30: Display Module Itc100D
ITC1xx 6 Display Module ITC100D Thorlabs GmbH offers an optional ITC100D display module that can be mounted directly to the ITC1xx board. The ITC100D module can be covered using the optional ITC100F front panel. P1 P2 P3 P4 P5 P6 An numeric 3½...
Page 31: Itc100D Jumper Settings
Position of jumper "I " Position of jumper "I " ITC1xx Type ITC102 ITC110 ITC133 This results in the following units for the six selectable parameters: Parameter ITC102 ITC110 ITC133 LD,LIM (transducer) °C °C °C (thermistor) TEC,LIM © 2018 Thorlabs GmbH...
Page 32: Itc100D Adjustment
Connect an ampere meter to the TEC output pins. Adjust the TEC current limit to about 90% of full scale. Adjust the temperature set point to a significant higher value and turn on temperature control. Adjust the I reading to the ampere meter value using P6. TEC,LIM © 2018 Thorlabs GmbH...
Page 33: Maintenance And Service
The unit does not need a regular maintenance by the user. It does not contain any modules and/or components that could be repaired by the user himself. If a malfunction occurs, please check first the section Troubleshooting prior to contact Thorlabs GmbH for return instructions. 7.1 Troubleshooting · Unit does not work at all (no display) Ø...
Page 34 Set temperature differs from actual temperature (of the laser) Ø Is the temperature oscillating? · Adjust the PID parameters carefully - please refer to section Adjustment. If an error or malfunction appears that is not listed above, please contact Thorlabs. © 2018 Thorlabs GmbH...
Page 35: Appendix
3 A LD and 3 A TEC at the same time provided the power supply provides 6.1 A. All technical data are valid at 23 ± 5°C and 45 ± 15% rel. humidity (non condensing) © 2018 Thorlabs GmbH...
Page 36: Temperature Controller
3 A LD and 3 A TEC at the same time provided the power supply provides 6.1 A. All technical data are valid at 23 ± 5°C and 45 ± 15% rel. humidity (non condensing) © 2018 Thorlabs GmbH...
Page 37: Common Specifications
3 A LD and 3 A TEC at the same time provided the power supply provides 6.1 A. ) non-condensing All technical data are valid at 23 ± 5°C and 45 ± 15% rel. humidity (non condensing) © 2018 Thorlabs GmbH...
Page 41: Certifications And Compliances
Compliance demonstrated using high-quality shielded interface cables shorter than or equal to 3 meters, including CAB400 cable installed at the CONTROL OUT port and with CAB430 cable installed at the LD/TEC port. Compliance demonstrated with ITC100 series and DISP100 board modules installed in a Thorlabs PRO8000 mainframe unit (with PRO8000 display disabled).
Page 42: Warranty
For warranty repairs or service the unit must be sent back to Thorlabs GmbH. The customer will carry the shipping costs to Thorlabs GmbH, in case of warranty repairs Thorlabs GmbH will carry the shipping costs back to the customer.
Page 43: Copyright And Exclusion Of Reliability
As the WEEE directive applies to self contained operational electrical and electronic products, this “end of life” take back service does not refer to other Thorlabs GmbH products, such as · pure OEM products, that means assemblies to be built into a unit by the user (e. g. OEM laser driver cards) ·...
Page 44: List Of Acronyms
ITC1xx If you do not return an “end of life” unit to Thorlabs GmbH, you must hand it to a company spe- cialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
Page 45: Thorlabs Worldwide Contacts
Email: europe@thorlabs.com Email: scandinavia@thorlabs.com France Brazil Thorlabs SAS Thorlabs Vendas de Fotônicos Ltda. 109, rue des Côtes Rua Riachuelo, 171 78600 Maisons-Laffitte São Carlos, SP 13560-110 France Brazil Tel: +33-970 444 844 Tel: +55-16-3413 7062 Fax: +33-825 744 800 Fax: +55-16-3413 7064 www.thorlabs.com...
Page 46 www.thorlabs.com...
