Figure 25 Cross-Band Simplex Only Capable Dvrs Interconnect Cabling - Front; Figure 26 Cross-Band Simplex Only Capable Dvrs Interconnect Cabling - Back - Futurecom P25 Installation & Programming Manual

8M083X25 R14
APX Series P25 Interface
DVRS Installation & Programming Guide – PART I
2
1

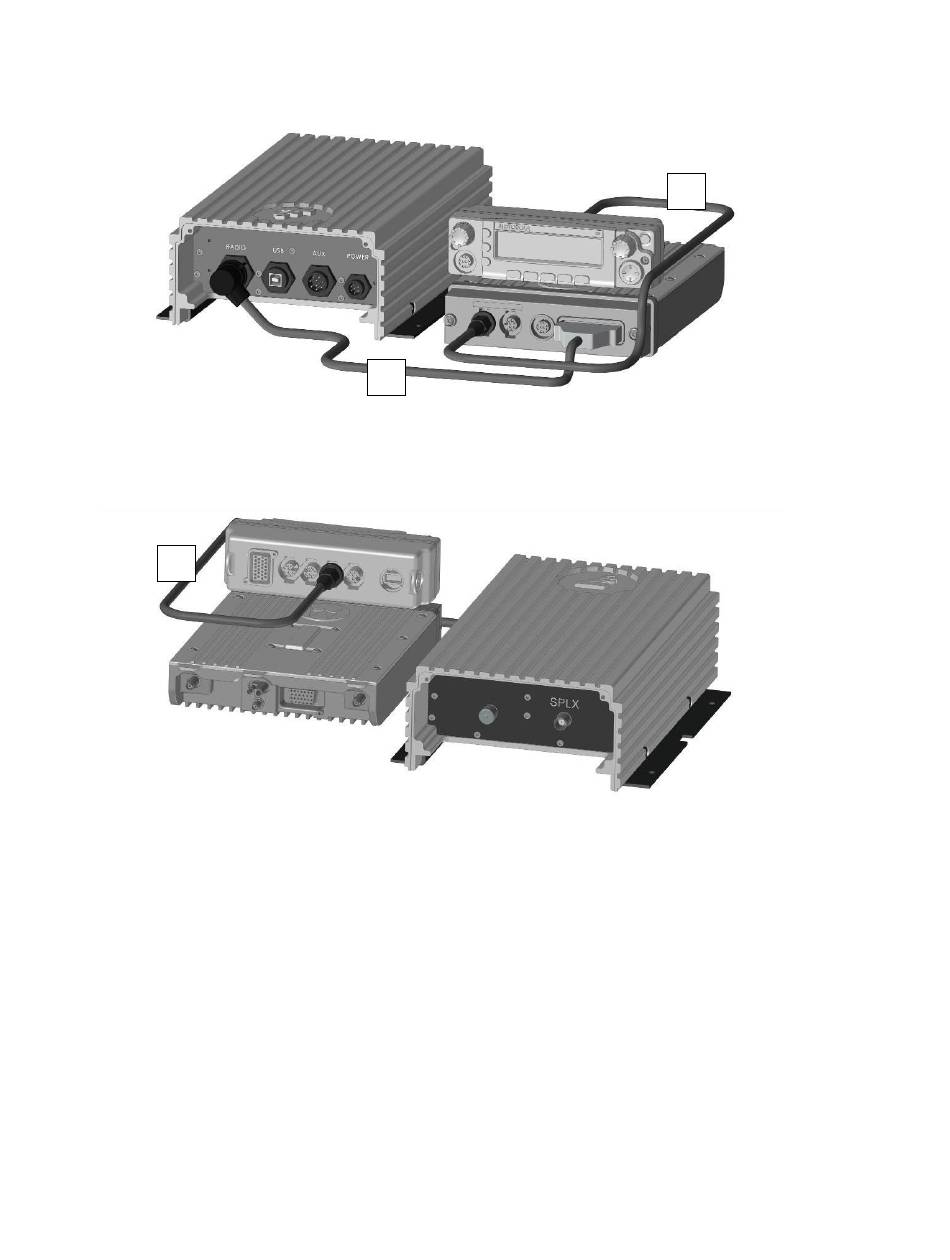

Figure 25 Cross-Band Simplex Only Capable DVRS Interconnect Cabling – Front
2
Figure 26 Cross-Band Simplex Only Capable DVRS Interconnect Cabling – Back
January 2019
Page 46 of 153
