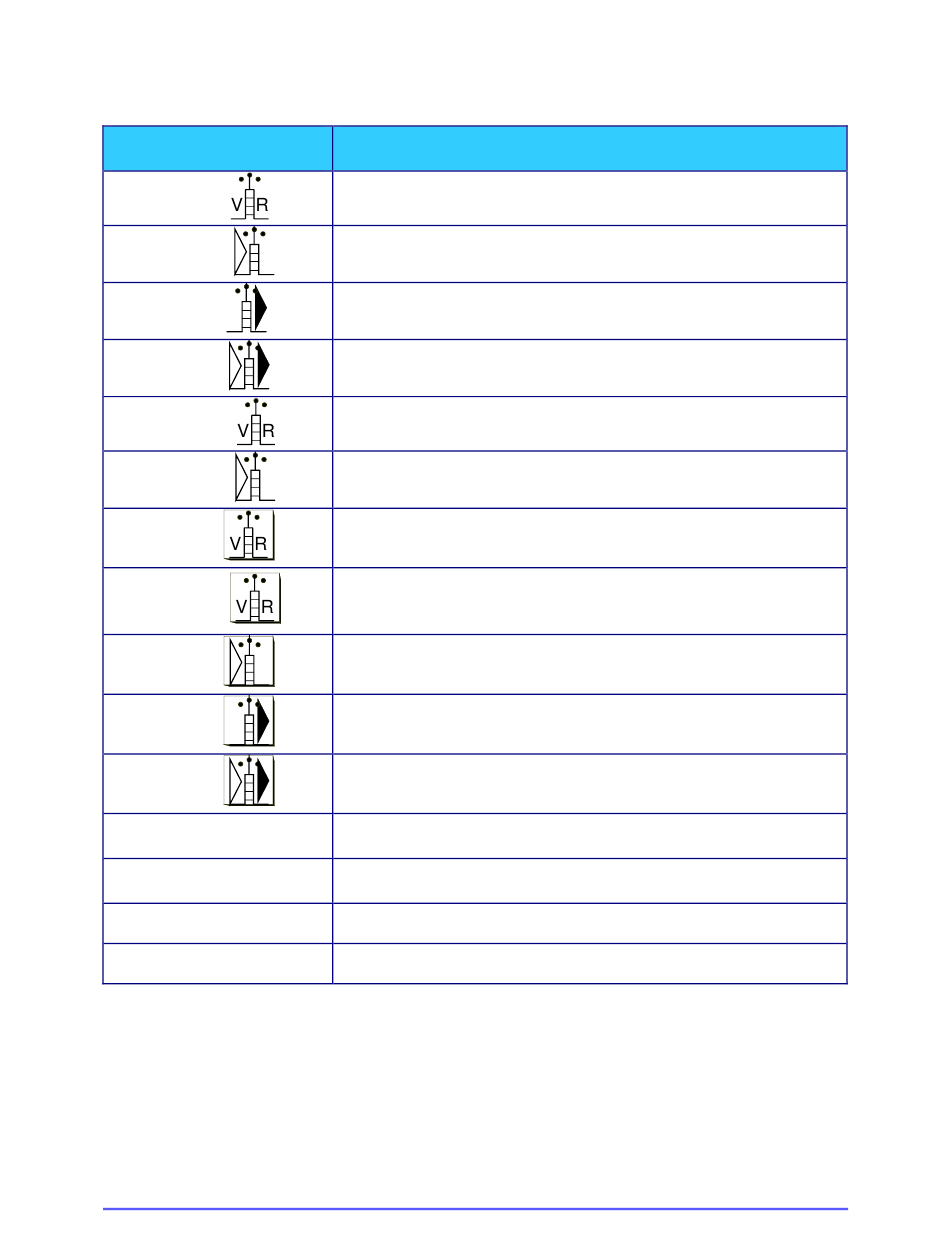

Appendix 2 – DVR Status Display
MSU CH DISPLAY
ICON / MESSAGE
Steady
Steady
Steady
Steady
Flashing
Flashing
Steady
Flashing
Steady
Steady
Steady
VR SERVICE
VR ERROR
VR IN RESET
VR DISABLED
January 2019
DVRS Installation & Programming Guide – PART II
DVRS STATUS DESCRIPTION
DVR is in a Primary State
Primary DVR Receiving
Primary DVR Transmitting
Primary DVR Receiving and Transmitting
DVR is in a Secondary State
Secondary DVR Receiving
DVR is in a Permanent Primary State
DVR is in a Permanent Primary 'On Standby' State
(there is another Permanent Primary already present
in the area)
Permanent Primary DVR Receiving
Permanent Primary DVR Transmitting
Permanent Primary DVR Receiving and Transmitting
DVR is in Service Mode (during re-flashing of the
firmware).
DVR Detected Error. Display toggles between VR
ERROR and the actual error code / number.
DVR is being reset
DVR Disabled on Selected MSU TG / Mode
