Figure 16 Dvr-To- Msu Control Cable 7W083X05-01; Figure 17 Dvr-To- Msu (With Siren) Control Cable 1W083B09-01 - Futurecom P25 Installation & Programming Manual

8M083X25 R14
APX Series P25 Interface
DVRS Installation & Programming Guide – PART I

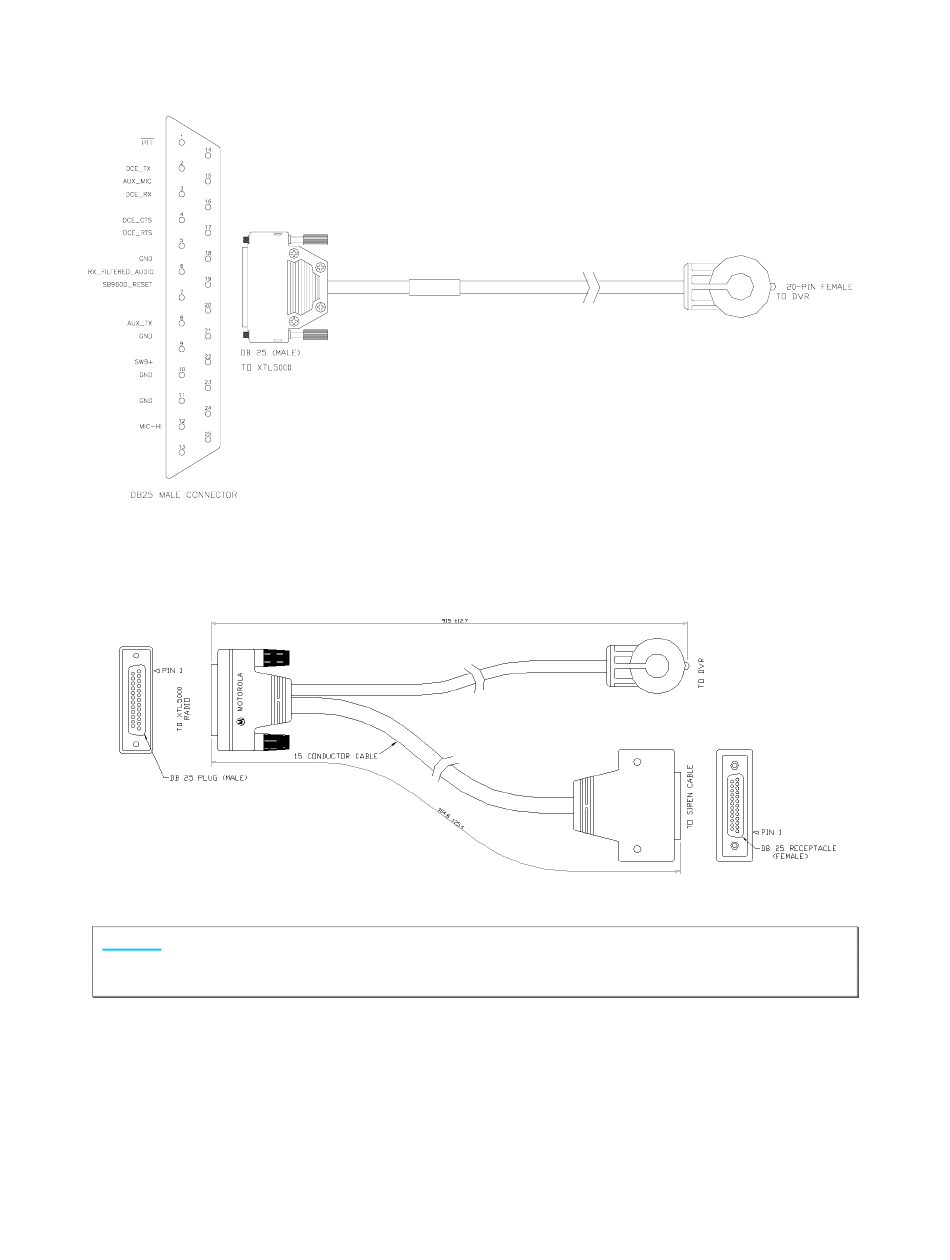

Figure 16 DVR-to- MSU Control Cable 7W083X05-01

Figure 17 DVR-to- MSU (with Siren) Control Cable 1W083B09-01

NOTE:
Only one of the above Control Cables (shown on Figure 16 and Figure 17) is required
per DVRS Installation.
January 2019
Page 41 of 153
