INSTALLATION

2.1

Mounting

Optidew
The Optidew can be wall mounted using the four drilled tabs on each corner. It is
possible to install the Optidew outside, providing it is shielded from direct sunlight and
the climate is within the environmental requirements listed in Appendix A, Technical
Specifi cations.
An optional weatherproof connector kit is available for the analog and digital outputs
(Michell order code: OPT-WPS).
Optidew Vision
The Optidew Vision is designed to be bench mounted and is supplied with a tilting carry
handle, but it can also be panel mounted using the optional panel mounting kit (Michell
order code: OPV-PMK).
2.2

Instrument Connections

Optidew

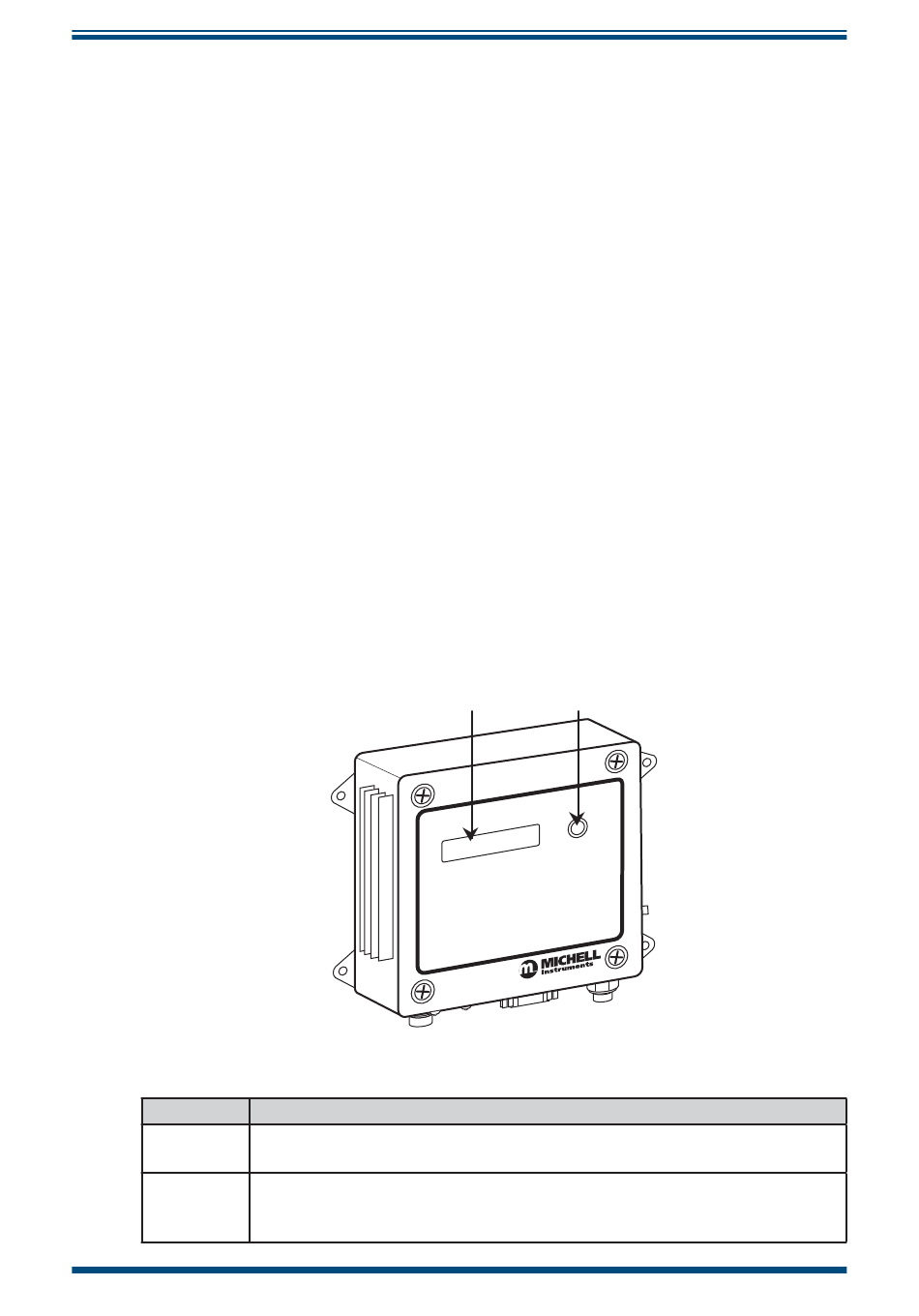

Front Panel
Number
1
2
Michell Instruments
O P T I D
H ig h P
Description
Display (optional)
Shows measured or calculated instrument parameters. Refer to Section 3.1.
Display Control (with Display models only)
Switches between different display screens, and puts the instrument in
REMOTE MODE. Refer to Section 3.2.
1 2
m it t e r
t T r a n s
E W
e w -p o in
p t ic a l D
a n c e O
e r fo r m
