5.13.3 Welding task selection

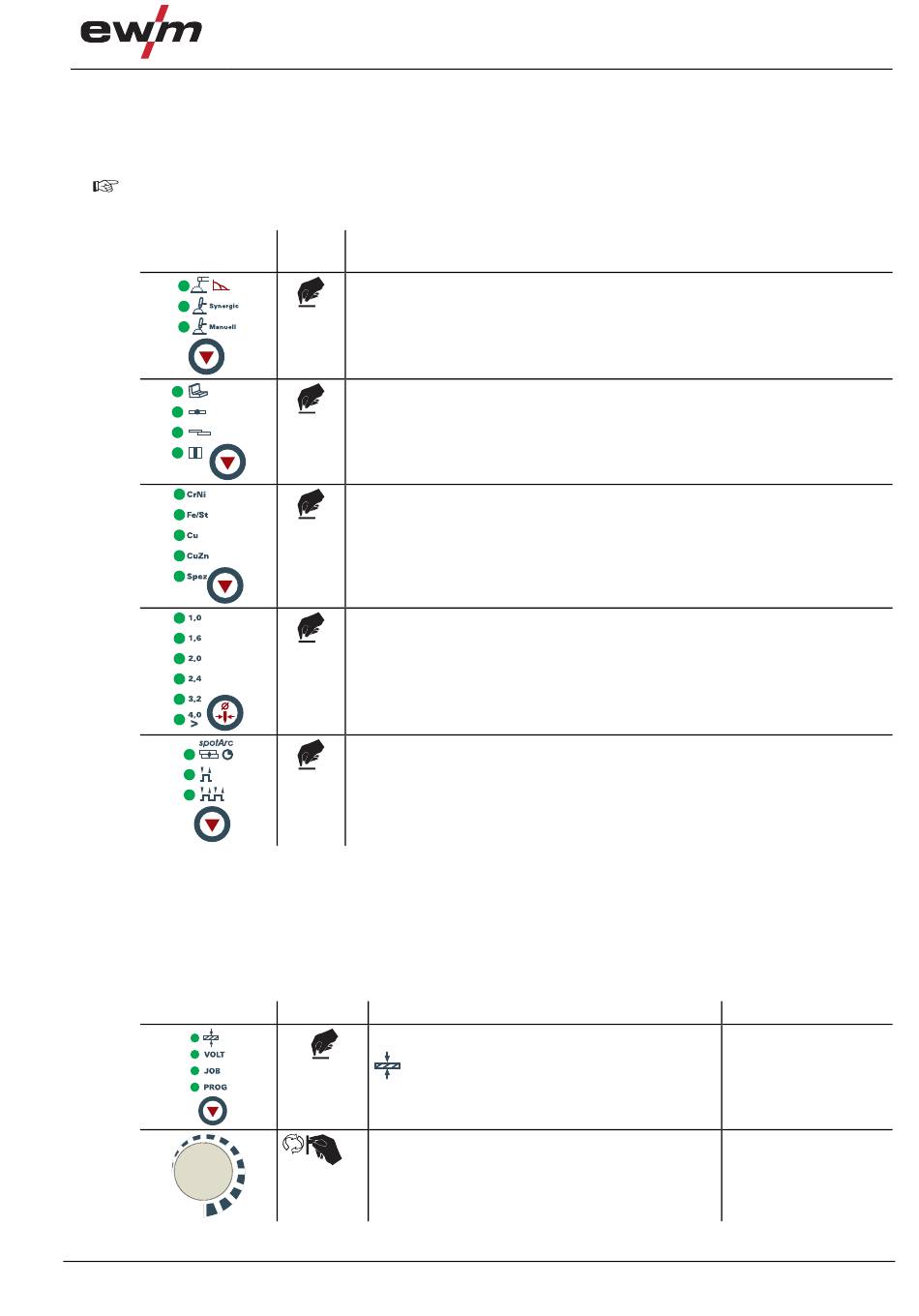

The welding task is selected using the buttons on the machine control on the welding machine.
Signal lights (LED) display the welding parameter selection.
It is only possible to change the basic parameters when no welding current is flowing and any
possible access control is disabled.
Operating
element

5.13.4 Select welding current

The user has two options for setting the required welding current:
• Using the sheet metal thickness
• Directly as welding current
The welding current is displayed in the left-hand display. The "Material thickness" parameter can
be selected in the right-hand display.
Control element Action
099-000141-EW501
12.01.2016
Action Result
Select and display welding process
Select and display seam type
Select and display material type
Select and display "electrode diameter" / "ignition optimisation"
Select and display operating mode
Result
Press button until signal light
X x
Material Thickness comes on.
Set welding current or sheet metal thickness.
Design and function
TIG Synergic operating principle
Display (right)
Material thickness in
mm is displayed.
Welding current and
sheet metal thickness
are displayed
45
