Technical data

Tetrix 352, 452, 552

8 Technical data

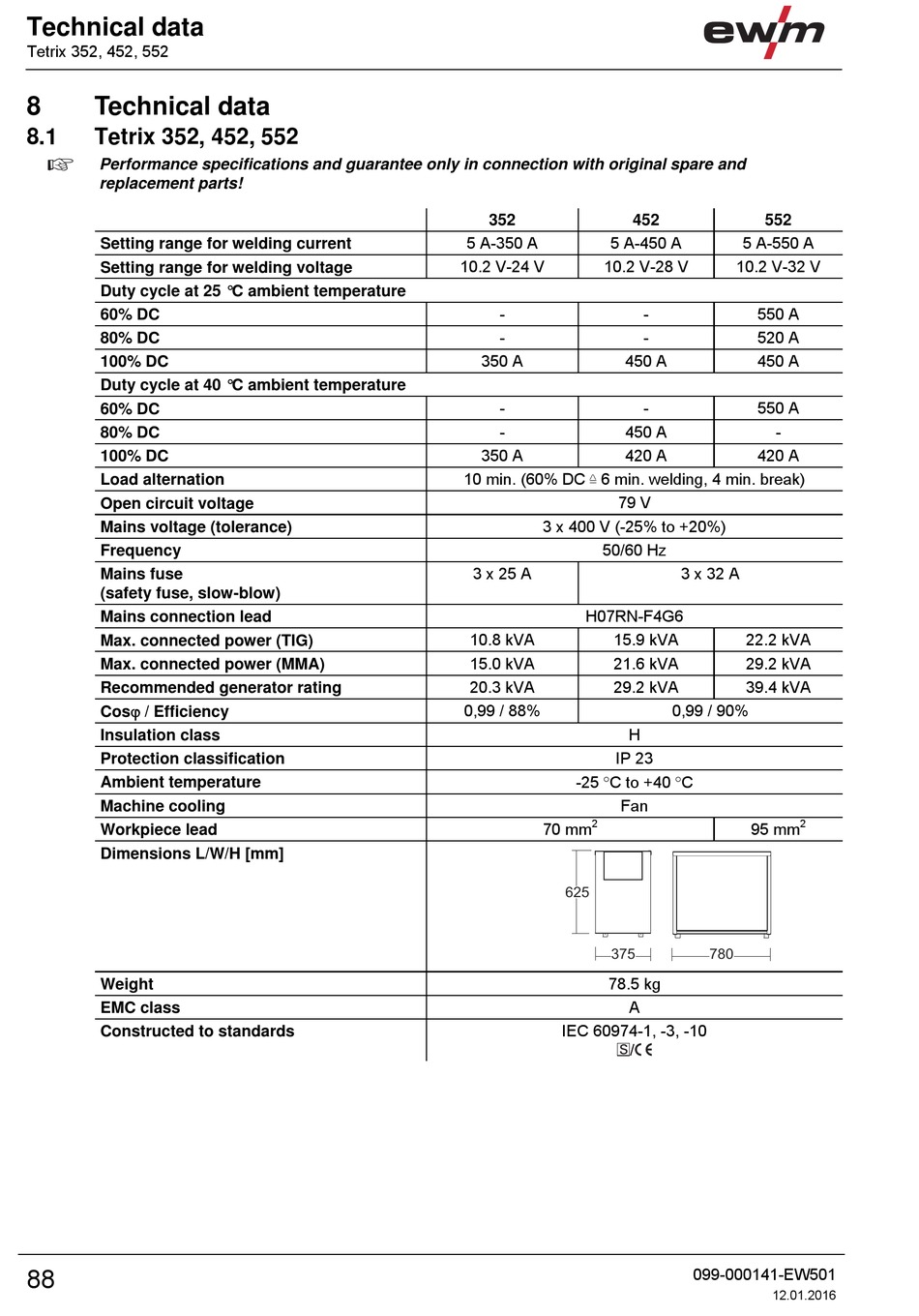

8.1 Tetrix 352, 452, 552
Performance specifications and guarantee only in connection with original spare and
replacement parts!
Setting range for welding current
Setting range for welding voltage
Duty cycle at 25 °C ambient temperature
60% DC
80% DC
100% DC
Duty cycle at 40 °C ambient temperature
60% DC
80% DC
100% DC
Load alternation
Open circuit voltage
Mains voltage (tolerance)
Frequency
Mains fuse
(safety fuse, slow-blow)
Mains connection lead
Max. connected power (TIG)
Max. connected power (MMA)
Recommended generator rating
Cos / Efficiency
Insulation class
Protection classification
Ambient temperature
Machine cooling
Workpiece lead
Dimensions L/W/H [mm]
Weight
EMC class
Constructed to standards
88
352
5 A-350 A 5 A-450 A
10.2 V-24 V 10.2 V-28 V
-
-
350 A 450 A
-
- 450 A
350 A 420 A

10 min. (60% DC 6 min. welding, 4 min. break)
79 V
3 x 400 V (-25% to +20%)
50/60 Hz
3 x 25 A
H07RN-F4G6
10.8 kVA 15.9 kVA
15.0 kVA 21.6 kVA
20.3 kVA 29.2 kVA
0,99 / 88%
H
IP 23
-25 C to +40 C
Fan
2
70 mm
625
375
78.5 kg
A
IEC 60974-1, -3, -10
/
452 552
5 A-550 A
10.2 V-32 V
- 550 A
- 520 A
450 A
- 550 A
-
420 A
3 x 32 A
22.2 kVA
29.2 kVA
39.4 kVA
0,99 / 90%
2
95 mm
780
099-000141-EW501
12.01.2016
