Item Symbol
5
6
7
8
S
9
10
11
12 Hold
13
099-000141-EW501
12.01.2016

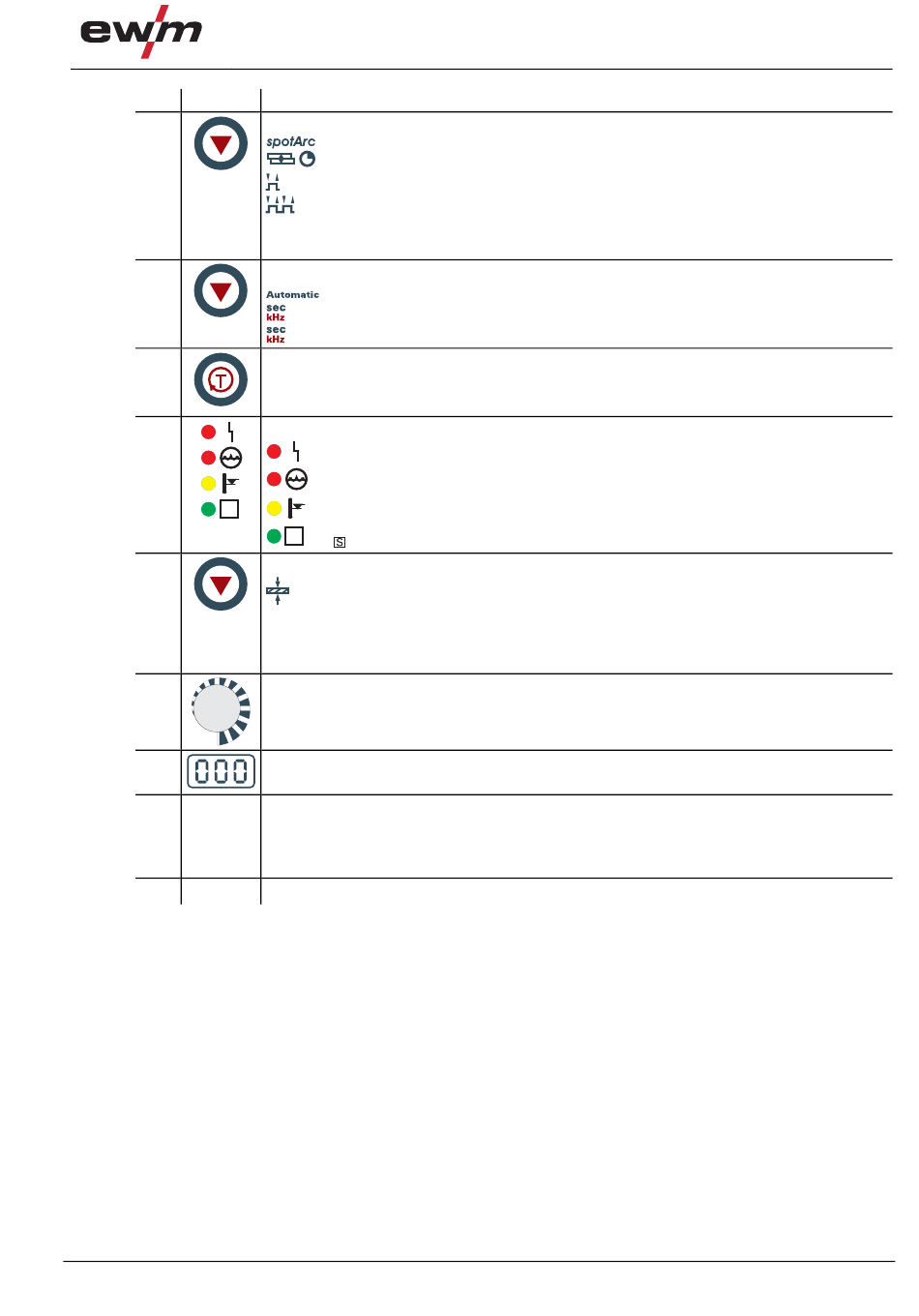

Machine description – quick overview
Description 0
Operating mode / Power-saving mode button
spotArc / Spotmatic (spot time setting range)
Non-latched
Latched
Press for 3 s to put machine into power-saving mode. To reactivate, activate one of the
operating elements- See 5.23.3 Power-saving mode (Standby) chapter.
Pulsing push-button
TIG automated pulsing (frequency and balance)
Signal light lights up in green: Pulsing (thermal pulsing)/MMA pulse welding
Signal light lights up in red: kHz pulsing (metallurgical pulsing)
Gas test/rinse hose package button
- See 5.8.2 Shielding gas setting chapter
Error/status indicators
Collective interference signal light
Water deficiency signal light (welding torch cooling)
Excess temperature signal light
S
safety sign signal light
Display switching button
Material thickness display
VOLT Welding voltage display
JOB JOB number display
PROG Program number display
Welding parameter setting rotary dial
Setting currents, times and parameters.
Welding data display (3-digit)
Displays the welding parameters and the corresponding values
Signal light Status display
After each completed welding task, the last values used in the welding process for the
welding current and welding voltage are shown on the displays, and the signal light will
be on
Function sequence (see next chapter)
Machine control (Mode RC - off)
