5.12

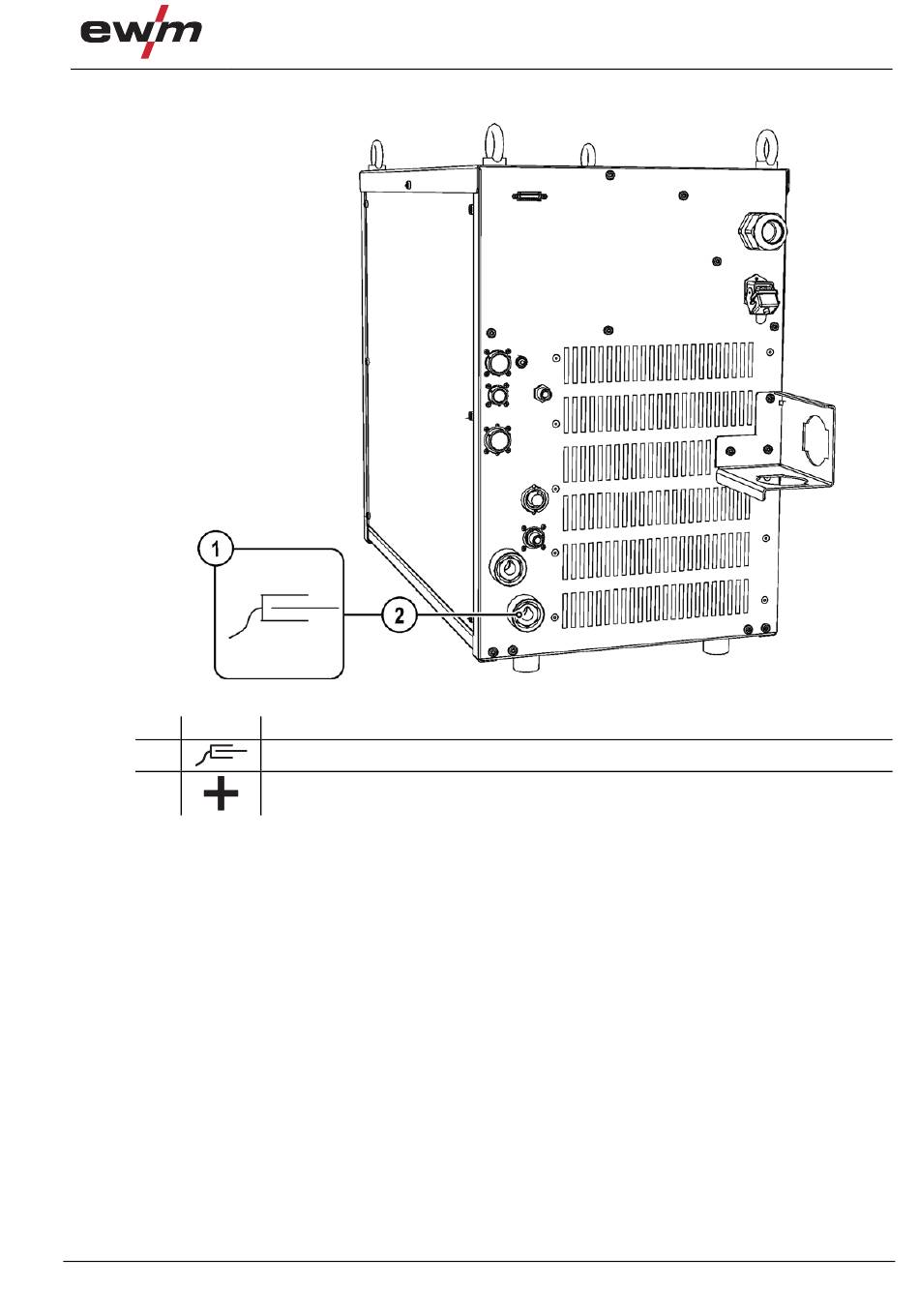

Connection for workpiece lead
Item Symbol
1
2
•
Insert cable plug on the workpiece lead into the connection socket for workpiece lead and lock by
turning to the right.
099-000141-EW501
12.01.2016
Description
0
Workpiece
Connection socket, "+" welding current
Workpiece connection
Design and function
Figure 5-11
Connection for workpiece lead
41
