5.16.1 Welding task selection

5.16.1.1 Selecting or defining a new job

Option 1: Select job from existing job reference list
To do this, the job overview (see Appendix 2) is used as a reference for determining the welding task.
It is also possible to use the "Job list" menu option on the M3.40 power source control to determine the
relevant job number according to the basic parameters (see Appendix 1: "Job organisation function
sequence").
Defining a new job
Operating
element
The job number is selected and changed by the robot control via robot interface
RINTX11 or BUSINTX12.
099-005366-EW501
31.07.2014

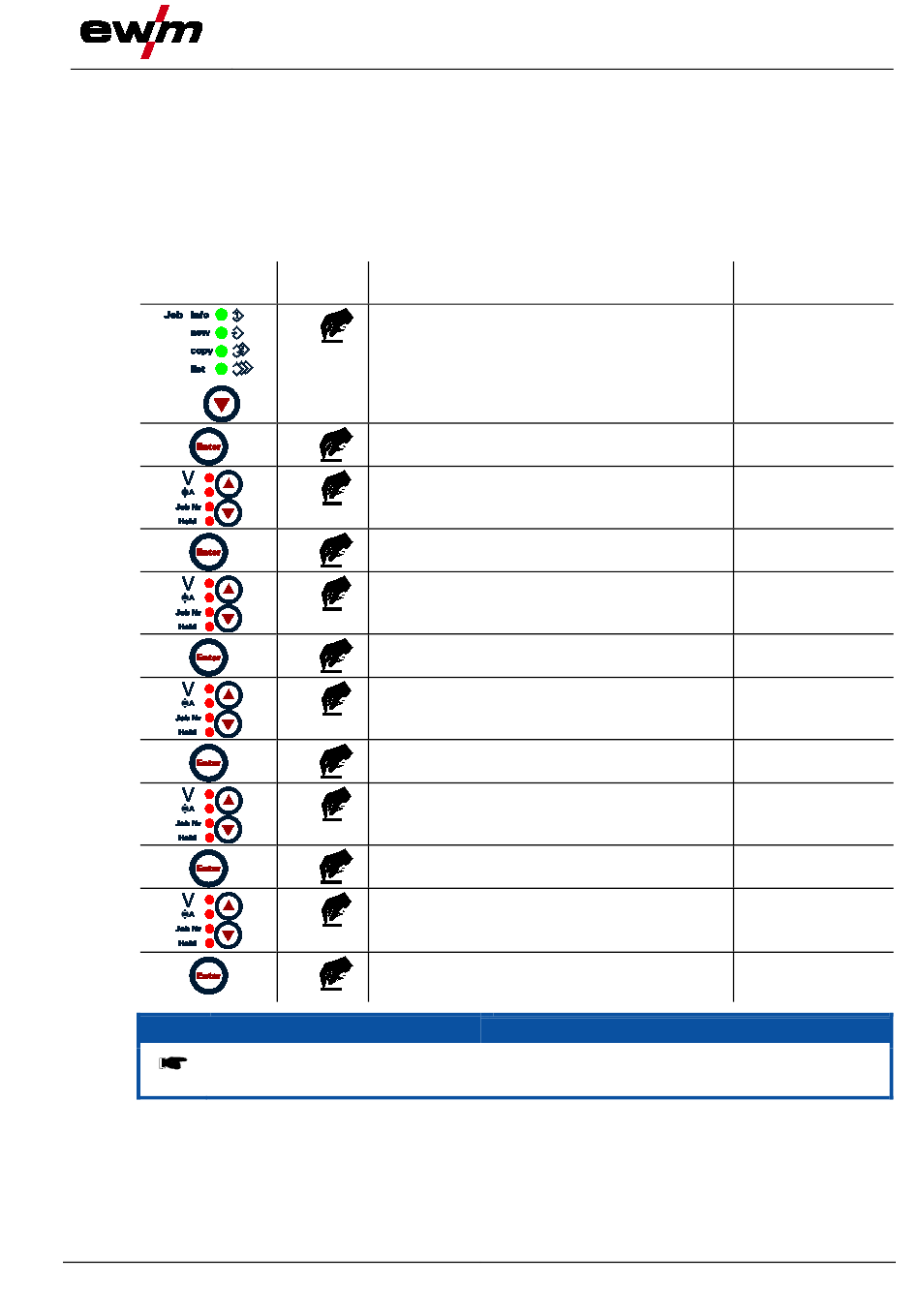

Action Result
Select "Job new"
X x The signal light displays the selection.
Select "Welding process"
1 x
Select "Welding process"
n x
Select "Material type"
1 x
Select "Material type"
n x
Select "Wire diameter"
1 x
Select "Wire diameter"
n x
Select "Gas type"
1 x
Select "Gas type"
n x
Select "Job number"
1 x
Select "Job number"
Search for job number for selected welding task:
n x
Jobs 129 to 256 (free memory space)
Save job number
1 x Save selected job number in the free memory
Design and function
Definition of MIG/MAG welding tasks
NOTE
Display (example)
Verf. : MIG
Verf. : MIG
Verf. : MIG
Material: xxxxx
Material: xxxxx
Draht : xxxxxx
Draht : xxxxxx
Gas-Art : xxxxxx
Gas-Art : xxxxxx
Job-Nr. : xxx
Job-Nr. : xxx
