Machine Control (Mode Rc - Off) - EWM Tetrix 352 Synergic Operating Instructions Manual

Machine description – quick overview

Machine control (Mode RC - off)

4.4 Machine control (Mode RC - off)
T 3.27
1,0
1,6
2,0
2,4
3,2
4,0
>
AMP
sec
kHz
%
CrNi
Fe/St
Cu
CuZn
Spez
Item Symbol
1
2
3
4
24
Puls
Automatic
sec
kHz
2 6
000
11
3 4
Description 0
"Welding process" button
MMA welding, lights up in green / arcforce setting, lights up in red
TIG synergic welding (synergic parameter setting)
TIG manual welding (manual parameter setting)
"Tungsten electrode diameter"/ "Ignition optimisation" key button
 1,0mm,  1,6mm,  2,0mm,  2,4mm,  3,2mm,  4,0mm or greater.
Optimum ignition and stabilisation of the arc. The adjustable welding current is limited
to the maximum permissible welding current of the tungsten electrode.
"Select material type" button
CrNi Chrome nickel alloys
FeSt Iron and steel alloys
Cu Copper or copper alloys (bronzes)
CuZn Copper zinc alloys (brass)
Spez Special (for special custom-built tasks)
Select seam type button
Fillet weld
Butt joint
Fillet weld - lap joint
Vertical-down
sec
7
sec
AMP%
13
sec
000
HOLD
12
Synergic
11
10

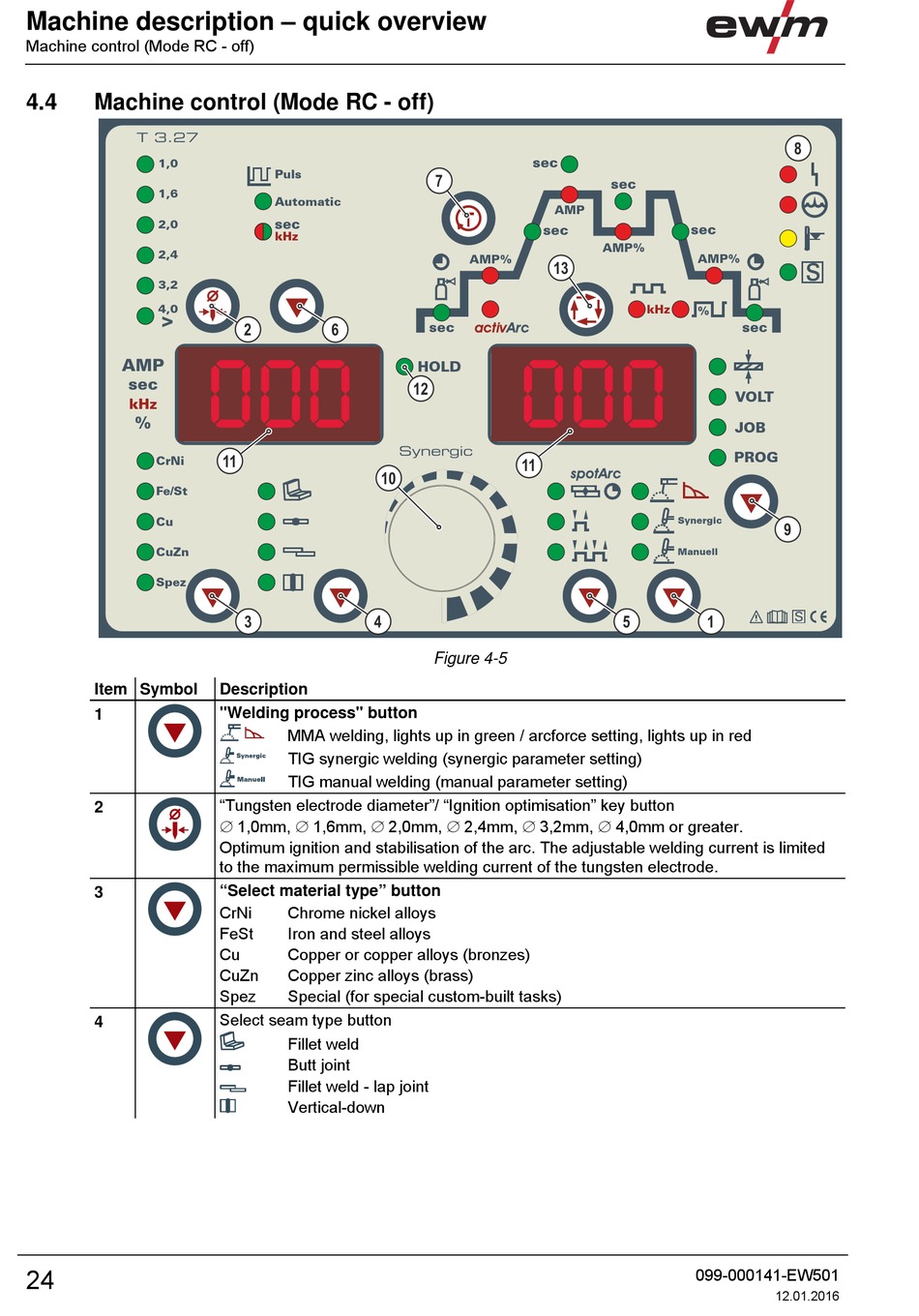

Figure 4-5
sec
AMP
sec
AMP%
AMP%
kHz
%
Synergic
Manuell
5 1
099-000141-EW501
8
S
sec
VOLT
JOB
PROG
9
S
12.01.2016
