5.10

Connect the cooling unit to the power source

Please note the relevant documentation of the accessory components.
Item Symbol
1
2
3
• Insert and lock the 8-pole control lead plug on the cooling unit into the 8-pole connection socket on the
welding machine.
• Insert and lock the 5-pole supply plug on the cooling unit into the 5-pole connection socket on the
welding machine.
099-000141-EW501
12.01.2016
Description 0
5-pole connection socket
Cooling unit voltage supply
8-pole connection socket
Cooling unit control lead
Cooling module
Design and function
Connect the cooling unit to the power source

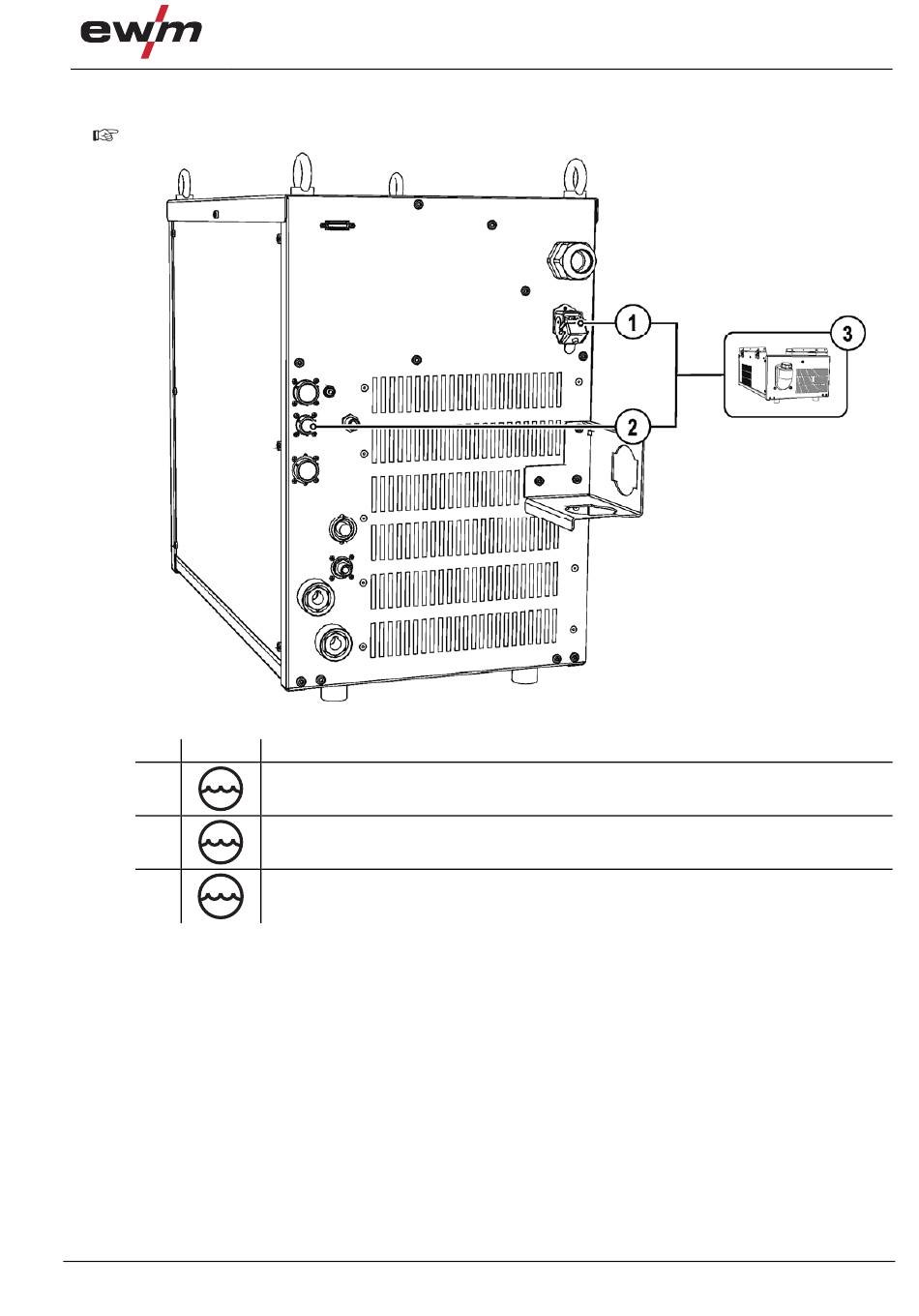

Figure 5-7
37
