1A-10 Engine General Information and Diagnosis:
Self-Diagnostic System Description
The self-diagnostic system alerts the operator when an abnormality occurs in a signal from a sensor, or switch, etc.
When the system is activated, the "CHECK ENGINE" lamp flashes (lights intermittently) according to each code
pattern, along with a buzzer sound.
When the engine is running, the buzzer sounds a series of short (0.2 sec.) beeps. When the engine is not running, the
buzzer sounds according to each code pattern, but not simultaneously with the flashing lamp. The buzzer sound can
be temporally canceled by pushing the ignition key in.
Priority / Code / Pattern for Self-Diagnostic System Operation
0: OFF, 1: ON
Priority Failed Item
1 MAP sensor 1
2 Cylinder temp. sensor
3 IAT sensor
4 CKP sensor
5 CMP sensor
6 Air intake system
7 MAP sensor 2
8 Exhaust manifold temp. sensor
9 Fuel injector
10 Throttle position sensor
11 Shift position sensor
12 Neutral switch

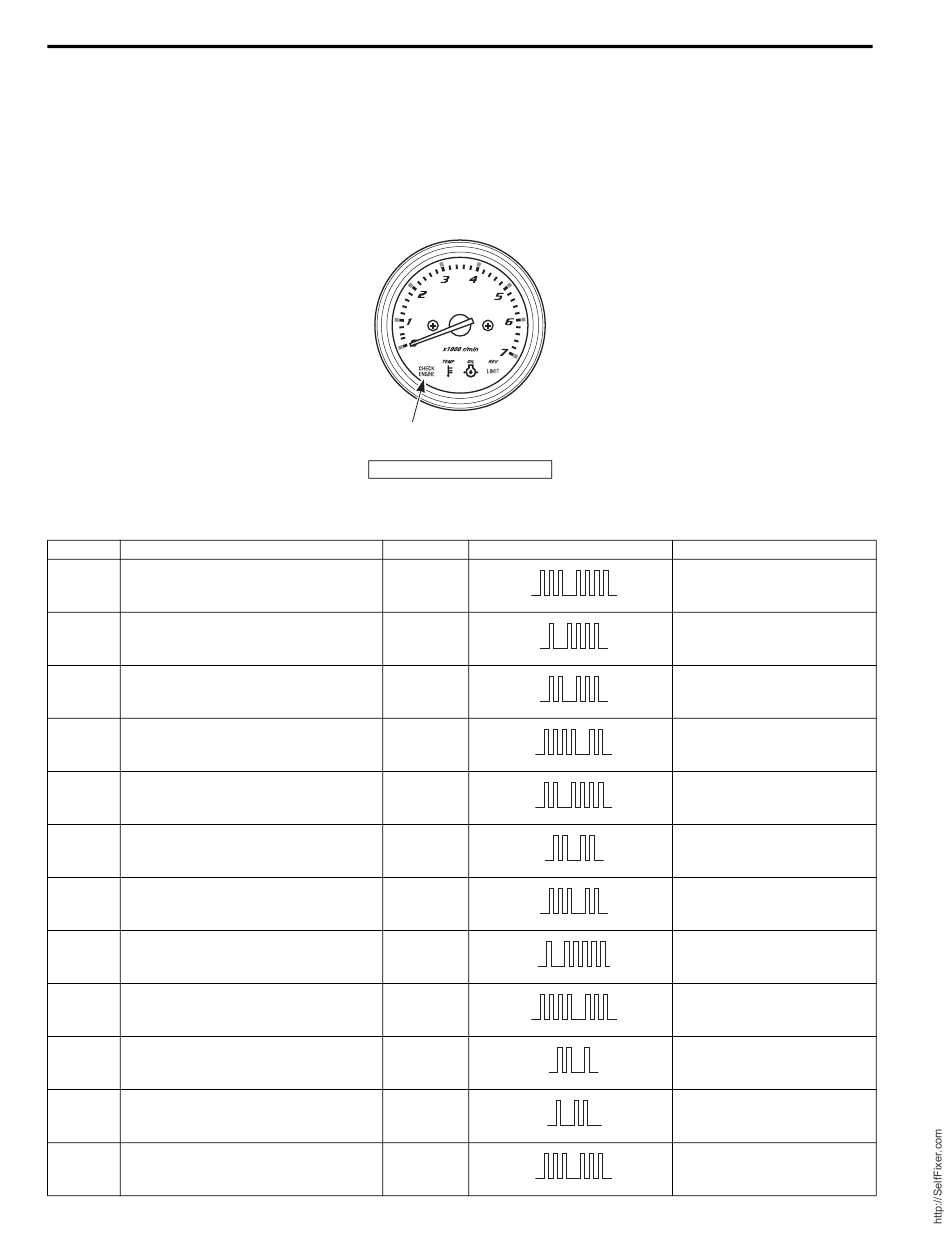

Monitor-Tachometer
"A"
"A": "CHECK ENGINE" lamp
Code Lamp Flashing Pattern
1
3 – 4
0
1
1 – 4
0
1
2 – 3
0
1
4 – 2
0
1
2 – 4
0
1
2 – 2
0
1
3 – 2
0
1
1 – 5
0
1
4 – 3
0
1
2 – 1
0
1
1 – 2
0
1
3 – 3
0
