Suzuki DF70A Service Manual page 336

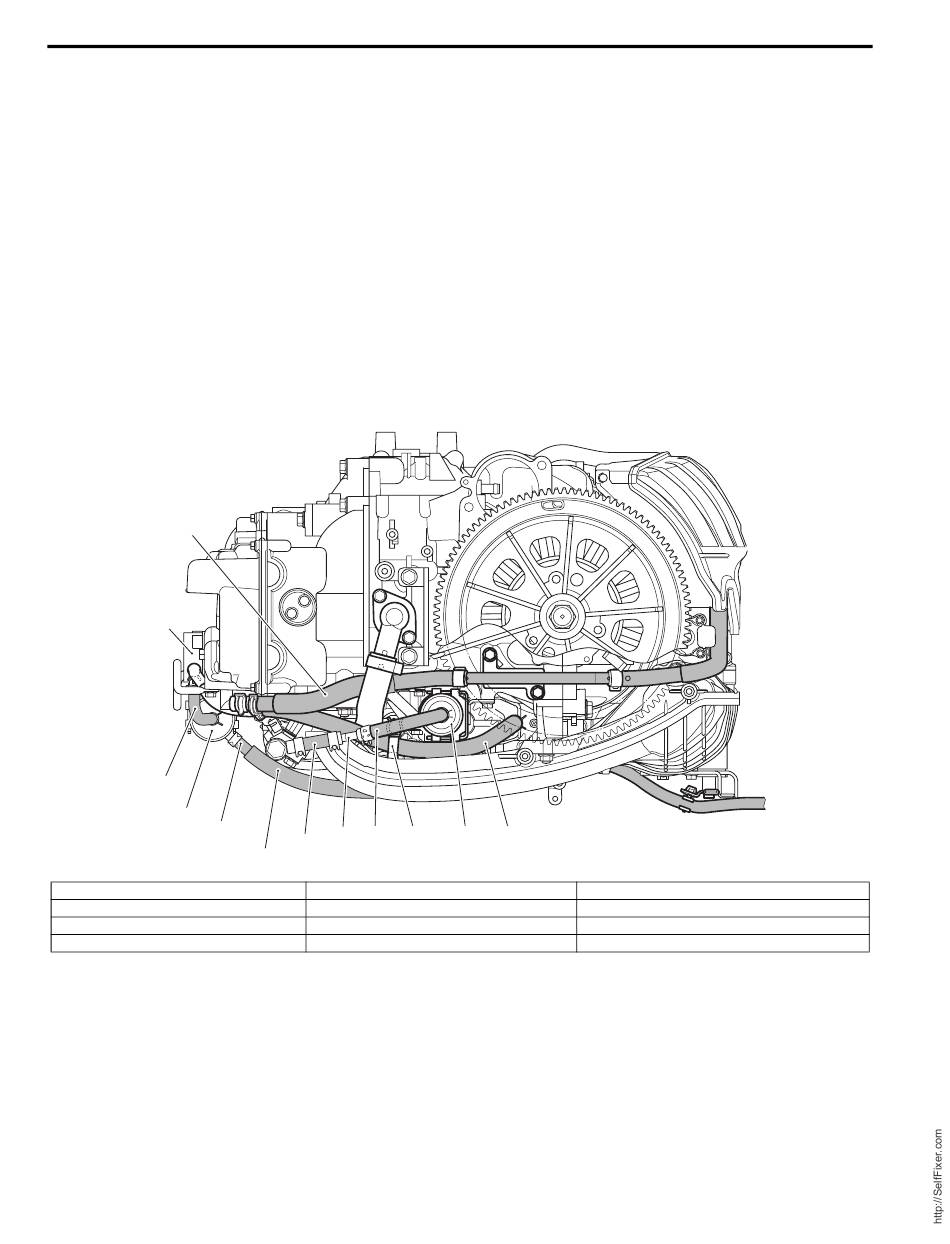

4B-3 Fuel / Water Hose Routing:
6
5
4
3
1
1. Fuel hose (Joint to low pressure fuel filter)
2. Fuel hose protector
3. Low pressure fuel filter
4. Fuel hose (Fuel filter to fuel pump)
9 12
10
11
2
5. Low pressure fuel pump
6. Breather hose/protector
7. Fuel hose (Fuel pump to fuel vapor separator)
8. High pressure fuel filter
8 7
9. Fuel hose (High pressure fuel filter to 3-way joint)
10. 3-way joint
11. Fuel hose (3-way joint to fuel delivery pipe)
12. Clip
I9J011420003-01
