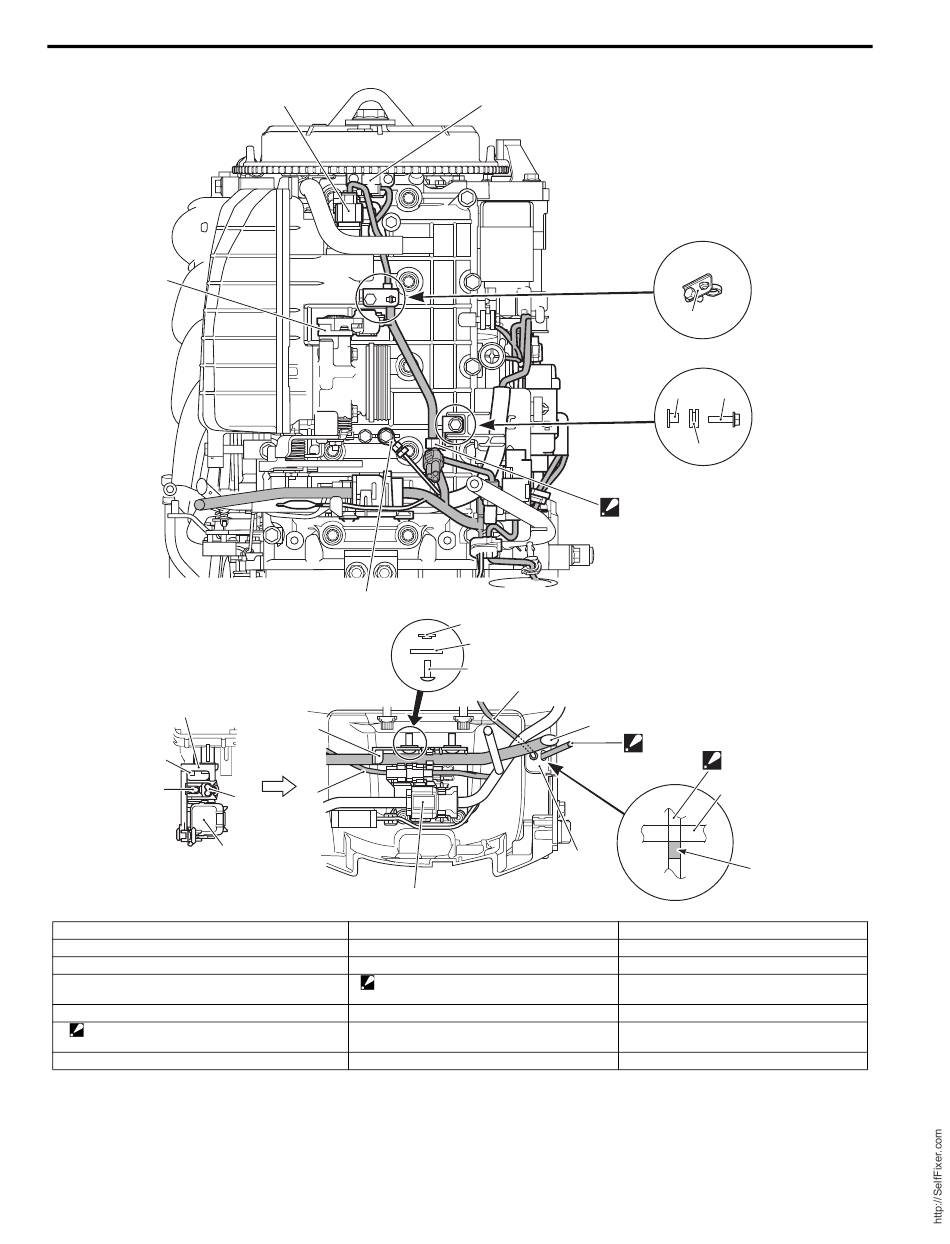

4A-8 Wire Routing:
4
18
10
17
15
1. CKP sensor
2. IAC valve
3. Harness clamp
4. TPS
5. PTT relay GND lead wire
6. Clamp
: Bind CKP sensor lead wire and main harness.
7. Bolt
2
5
18
14
16
15
8. Cushion
9. Washer
10. Battery cable
11. PTT cable
: Set the taping position "a" as shown.
12. Grommet
13. Trim sensor lead wire
14. Neutral switch and shift sensor lead wire
1
6
21
20
19
13
10
12
3
9 7
8
11
11
12
" a "
I9J011410007-05
15. Remote control harness connector
16. 3-pin connector
17. 2-pin connector
18. Cable holder
19. Screw
20. Holder
21. Washer
