Suzuki DF70A Service Manual page 331

13
12
11
10

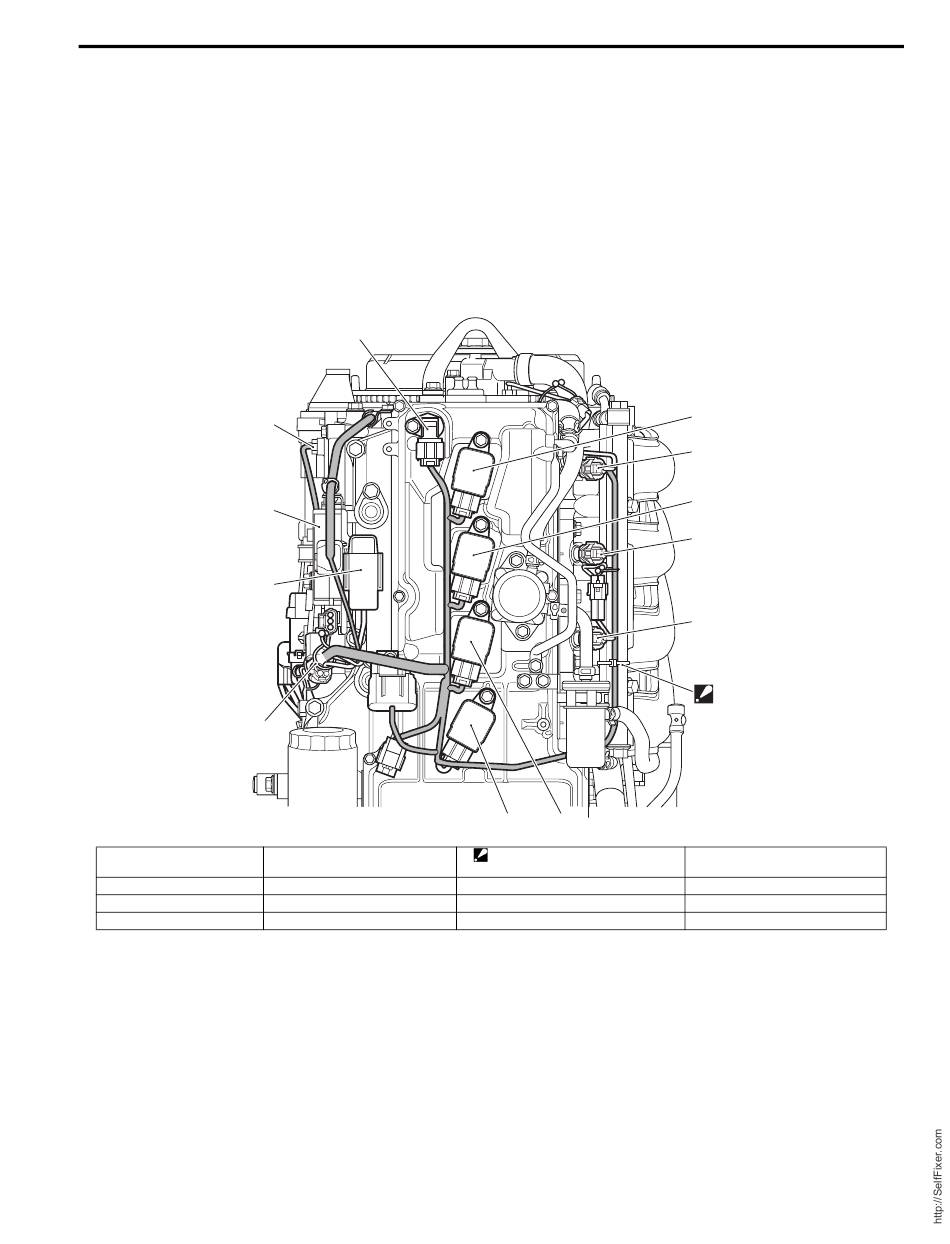

1. CMP sensor 5. No.4 Ign. coil
2. No.1 Ign. coil 6. No.1 fuel injector
3. No.2 Ign. coil 7. No.2 fuel injector
4. No.3 Ign. coil 8. No.3 fuel injector
1
5
9. Clamp
: Fix the harness with clamp.
10. Clamp
11. Main harness capacitor
12. Rectifier/Regulator
2
6
3
7
8
9
4
13. Ex. mani. temp. sensor
Wire Routing: 4A-7
