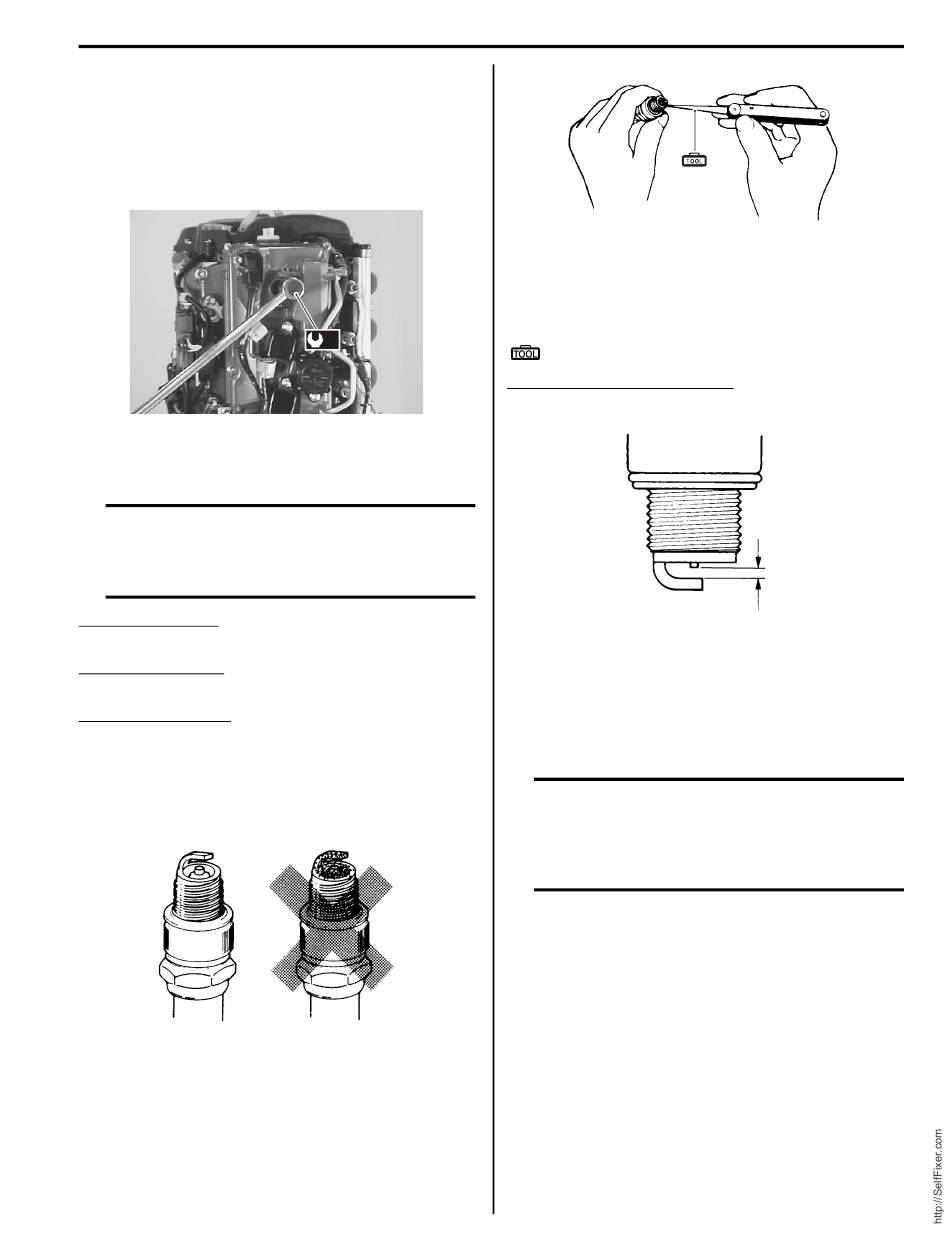

Suzuki DF70A Service Manual page 33

Installation
Installation is reverse order of removal.
Pay attention to the following:
• Tighten the spark plug to specified torque.
Tightening torque
Spark plug (a): 18 N·m (1.8 kgf-m, 13 lbf-ft)
Spark Plug Inspection and Cleaning
CAUTION
Only resistor (R) type spark plugs must be
used with this engine. Using a non-resistor
spark plug will cause ignition and fuel
injection system malfunctions.
Inspect spark plug
Every 100 hours (6 months)
Replace spark plug
Every 200 hours (12 months)
Standard spark plug
NGK DCPR6E
Carbon Deposits
Inspect for carbon deposits on spark plug base.
If carbon is present, remove it with a spark plug cleaning
machine or by carefully using a pointed tool.
(a)
I9J011020047-01
Z9J0110206005
I9J011020005-01
Maintenance and Tune-Up:
Spark Plug Gap
Measure spark plug gap with a thickness gauge. Adjust
to within specified range if gap is out of specification.
Special tool
: 09900–20803 (Thickness gauge)
Spark plug gap "a" (Standard)
0.8 – 0.9 mm (0.031 – 0.035 in.)
Condition of Electrodes
Inspect electrode for a worn or burnt condition.
If it is extremely worn or burnt, replace spark plug.
Also, be sure to replace spark plug if it has a broken
insulator, damaged thread, etc.
CAUTION
Confirm the thread size and reach when
replacing the plug. If the reach is too short,
carbon will be deposited on the threaded
portion of the plug hole resulting in possible
engine damage.
0B-7
(A)
I9J011020006-01
" a "
I9J011020007-01
