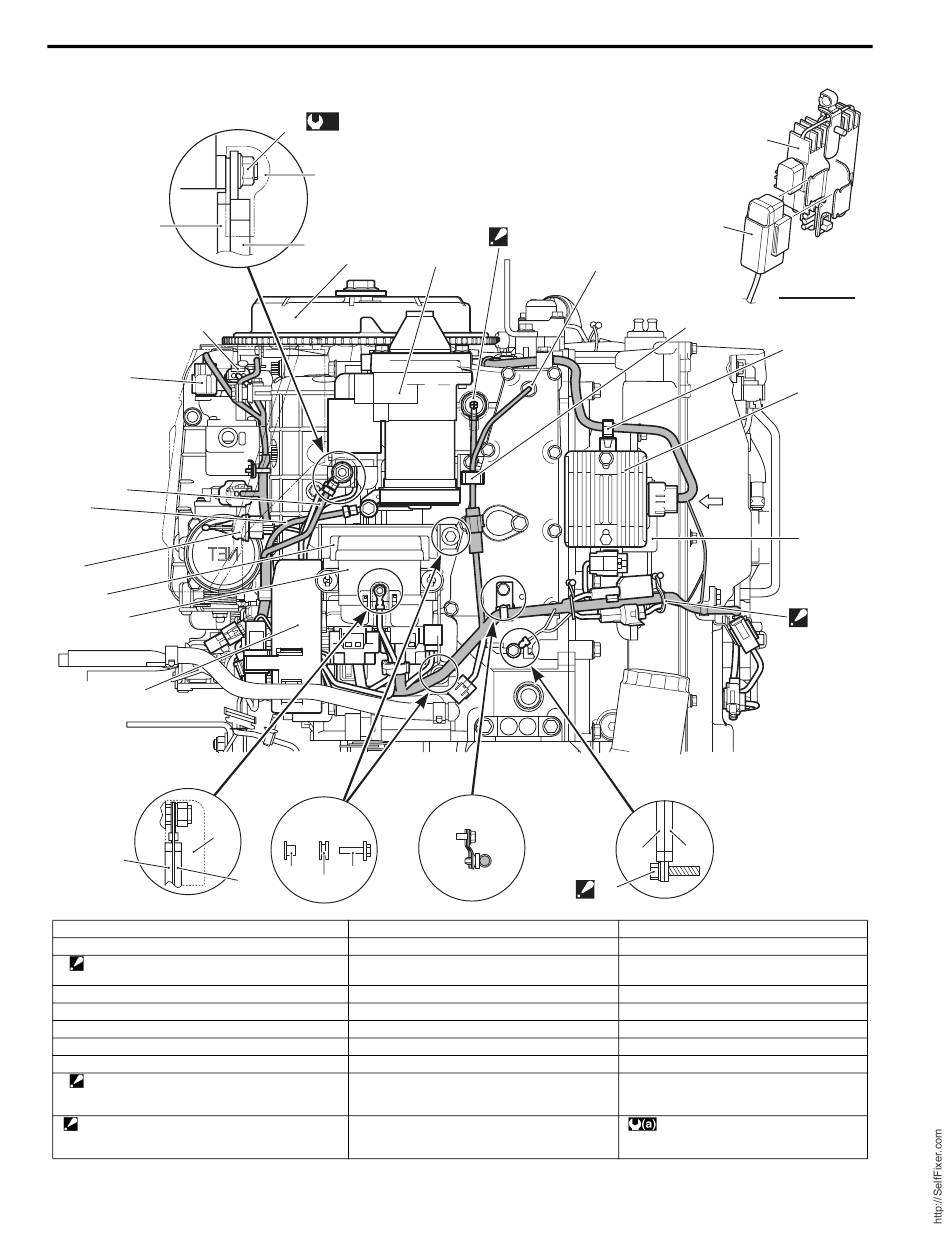

4A-4 Wire Routing:
29
26
25
23
24
22
21
19
20
16
18
1. Flywheel
2. Starter motor
3. Oil pressure switch
: Cover the oil pressure switch with cap.
4. Ex. mani. temp. sensor
5. Rectifier/Regulator
6. Main harness capacitor
7. Clamp
8. Clamp
9. Clamp
: Bind the main harness, rectifier lead wire and
capacitor harness.
10. Bolt
: Tighten bolt with harness GND lead and
Rectifier GND lead wire.
28
(a)
27
23
1
15 13
17
14
11. Rectifier/Regulator GND lead wire
12. Main harness GND lead wire
13. Bolt
14. Cushion
15. Washer
16. Cap
17. Main harness (Red)
18. PTT relay lead wire (Red)
19. Fuse box
20. Electric parts holder
3
2
4
10
5
6
View "A"
7
8
5
"A"
6
12 11
I9J011410003-03
21. ECM
22. IAT sensor
23. Battery cable (+)
24. Battery cable (–)
25. IAC valve
26. MAP sensor
27. Cap
28. Nut
29. Main harness (Red)
: 8.6 N⋅m (0.86 kgf-m, 6.2 lbf-ft)
9
