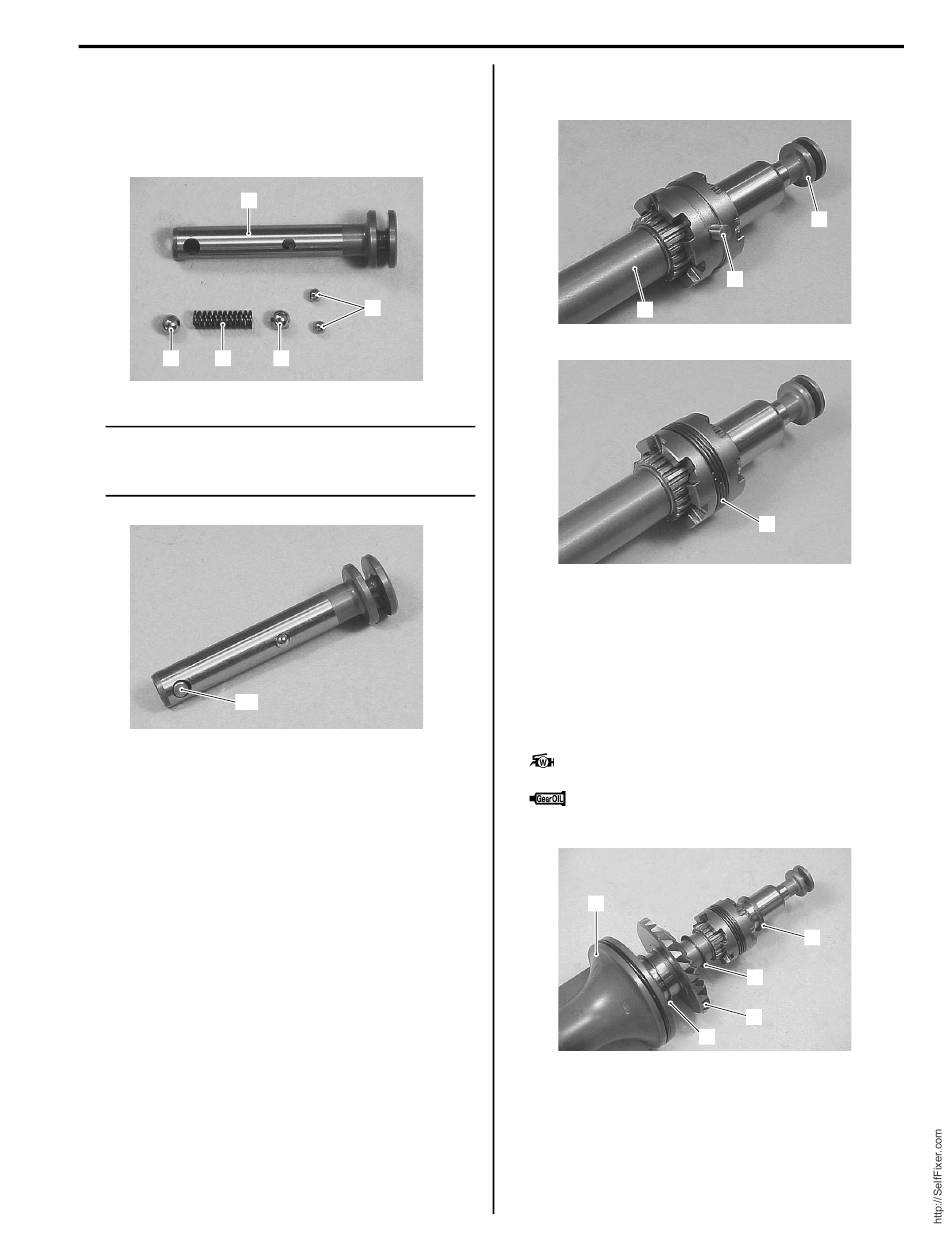

• Insert two small detent balls (3), large detent ball (4),
detent spring (5) and large detent ball (6) into
connector pin (7). Then depress detent ball (6) and
temporarily insert stopper pin "a" into dog pin hole of
connector pin, as shown in figure.
7
6 5
NOTE
Temporarily insert a water pump case dowel
pin into the connector pin to prevent the
detent ball from falling out.
" a "
• Insert the connector pin (7) (with detent balls) into
propeller shaft (1).
• Align the holes in the shifter dog and connector pin
and then slide the dog pin (8) through both dog and
connector pin. (save the temporarily installed dowel
pin pushed out as the dog pin is inserted.)
3
4
I9J011310087-01
I9J011310088-01
Right Hand Rotation Unit:
• Install the dog pin retaining spring (9), ensuring that it
fits snugly into the groove on the dog shifter.
1
Propeller Shaft / Bearing Housing
• Place the forward thrust washer (1) and reverse thrust
washer (2) on the propeller shaft.
• Install back-up shim (3) and reverse gear (4) to
propeller shaft bearing housing (5).
• Slide propeller shaft into reverse gear and propeller
shaft bearing housing.
: Grease 99000–25161 (SUZUKI Water
Resistant Grease (250 g))
: Gear Oil 99000–22540 (SUZUKI Outboard
Motor Gear Oil)
5
3A-19
7
8
I9J011310089-01
9
I9J011310090-01
1
2
4
3
I9J011310091-02
