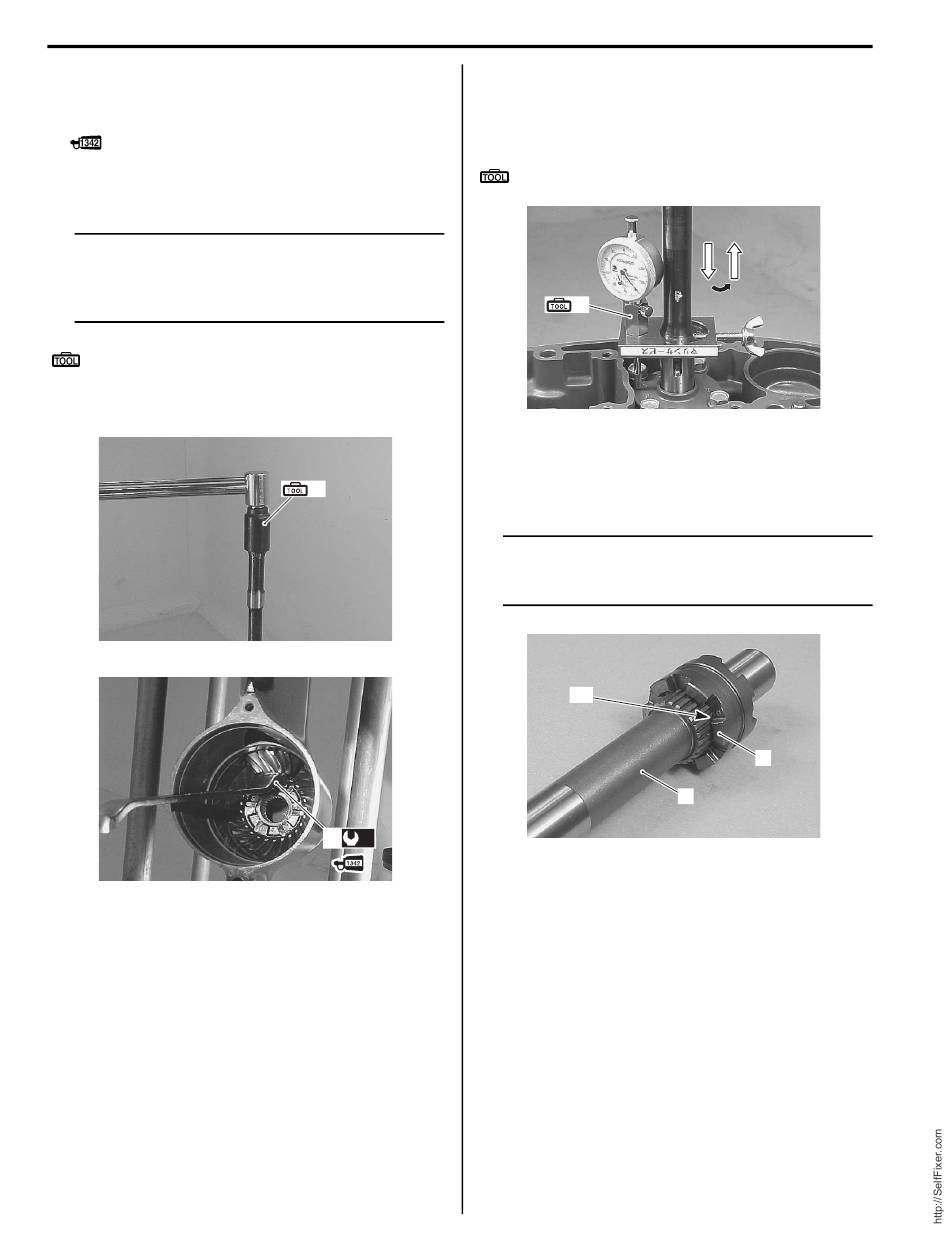

3A-18 Right Hand Rotation Unit:
Pinion Nut
• Apply thread lock 1342 to the threads of pinion nut (1)
before threading it onto driveshaft.
: Thread lock cement 99000–32050 (SUZUKI
Thread Lock 1342 (50 g))
• Tighten pinion nut to specified torque.
NOTE
It is recommended the original pinion nut be
used for the purposes of shimming during
repair. A new pinion nut should be used on
final assembly.
Special tool
(A): 09921–28710 (Driveshaft holder)
Tightening torque
Pinion nut (a): 120 N·m (12.0 kgf-m, 86.8 lbf-ft)
Checking Driveshaft Thrust Play
Before installing reverse gear, driveshaft thrust play
should checked. Refer to "Lower Unit Gears - Shimming
and Adjustment" (Page 3A-24).
Special tool
Propeller Shaft
• Slide the clutch dog shifter (2) onto the propeller shaft
(A)
I9J011310083-02
1
(a)
I9J011310084-02
(A): 09951–09530 (Gear adjusting gauge)
(A)
(1).
NOTE
The side of the clutch dog shifter marked
with the letter "R" must face towards reverse
gear.
"R"
I9J011310085-01
2
1
I9J011310086-01
