Wire Color Symbols
There are two kinds of colored wire used in this product.
One is single colored wire and the other is dual colored (striped) wire.
The single colored wire uses only one color symbol. example: B (Black).
The dual colored wire uses two color symbols. example: Bl/B.
The first symbol represents the base color of the wire and the second symbol represents the color of the stripe.
Example: Bl/B (Blue with Black stripe).
Symbol
B Black
Bl Blue
Br Brown
Dg Dark green
G Green
Gr Gray
Lbl Light blue

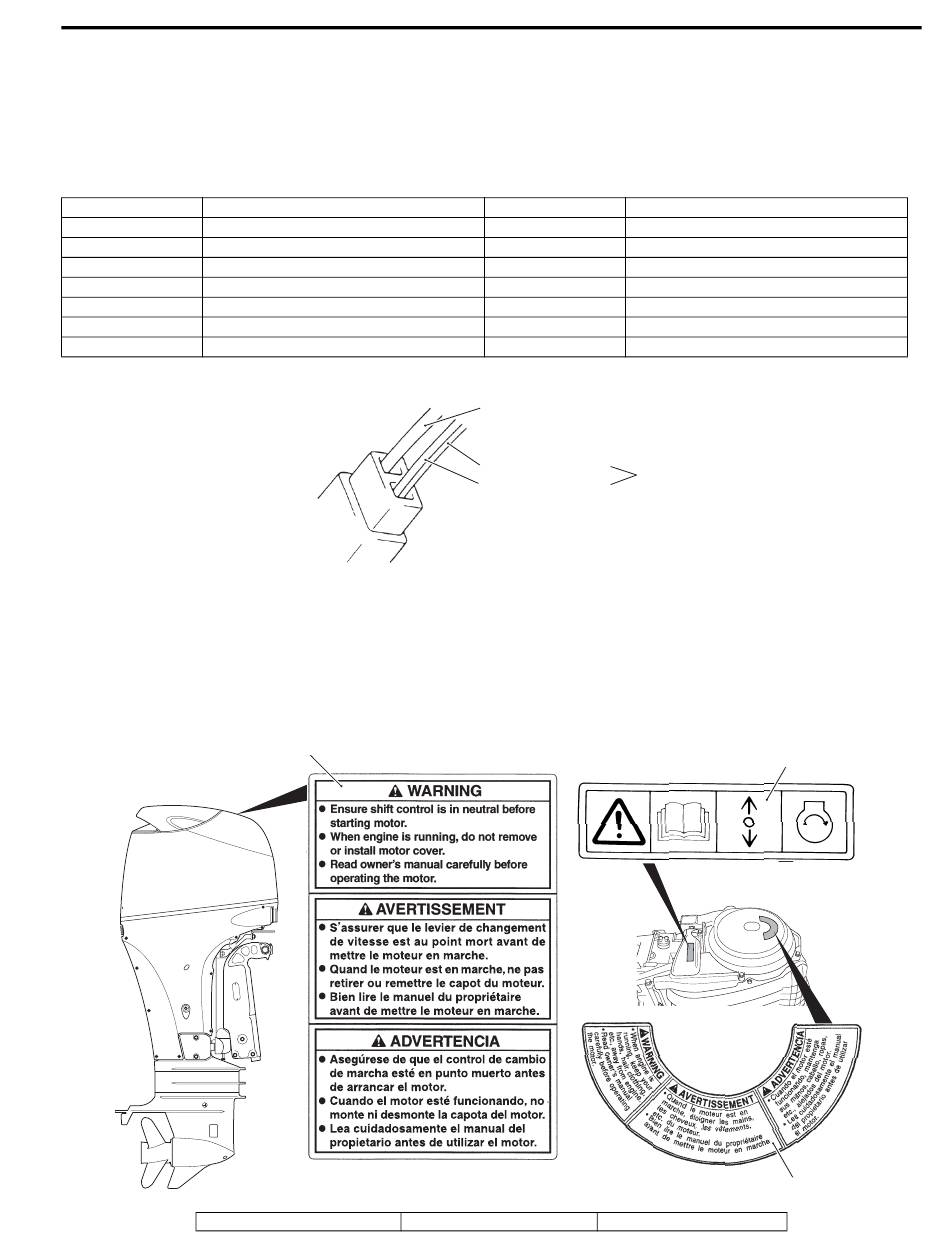

Warning, Caution and Information Label Locations
The figure shows main labels among others that are attached to outboard motor.
When servicing outboard motor, refer to WARNING / CAUTION instructions printed on labels.
If any WARNING / CAUTION label is found stained or damage, clean or replace it as necessary.
Do not reuse a label after it has been removed. Always use new label.
1. Label, engine cover
Wire color
1
2. Label, mag cover
Symbol
Lg Light green
O Orange
P Pink
R Red
V Violet
W White
Y Yellow
B (Base Color)
Bl (Blue Color)
Bl/B
Black (Stripe Color)
